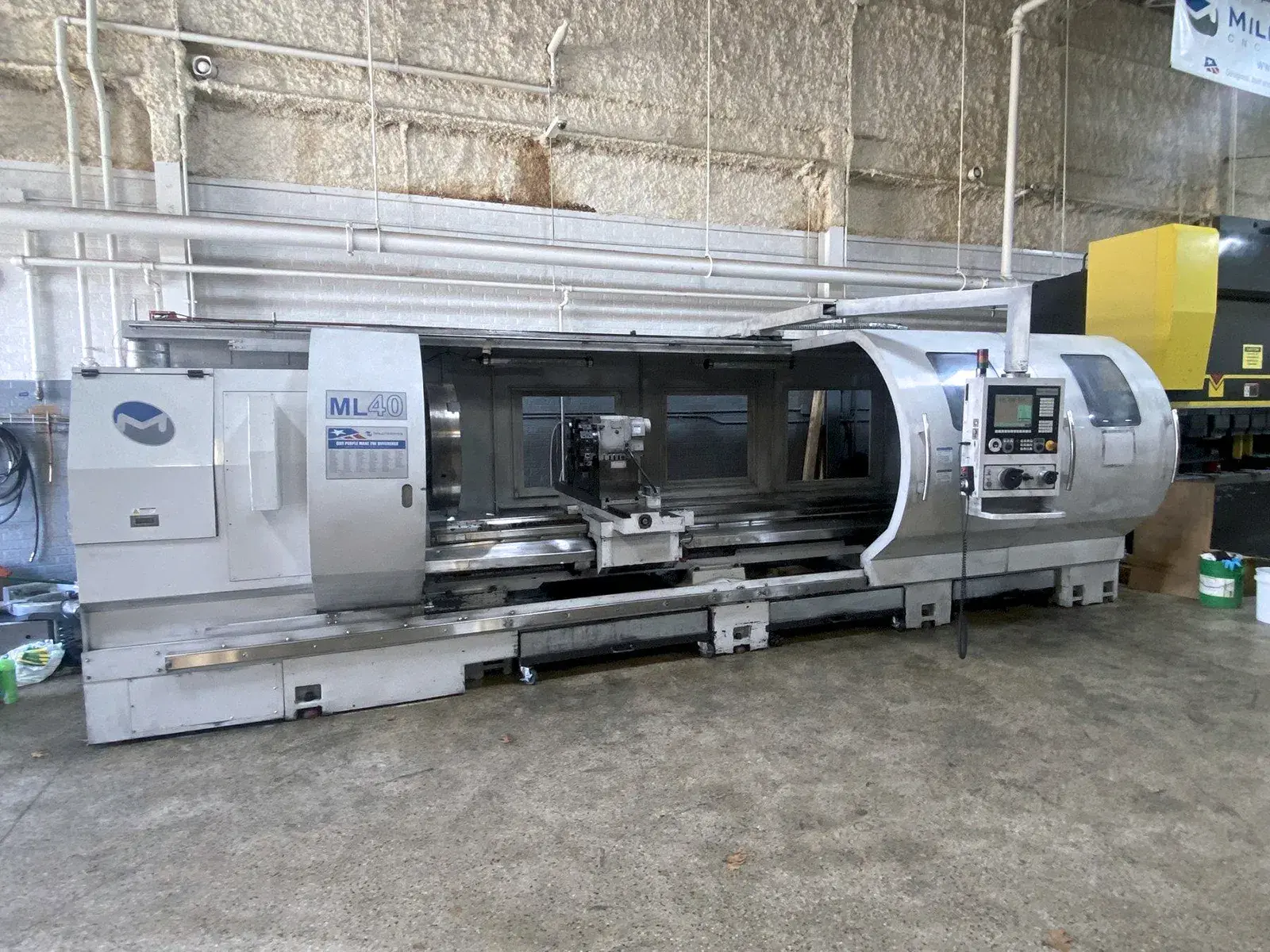

USED 2010 MILLTRONICS ML40/160
Overview
No description available
Specs
Swing over Bed: 39.7"
Swing Over Gap: 50"
Swing over cross slide: 26.6"
Gap distance: 14.6"
Center Distance: 160"
X-Axis Travel: 21"
Z-Axis Travel: 160"
Spindle Bore: 14"
Spindle Nose: A2-20
Spindle speed range low: 10 to 375 rpm
Spindle speed range high: 10 to 500 rpm
2-Speed AC Spindle motor (1 min / 30 min): 35/25 HP

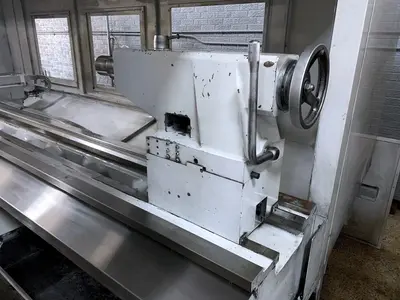

Tailstock Quill Travel: 9"
Tailstock Quill Diameter: 4.92"
Tailstock Quill Taper: MT6
Automatic turret: 12 Tools
Tooling size: 1"
Tool Selection: bi-directional
X,Z axis rapid traverse rate: 500 ipm
Max Cutting Feed Rate: 100 ipm
Machine height: 90"
Floor Space: 272" L x 110" D
Machine weight, approx: 29,000 lbs.
Equipped With

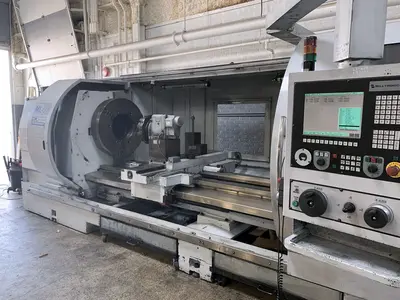

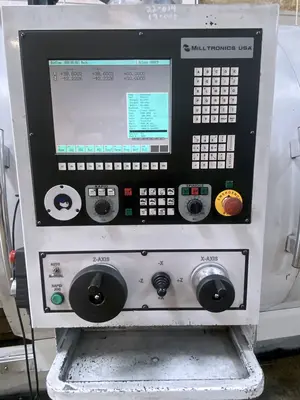

** Not presently equipped with coolant pump or chiller** Milltronics 7200 Conversational CNC Control
12" LCD Active Matrix Color Display
14” Spindle Bore ($90
000 option back in 2010)

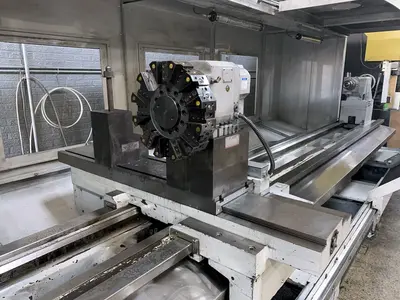

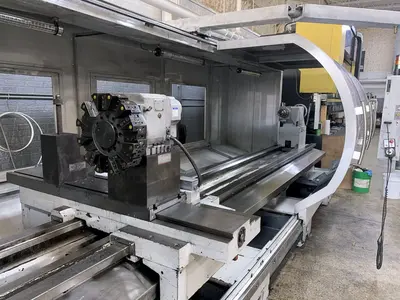

12 Station Front Mount Pragati Turret
Software Package A (Thread Chasing
Constant Surface
Rigid Tap)
High Torque AC Digital Servo Drives
Edit Lockout Key
End of Cycle Light
Work lights
Remote Handwheel
Rear Mounted Chuck Flange with A2-20 mount (same as front)

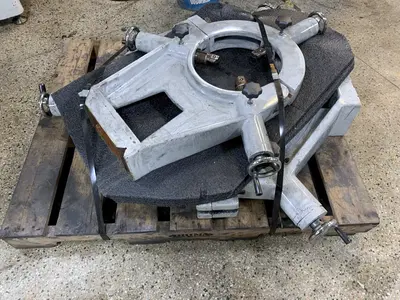

50-300mm Steady Rest
250-500mm Steady Rest
31.5” 3-Jaw Chuck (no jaws)
Live Center
Automatic Metered Lubrication

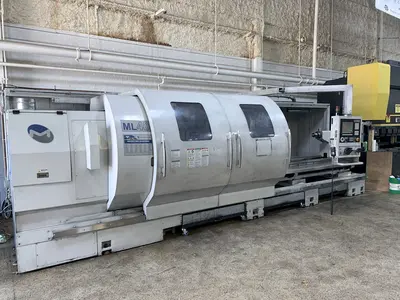

Heavy Duty Metal Enclosure with Sliding Front Door
Chip Drawer Containment System
