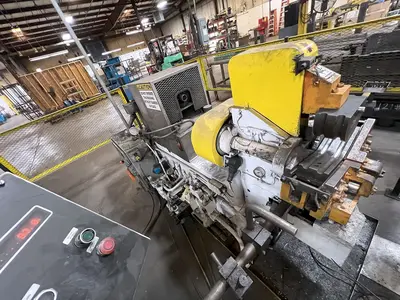

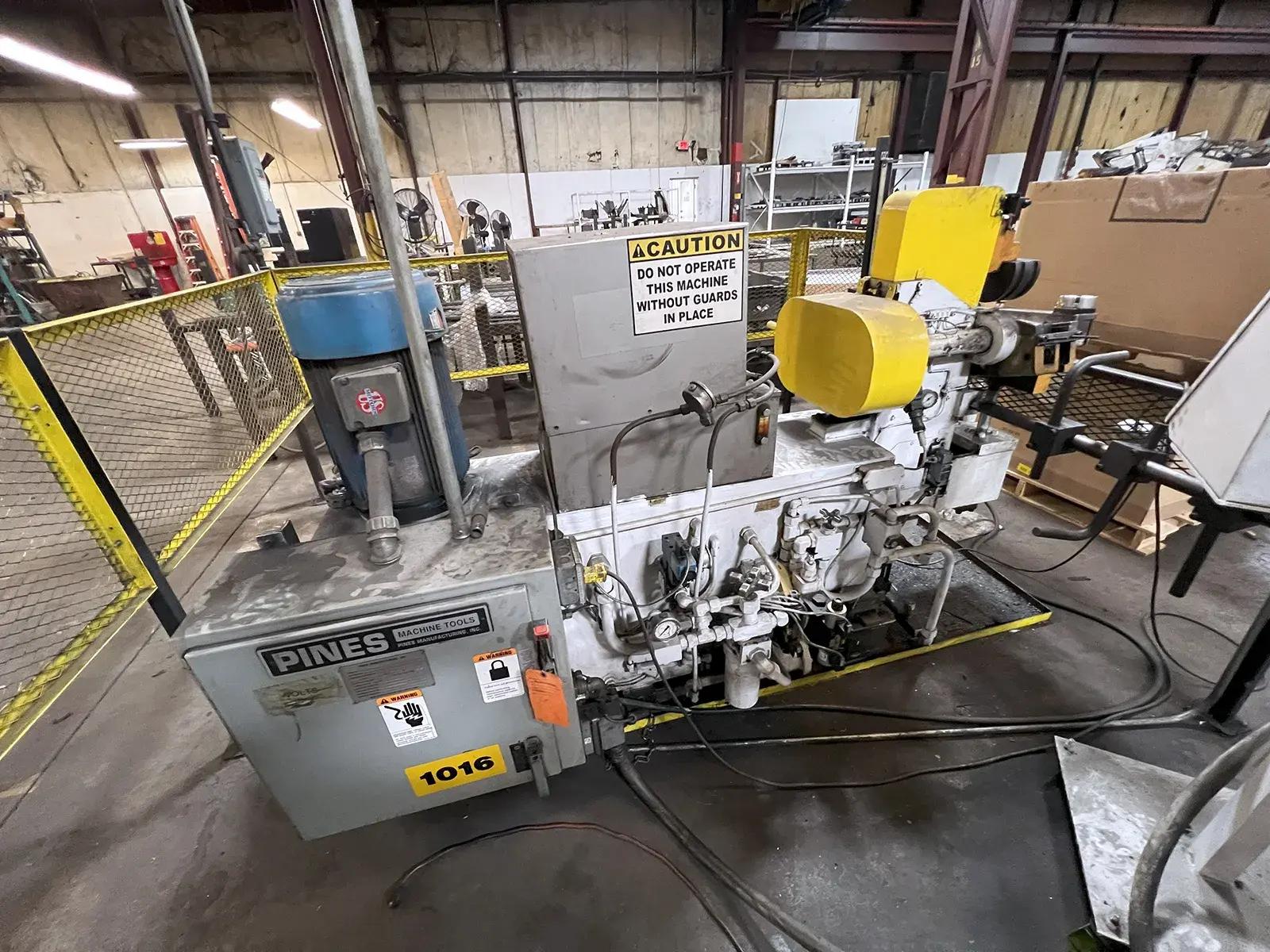

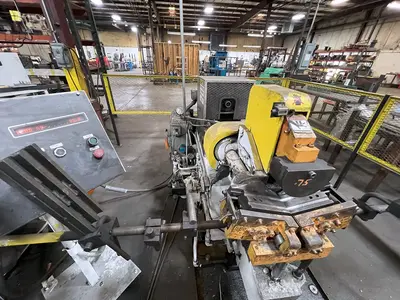

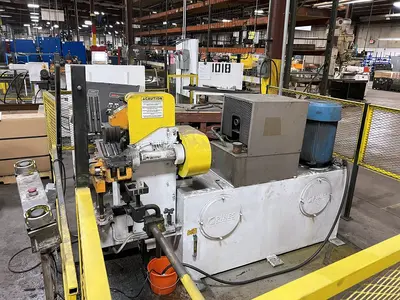

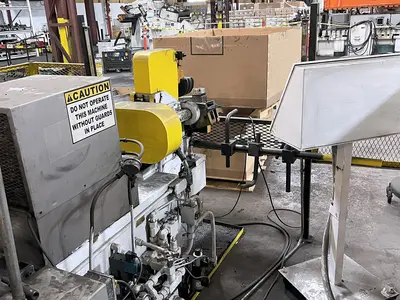

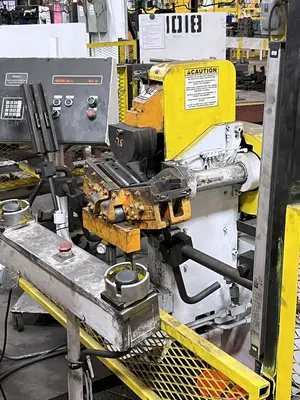

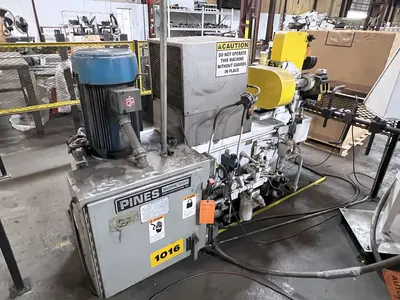

USED 1995 PINES 3T
Overview
Specifications
Steel tube capacity: 1.25" x .065" wall
Round Tubing Mild Steel: Y.P. to 40,000 psi – 1.25” x .065
Round Tubing Non-ferrous: Y.P. to 25,000 psi – 1.25” x .083
Round Tubing Stainless Steel: Y.P. to 60,000 psi – 1.25” x .049
Square Tubing Mild Steel: 1” x .065
Round Bar Mild Steel: ¾”
Square Bar Mild Steel: 9/16”
Maximum section modulus, mild steel: .072
Bending: Bends one tube at a time
Production Capacity: Bends per hour approximate – 1,000 strokes (bends)
Maximum standard radius for 90° bend: 4.5”
Minimum radius to diameter ratio: 2 to 3
Maximum Bend Angle: 140º
Maximum bend angle with special tooling: 165°
Bend arm repeatability: ± ¼°
Motor horsepower: 20HP
Approximate Weight: 4,600 lbs
Overall Height: 60 inches
Working height to dies: 40 inches
Footprint (floor space required): 30 x 80 inches
Weight: 2,900 lbs
Pines Model: 3T vertical hydraulic
Equipped With

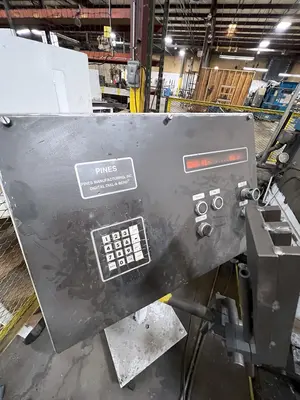

dial -a - bend programable control electrical controls hydraulic system
