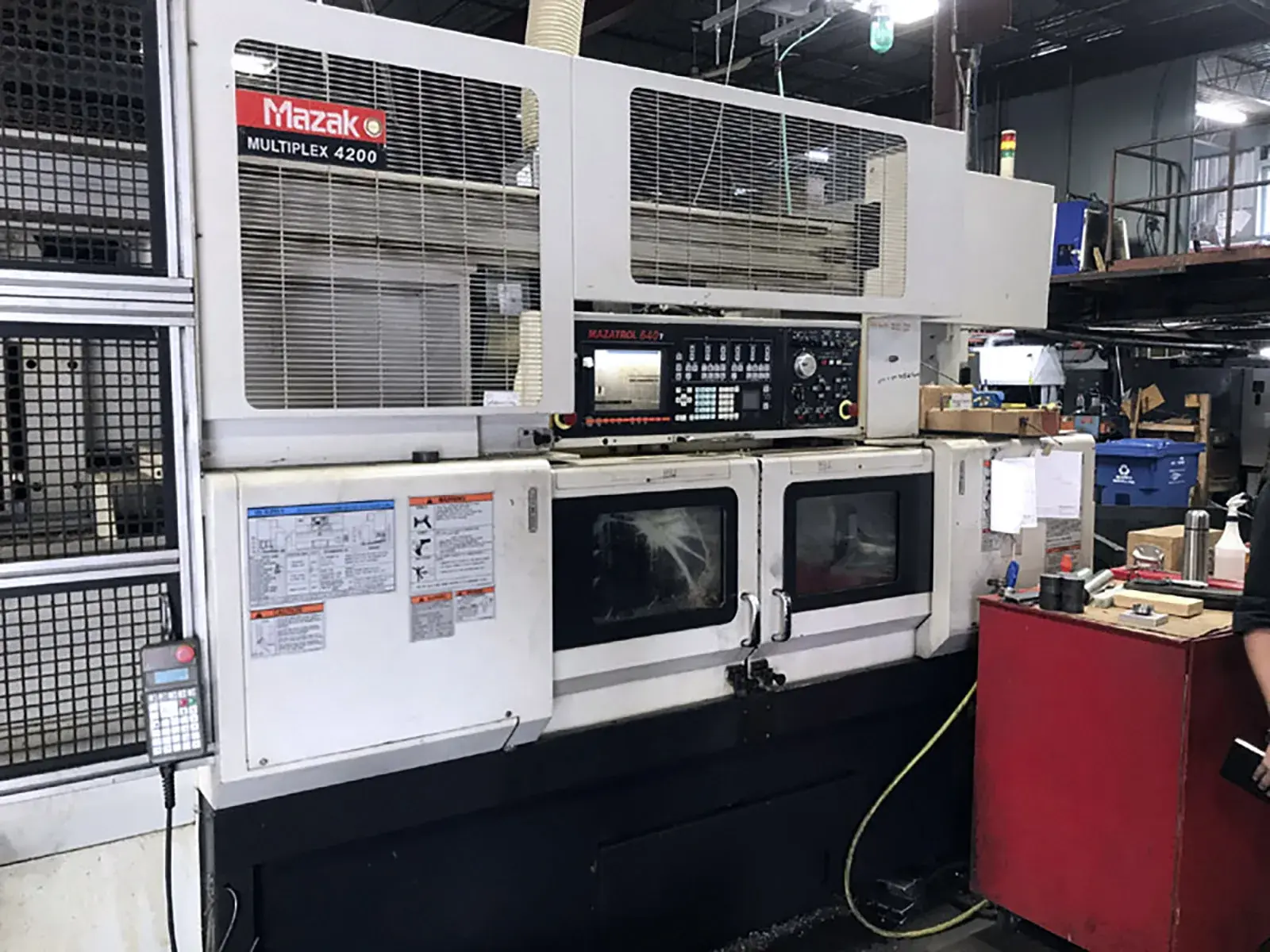

USED 2004 MAZAK MULTIPLEX 4200

Mazatrol Fusion 640T Control| 12.5" Max Swing

Max Swing: 12.5"
Standard Cutting Diameter: 10.24"
Maximum Bar Distance: 2.0"
Maximum Machining Length for Chuckwork: 7.0"
Maximum Machining Length for Shaftwork: 21.0"
Max. (both heads @ home position): 46.85"
Min: 10.15"
Spindle Nose: A2-6
Spindle Bore: 2.4"
Spindle Speed/Ranges: 35-5,000 RPM/1
Spindle Horsepower (Cont/30 Mins): 20/30 HP (A.C.)
Spindle Torque: 258.2 ft.-lbs.
Type of Turrets: Dodecagonal/Drum Non-Lift
Tool Holder Shanks: Modified VDI
Turret Index Time (1-step): 0.2 sec
Total number of tools: 24 (12x2)
Tool Size (Turning & Facing): 1" x 1"
Tool Size (Boring Bar Max. Dia.): 1-1/2"
Travel X-Axis (L&R): 9.06"
Travel Z-Axis (L): 17.25"
(R): 19.37"
Rapid Traverse: X-Axis: 1200 IPM
Z-axis: 1300 IPM
Machine Floor Space w/o Bar Feeder: 81.54" x 140.6" (W x L)
Machine height: 82.3"
Total Power Required: 77.4 KVA
Air Requirements: 71 PSI / 14 CFM
Total Weight: 16,060 lbs

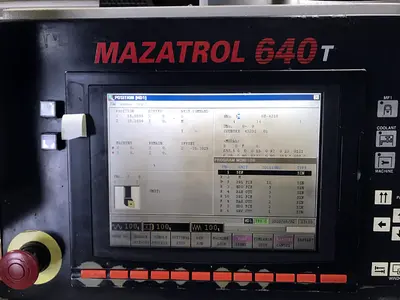

Mazatrol Fusion 640T Control

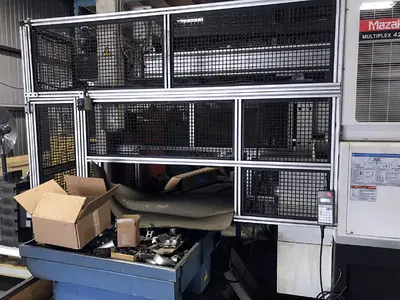

Gantry Load System
