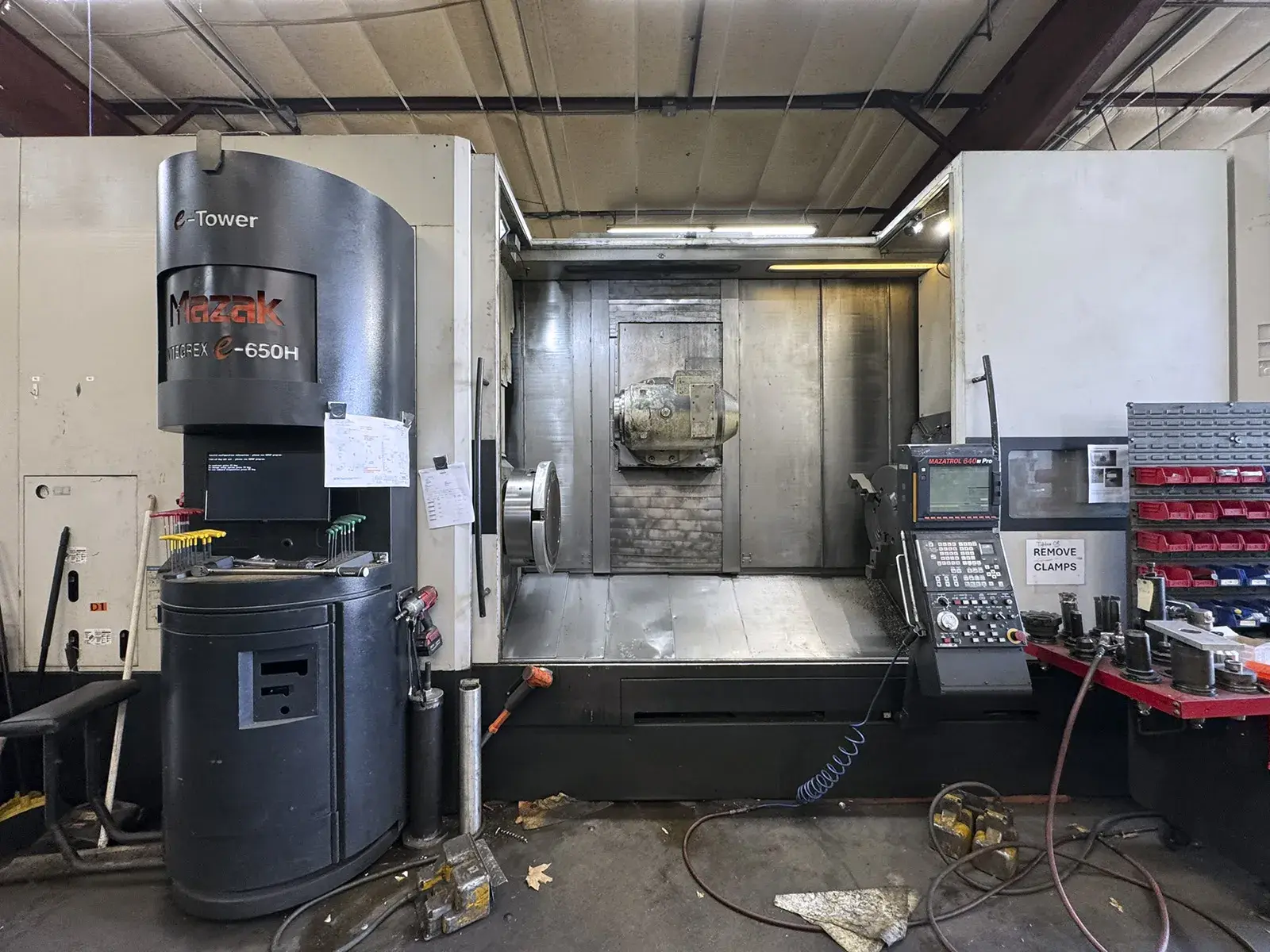

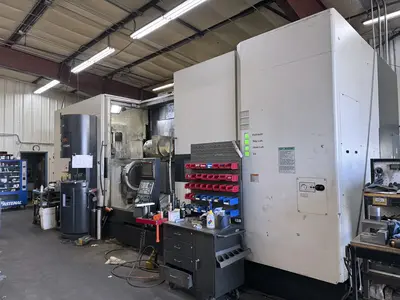

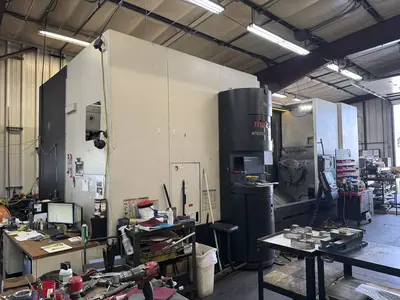

USED 2004 MAZAK INTEGREX E-650HS
Overview
Full B-axis contouring| 80" bet centers| Sub-spindle
Specs
Maximum Swing : 36.2"
Maximum Swing Over Carriage: 36.2"
Maximum Turning Length: 80"
DISTANCE BETWEEN CENTERS: 80"
X-Travel: 40.35"
Z-Travel: 78.00"
Y-Axis Travel: 25"

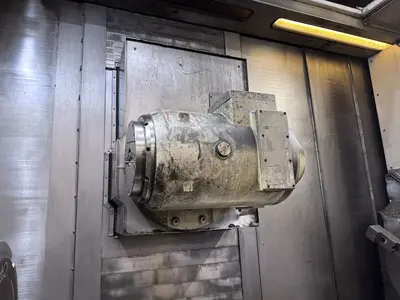

B-Axis Head Tilt: -30° to +210°
C-Axis Index Increment: 0.0001°
Spindle Nose: A2-15

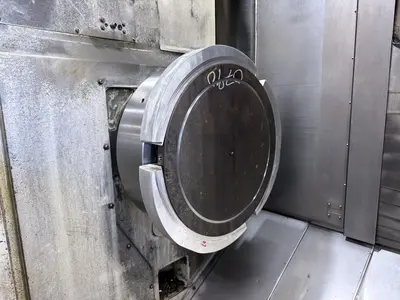

Chuck size on Main spindle: 24"
Chuck size on Sub spindle: 24"
Spindle Speed: 1,000 RPM
Spindle Motor: 60 HP
Live Milling Max RPM:: 5,000 RPM
Live Milling Motor: 50 HP
Spindle Taper: CAT 50

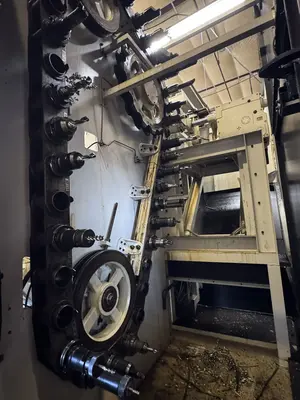

TOOL CAPACITY: 40 tools
Equipped With

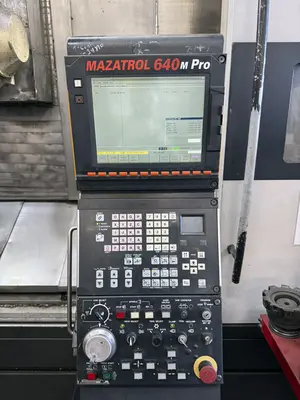

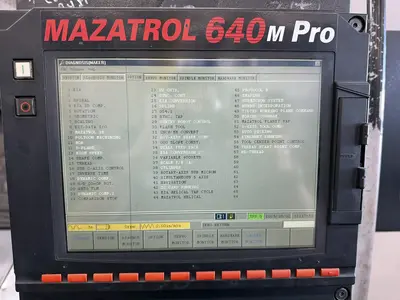

Mazatrol 640 M Pro control
24" chucks on Main ans Sub Spindle
Renishaw Probe

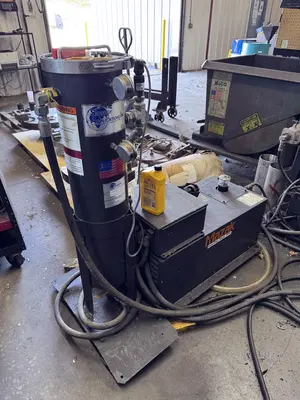

1000 PSI coolant Thru Spindle
CAT 50 Spindle Taper
Y-Axis enabled
Full 5-Axis contouring
Chip conveyor
Coolant Tanks
