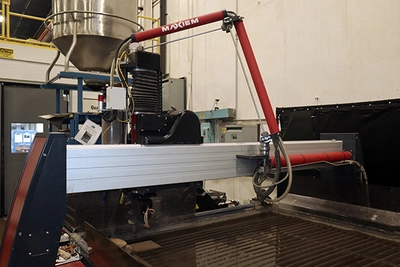

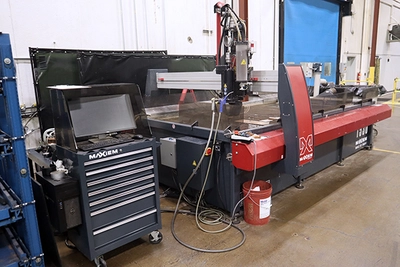

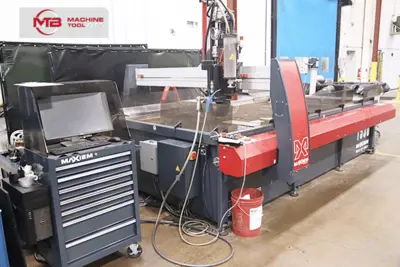

USED 2016 OMAX MAXIEM 1530

PSI: 50,000
Table Size: 12' 2" x 5' 8" (3,708 mm x 1,727 mm)
Cutting Envelope: 10ft 0” x 5’ 2” (3048 mm x 1575 mm)
Z-Axis Travel: 12" (305 mm)
X-Y Cutting Travel: 10' 0" x 5' 2" (3,048 mm x 1,575 mm)
Speed: 500 in/min (12,700 mm/min)
Linear Position Accuracy: ±0.003" (±0.076 mm)
Repeatability: ±0.001" (±0.025 mm)

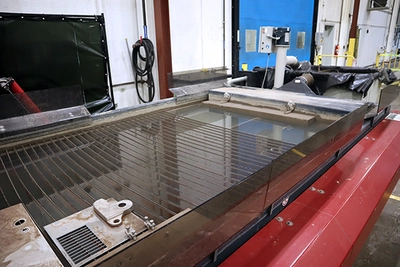

Material Support Slats: 34 4" x 14Ga Galvanized Steel (102 mm x 2 mm)
Max Material Weight: 300 lbs/sq ft (1,465 kg/sq meter)
Electrical Requirements: 3-Phase, 380-480 VAC ±10%, 50-60 Hz
Noise Level: Below 80 dBA at one meter for submerged cutting
FOOTPRINT (WITH PUMP & CONTROLLER): 14' 1" x 10' 10" (4,293 mm x 3,302 mm)
HEIGHT (WITH WHIP PLUMBING): 10' 6" (3,200 mm)
OPERATING WEIGHT: 15,700 lb (7,121 kg)
Weight (tank empty): 4,000 lb (1,814 kg)
