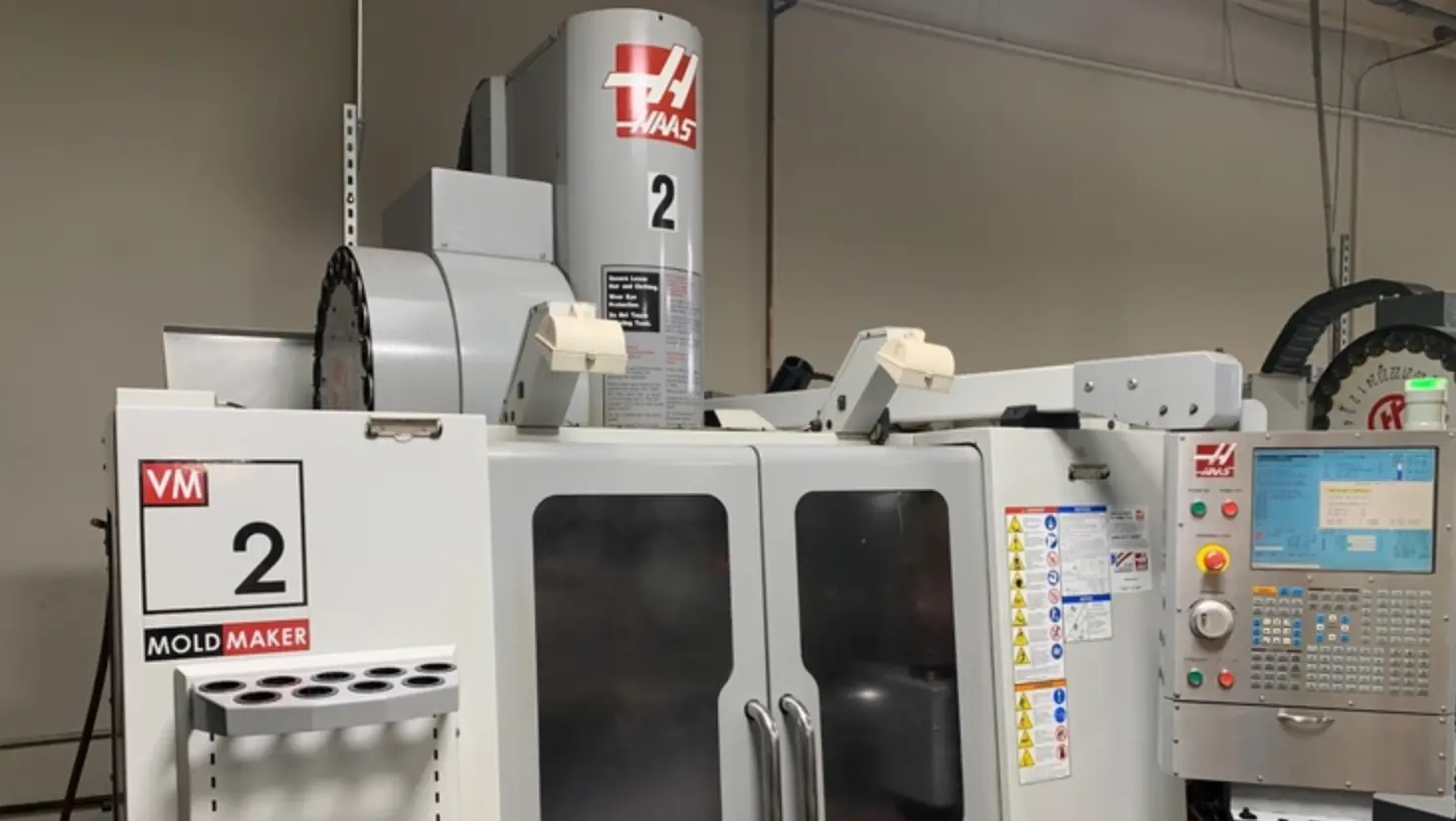

Used Vertical Machining Center. Features 30" x 20" x 20" travels, 30 hp, 12,000 RPM, ATC 24, and 4-axis capability. Includes chip auger, programmable coolant, probing.
| X | 30" | 762 mm |
| Y | 20" | 508 mm |
| Z | 20" | 508 mm |
| Power | 30 hp | 22.4 kW |
| RPM | 12,000 RPM | 12,000 RPM |
| # ATC | 24 | 24 |
| Taper | 40 | 40 |
| Table-W | 18" | 457.2 mm |
| Table-L | 36" | 914.4 mm |
| # Axis | 4 | 4 |
| Control | CNC (HAAS) | CNC (HAAS) |
Chip Auger
Programmable Coolant
Probing
4th Axis Ready
SHRT210H 4th Axis Rotary (Chick Indexer subsystem not included in sale. Tombstone and tailstock)
Remote Jog
