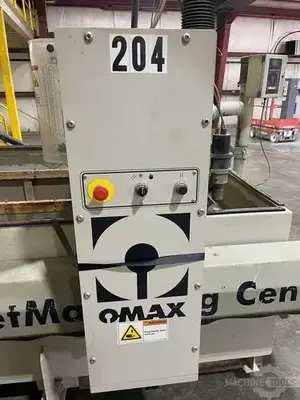

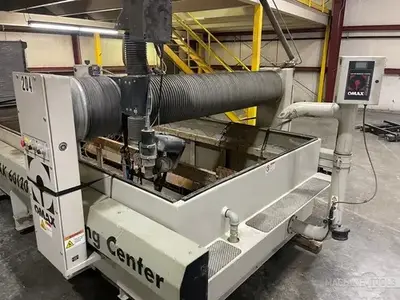

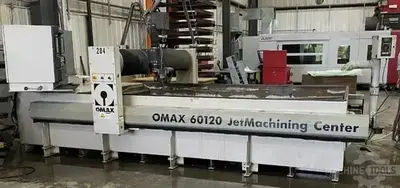

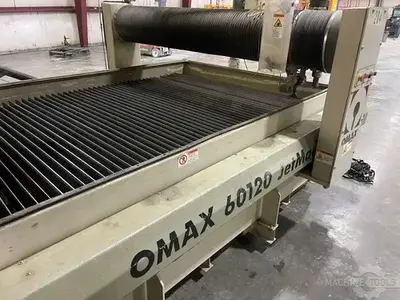

6.5' x 12' Tilt-A-Jet CNC Waterjet
| Pump Output | 60,000 PSI | 4,136.8 bar |
| X | 3,200 mm | 125.98" |
| Y | 1,575 mm | 62.008" |
| Z | 8" | 203.2 mm |
| Table Size-W | 1,956 mm | 77.008" |
| Table Size-L | 3,656 mm | 143.94" |
| Power | 100 hp | 74.6 kW |
Request a Quote
Add to Cart
Table Width: 6.5'
Table Length: 12'
Control: Omax PC
Pump: 40 HP
Max Cutting Pressure: 60,000 PSI
Power Requirement: 480/3/60
X-Y Cutting Travel: 10'6" x 5'2"
Z-Axis: 8"
Footprint (with Controller): 18' 9" x 9' 2"
Weight (Empty Tank): 6200 Lbs
Pump Dimensions: 66" x 36" 38.5"

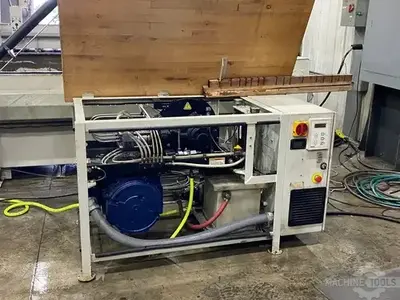

370 Hours: EnduroMax P4060V Intensifier Pump
Intelli-TRAX Traction: Rapid Water Level Control

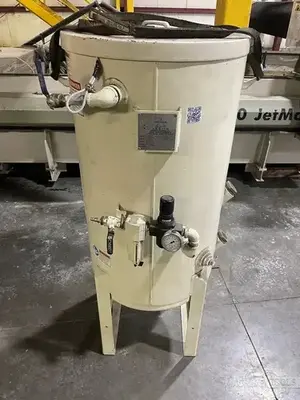

Tilt-A-Jet Taper Compensating Cutting Head: 600 Lb Bulk Abrasive Hopper
Intelli-MAX Software
