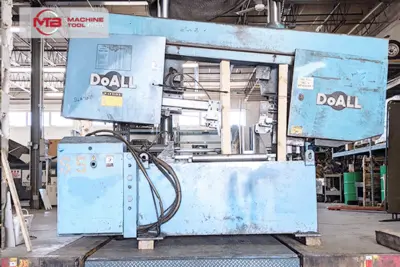

USED 1999 DOALL C-650NC
Overview
Used 1999 DOALL C-650NC. Machine Tool Bids offers plenty of Horizontal Band Saws and other fabrication and CNC machines for great prices. Contact us if you have any questions about this DOALL C-650NC or any of our machines.
Specs
Cutting Capacity (Rectangle): (H) 25" X (W) 25"
Cutting Capacity (Round): 26"
Cutting Capacity (square): 25"
Horsepower (HP): 10 HP
Type: Auto
Blade Width: 2"
Blade Thickness: 0.05"
Blade Length: 300"
Control: CNC (Doall NC)
Approx. Weight: 13,000 lbs.
Smallest recommended cut size: 1"
Minimum butt end: 12"
Auto index length single index: 20"
multiple index: 221"
minimum index length: 1/4"
Numeric control program capacity: 0-99
Display: Alpha/numeric
Bandsaw blade size: 2" X 300"
Blade Speed: 40-360 FPM Variable
Blade Motor: 10 HP
Hydraulic Motor: 3 HP
Cutting Fluid Pump Motor: 1/3 HP
Hydrauic Tank Capacity: 15 Gallons
Material pass line height: 33.5"
Approx. Machine Weight: 13,000 lbs.
Approximate Dimensions: 96"x 142"x 128"
Cutting Capacity (Rectangle): (H) 25" X (W) 25"
Cutting Capacity (Round): 26"
Cutting Capacity (square): 25"
Horsepower (HP): 10 HP
Type: Auto
Blade Width: 2"
Blade Thickness: 0.05"
Blade Length: 300"
Control: CNC (Doall NC)
Approx. Weight: 13,000 lbs.
Smallest recommended cut size: 1"
Minimum butt end: 12"
Auto index length single index: 20"
multiple index: 221"
minimum index length: 1/4"
Numeric control program capacity: 0-99
Display: Alpha/numeric
Bandsaw blade size: 2" X 300"
Blade Speed: 40-360 FPM Variable
Blade Motor: 10 HP
Hydraulic Motor: 3 HP
Cutting Fluid Pump Motor: 1/3 HP
Hydrauic Tank Capacity: 15 Gallons
Material pass line height: 33.5"
Approx. Machine Weight: 13,000 lbs.
Approximate Dimensions: 96"x 142"x 128"
Equipped With
2" Blade
Chip conveyor
NC control
optional feed force dial
bundling vertical clamp on Shuttle feed
rapid to work stop
Full travel vises
0-99 jobs
powered blade guide arm
hydraulic powered chip brush
6 degree canted head for more efficient cutting
Blade and manuals
