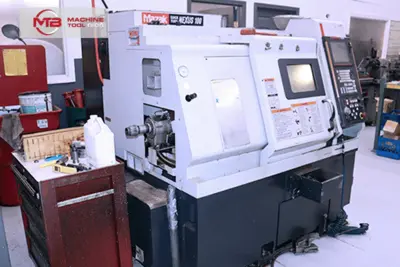

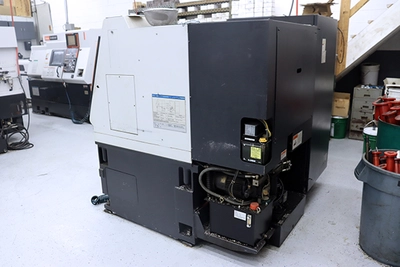

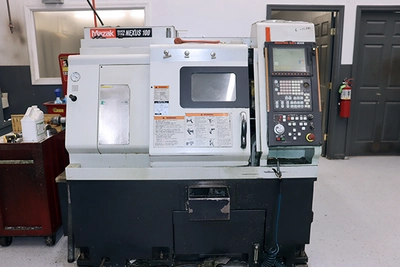

USED 2004 MAZAK QTN 100

Used 2004 Mazak QTN 100. Machine Tool Bids offers plenty of CNC Lathes and other fabrication and CNC machines for great prices. Contact us if you have any questions about this Mazak QTN 100 or any of our machines.

Max Swing: 21.6"
Max Cutting Diameter: 11"
Max Machining Length: 12.1"
Bar Work Capacity: 2"
X-Axis Travel: 7.5"
Z-Axis Travel: 13"
Max. Spindle Speed: 6,000 RPM
Main Spindle Nose: A2-5
Spindle Bore: 2.4 In
Spindle Nose: A2-5

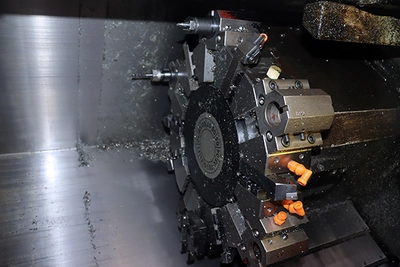

Turret Type: Drum
TOOL CAPACITY: 12
Rapid Traverse X: 1181 IPM
Rapid Traverse Z: 1299 IPM
Tailstock Body Stroke: 13.7"
Spindle Drive Motor: 10/ 15 HP
Max Swing: 21.6"
Max Cutting Diameter: 11"
Max Machining Length: 12.1"
Bar Work Capacity: 2"
X-Axis Travel: 7.5"
Z-Axis Travel: 13"
Max. Spindle Speed: 6,000 RPM
Main Spindle Nose: A2-5
Spindle Bore: 2.4 In
Spindle Nose: A2-5
Turret Type: Drum
TOOL CAPACITY: 12
Rapid Traverse X: 1181 IPM
Rapid Traverse Z: 1299 IPM
Tailstock Body Stroke: 13.7"
Spindle Drive Motor: 10/ 15 HP

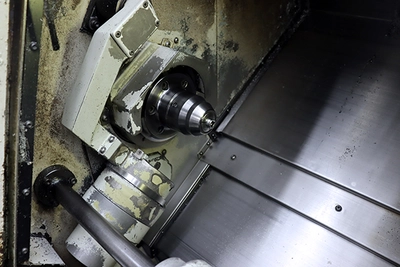

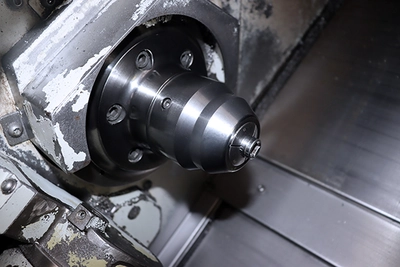

6" Collet Chuck

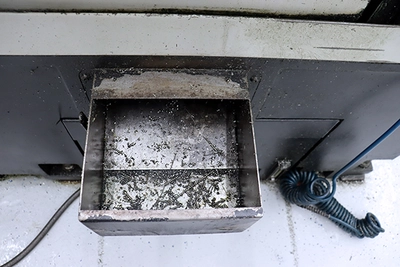

Parts Catcher

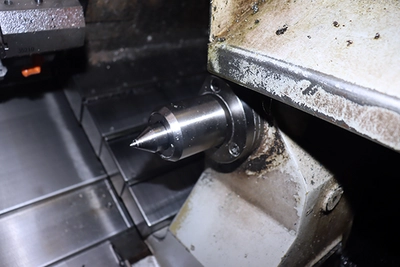

Tailstock
Tool presetter

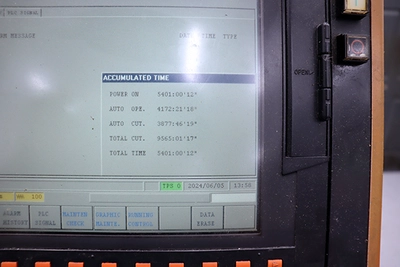

9500 Cutting Hours
