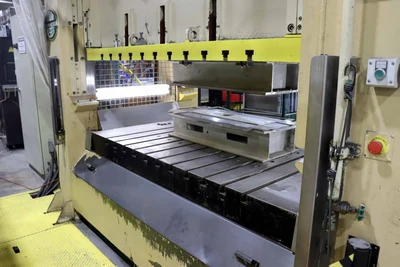

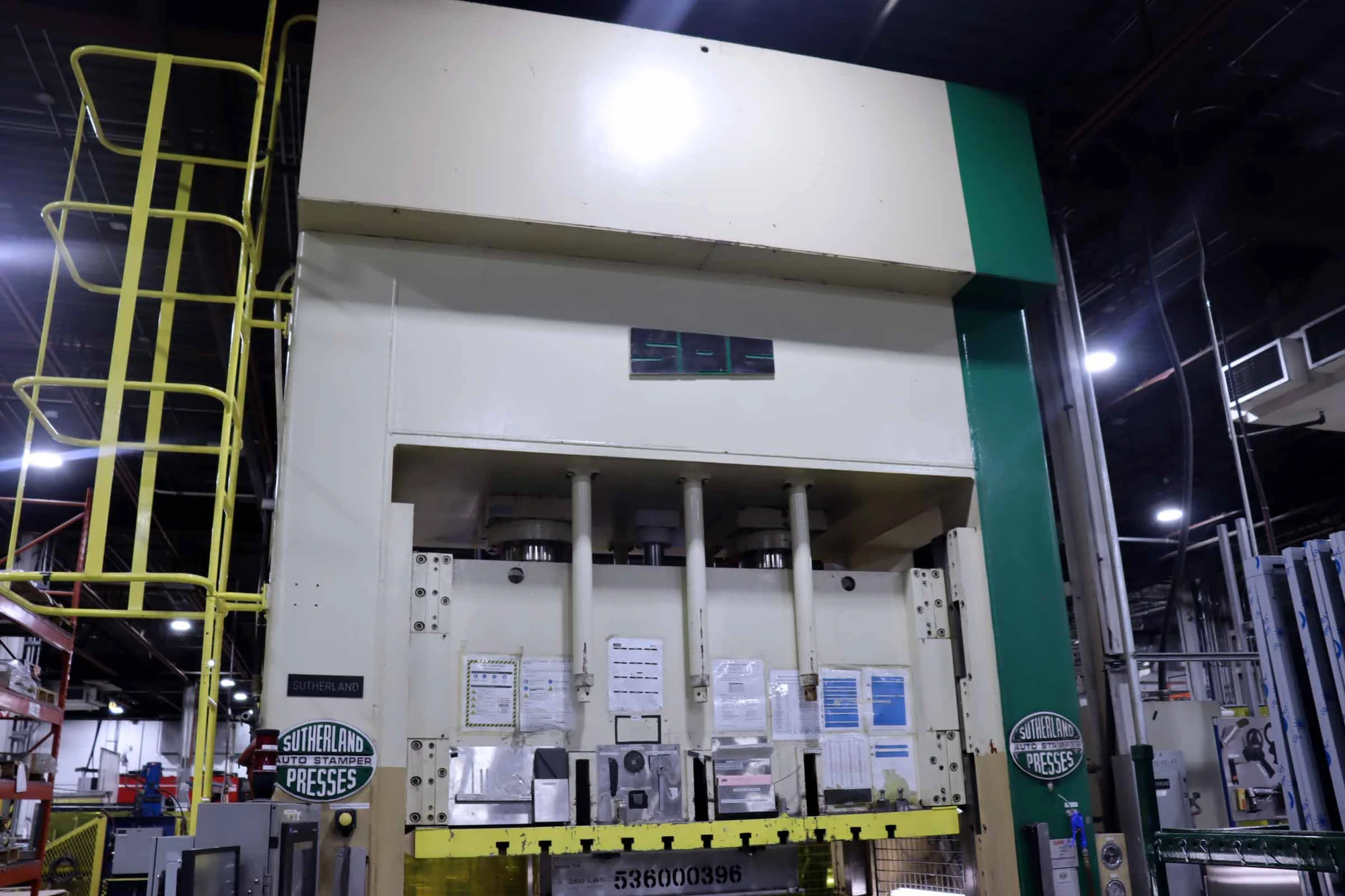

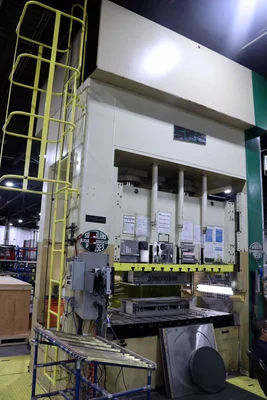

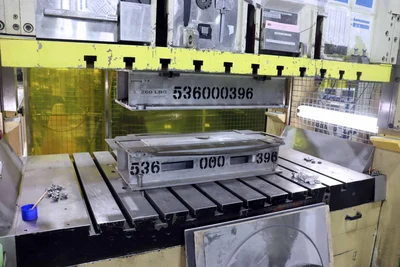

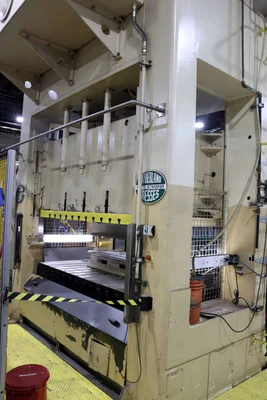

USED 2001 SUTHERLAND SD3-300-84-48-C

Used 2001 Sutherland SD3-300-84-48-C. Machine Tool Bids offers plenty of Hydraulic Presses and other fabrication and CNC machines for great prices. Contact us if you have any questions about this Sutherland SD3-300-84-48-C or any of our machines.

Stroke Length: 2" - 18" (adjustable)
Daylight: 30"
Closed Height: 12"
Slide Area: 84" x 48"
Bolster Area: 84" x 48"
Bolster Thickness: 7"
Floor Space Requirements: 180" x 80"
Overall Height: 205" x/ 17ft
Approx. Weight: 78,300 lbs
Rapid Approach: 900 I.P.M.
Rapid Return: 900 I.P.M.
Capacity: (two units 37.5 ton cylinders) 75 Tons
Slide Guidance (fully adjustable taper wedge gibs w/ alloy wear strips): 8 point
Slide Knockouts: 3 Units
Side Window Opening: 38" x 30"
Main Slide Speeds:
Fast Pressing: (10-50% of full tonnage) 70 I.P.M.
Normal Pressing: (55%-100% of full tonnage) 35 I.P.M.
Hydraulic Die Cushions:
Cylinders: (two units with prefill valves) 5.5" diameter
Hydraulic Die Cushions - Stroke Length: (adjustable) 6"
Pin Pad Area: 48" x 24"
Motor Horse Power: 10 HP
Vane Pump (maker): Denison
Down Speed: 350 I.P.M.
Up Speed: 350 I.P.M.

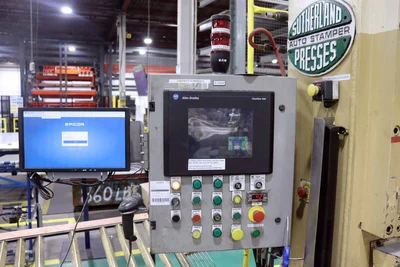

Position Control: Linear Scale (via A-B 1000 color touch screen)
Pressure Control: A-B Touch Screen
Ejector Capacity: 5 Ton
Ejector Cylinder: 3.7" diameter
Electrical Service:
Main Power: 440 Volts (dual voltage)
Phase: 3 Phase
Cycle: 60 Cycle
Control Voltage: 110 Volts
Forming Tonnage: 300 Tons
Slide Lifting Capacity: 15.5 Tons
