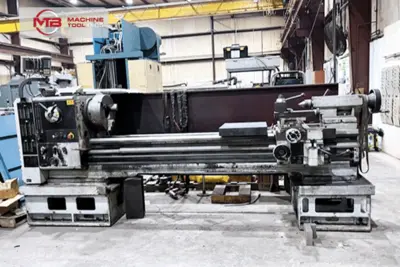

USED 2001 HARRISON M550 GH

Used 2001 Harrison M550 GH. Machine Tool Bids offers plenty of Engine Lathes and other fabrication and CNC machines for great prices. Contact us if you have any questions about this Harrison M550 GH or any of our machines.

Max Swing over Bed: 21.81"
Swing over cross slide: 14.57"
Swing in Gap: 32.68"
DISTANCE BETWEEN CENTERS: 80"
Bed Width: 15.75"
Spindle Bore: 3"
Spindle Nose Camlock: D1-11
Spindle Nose Taper: 5 MT
SPINDLE SPEED RANGE: RPM 18-1800
Chuck Size: 15.5"
Cross slide travel: 11.81"
Cross Slide Width: 8"
Compound top slide travel: 7.5"
Tailstock Quill Diameter: 3.74"
Tailstock Quill Travel: 5.7"
Tailstock Quill Taper: 6 MT
Longitudinal Feed Range: 0.0016 – 0.11
Cross Feed Range (48): 0.0008 – 0.055
Number of Inch Pitches: 73
Range of inch pitches: 2 - 84
Number of Metric Pitches: 51
Range of metric pitches: 0.2 - 14
Number of Diametral Pitches: 27
Range of Diametral Pitches: 8 - 72
Number of Module Pitches: 27
Range of Module Pitches: 0.2 – 3.5
Voltage Required: 230/460Phase3
Machine Weight: 7,942 lbs.
Max Swing over Bed: 21.81"
Swing over cross slide: 14.57"
Swing in Gap: 32.68"
DISTANCE BETWEEN CENTERS: 80"
Bed Width: 15.75"
Spindle Bore: 3"
Spindle Nose Camlock: D1-11
Spindle Nose Taper: 5 MT
SPINDLE SPEED RANGE: RPM 18-1800
Chuck Size: 15.5"
Cross slide travel: 11.81"
Cross Slide Width: 8"
Compound top slide travel: 7.5"
Tailstock Quill Diameter: 3.74"
Tailstock Quill Travel: 5.7"
Tailstock Quill Taper: 6 MT
Longitudinal Feed Range: 0.0016 – 0.11
Cross Feed Range (48): 0.0008 – 0.055
Number of Inch Pitches: 73
Range of inch pitches: 2 - 84
Number of Metric Pitches: 51
Range of metric pitches: 0.2 - 14
Number of Diametral Pitches: 27
Range of Diametral Pitches: 8 - 72
Number of Module Pitches: 27
Range of Module Pitches: 0.2 – 3.5
Voltage Required: 230/460Phase3
Machine Weight: 7,942 lbs.

2-Axis Accurtie Digital Read Outs
15 1/2" Chuck-3-Jaw
IN/MM Threading
Tailstock
Tool Post
Coolant
