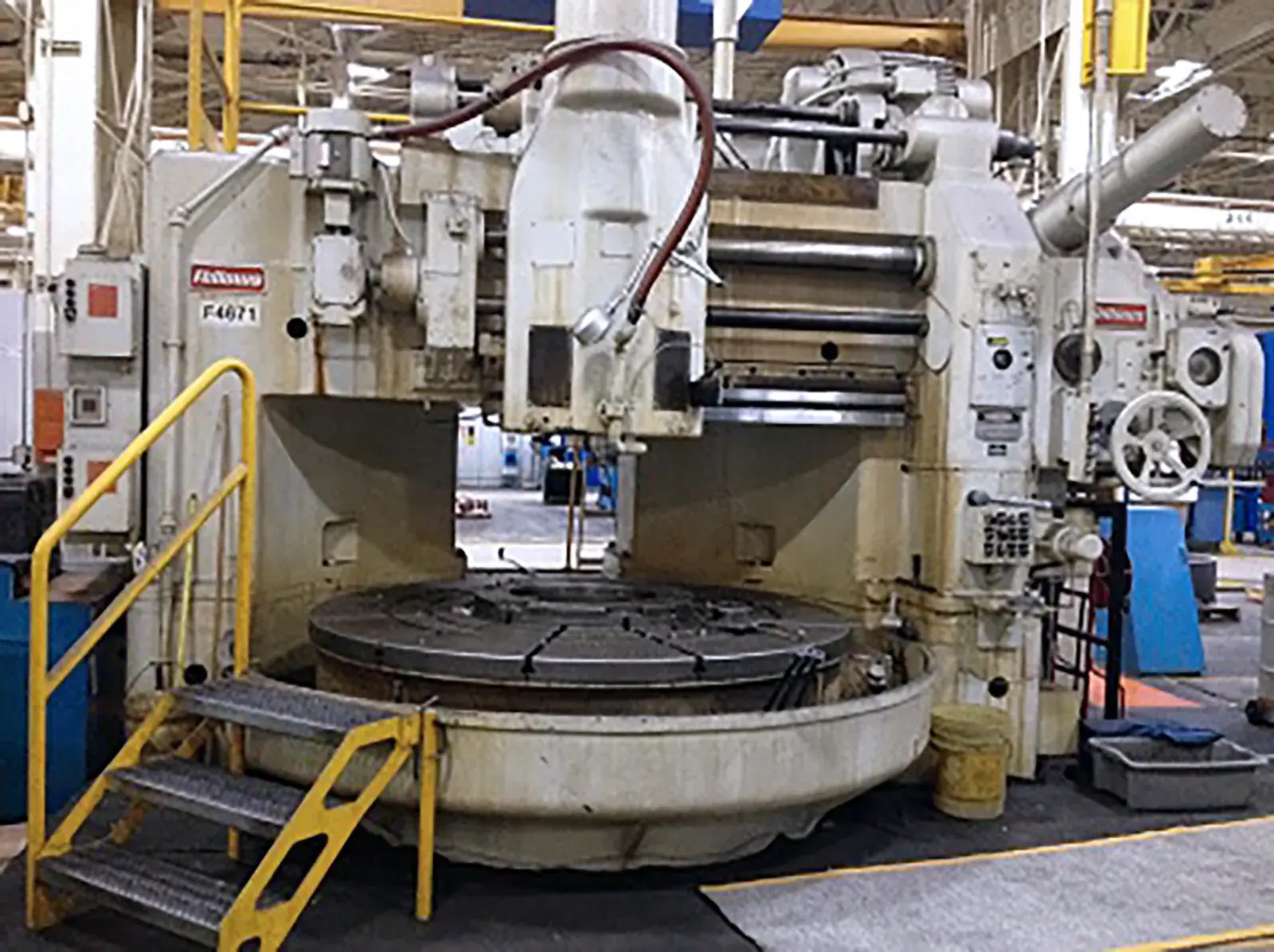

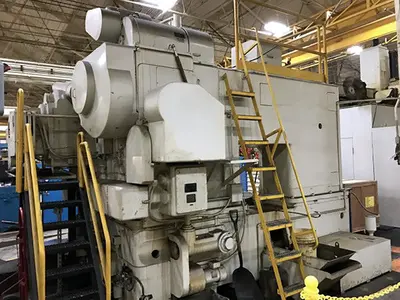

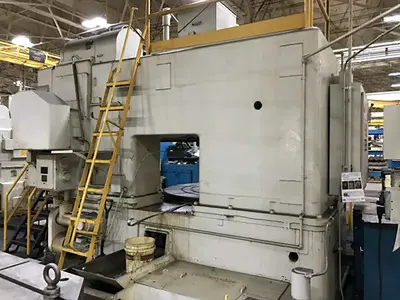

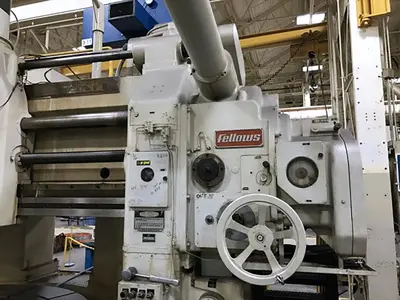

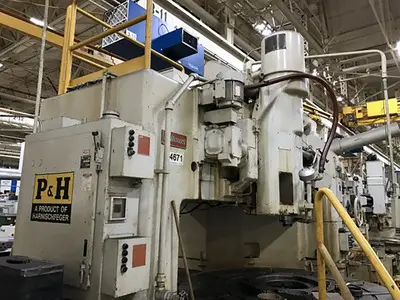

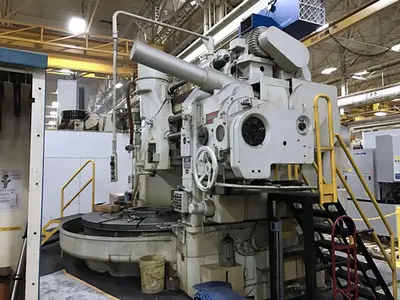

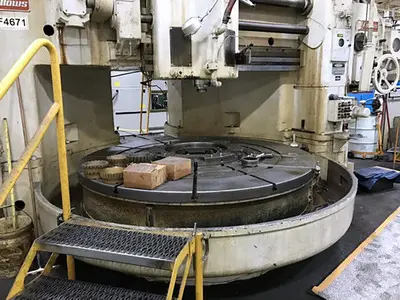

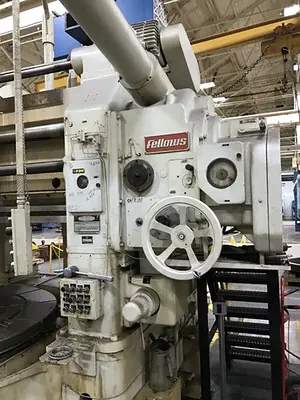

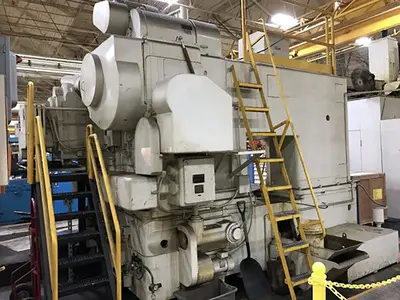

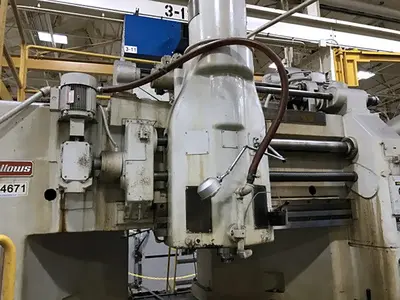

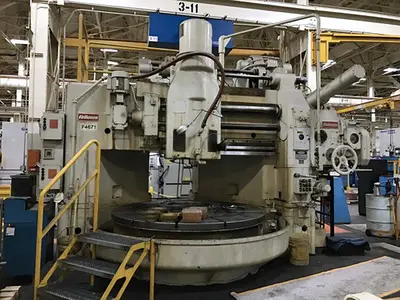

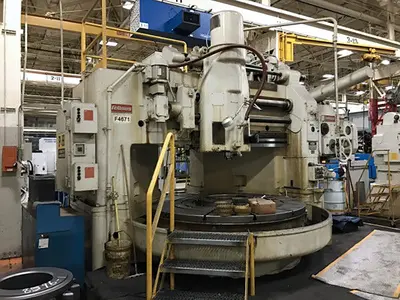

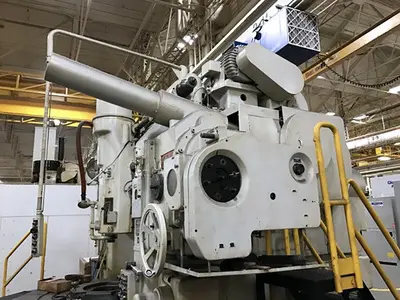

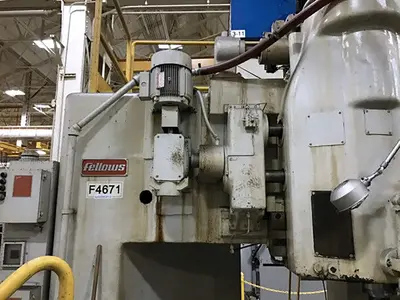

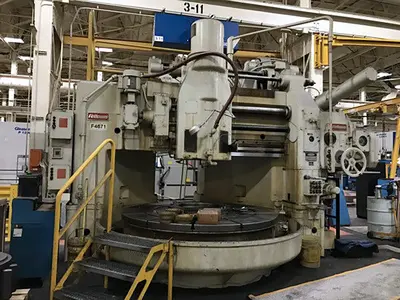

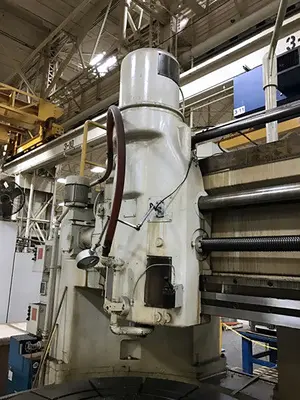

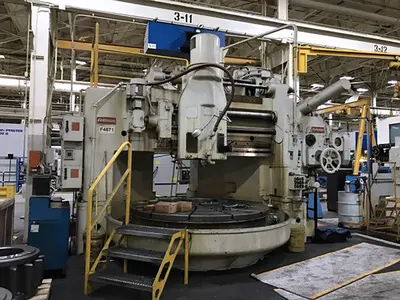

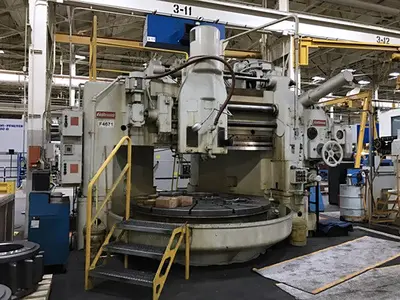

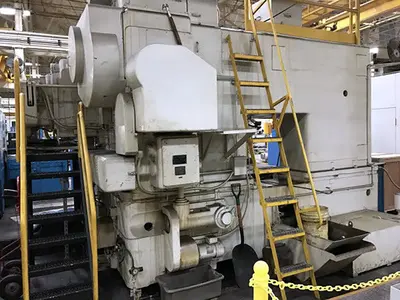

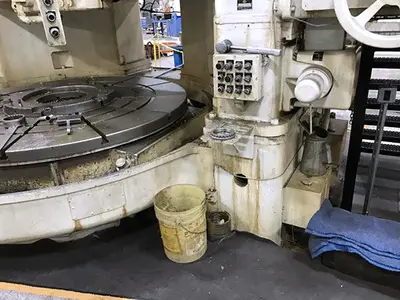

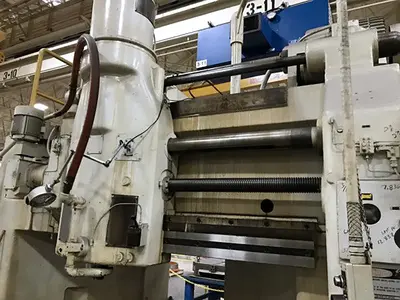

USED 1989 FELLOWS 70-15

Used 1989 Fellows 70-15. Machine Tool Bids offers plenty of Gear Shapers and other fabrication and CNC machines for great prices. Contact us if you have any questions about this Fellows 70-15 or any of our machines.

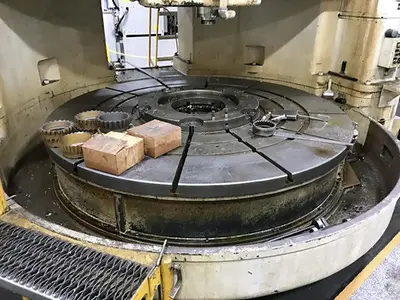

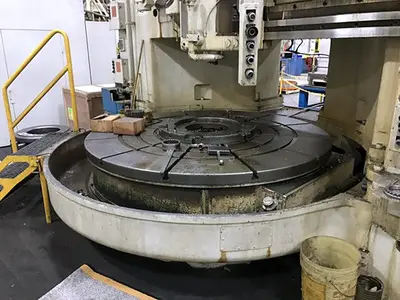

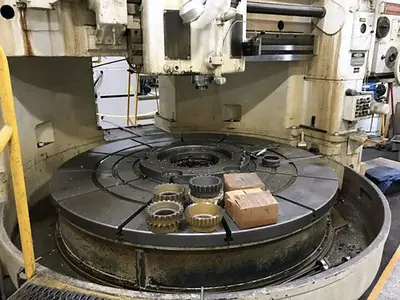

Table Diameter: 84"
Maximum Table Weight: 30,000 lbs.
Maximum Pitch Diameter: 70" Internal
Max dp Spur: 3
Maximum Face-Width (Nominal): 15
Maximum Diameter External Gear Cut (Nominal): 70"
Maximum Diameter Internal Gear Cut (Nominal): 88"
Maximum Diameter Workpiece Accommodated: 104"
Max Permissible Weight Of Workpiece & Fixture: 36,000 lbs.
Work spindle Centerline To Centerline Of Cutter Spindle: 35"
Fixture Clearance Height W/Cutter Spindle In Upper Position: 28"
Maximum Diametral Pitch (Full Length Teeth): 2 DP
Maximum Diametral Pitch (Stub Teeth): .75 DP
Maximum Diameter Pitch (30°P.A. Splines): 2-5/5 DP
Diameter Of Cutter Spindle: 6.25"
Maximum Stroke Length: 19.12"
Stroking Speeds (Infinitely Variable): 5 to 122 S.P.M.
Maximum Infeed Of Cutter Ram: .0020"/MIN.
Minimum Infeed Of Cutter Ram: .0005"/MIN.
Max Rotary Feed Per Stroke (Per 1" Of Cutter Diameter): .0068"/MIN.
Min Rotary Feed Per Stroke (Per 1" Of Cutter Diameter): .0006"/MIN.
Machine Overall Length: 192”
Machine Overall Depth: 144”
Machine Overall Height: 150"
Machine Net Weight: 95,000 lbs.
