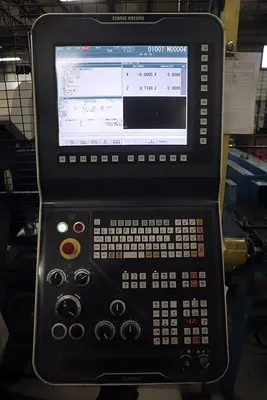

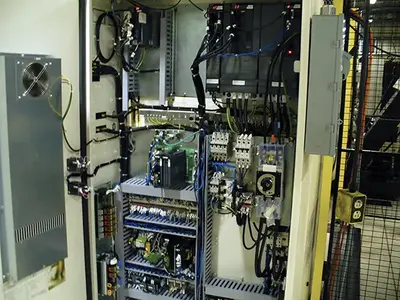

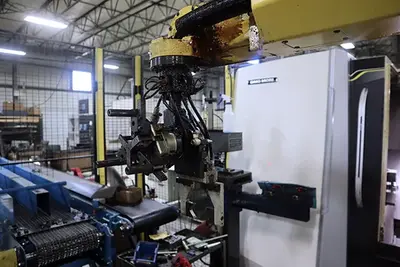

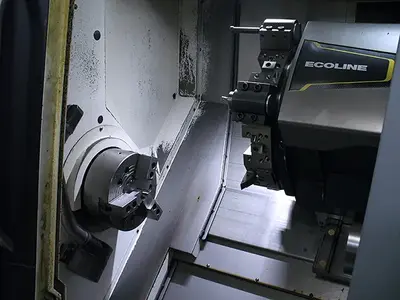

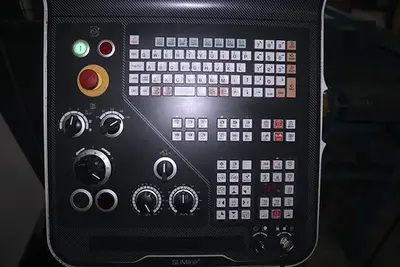

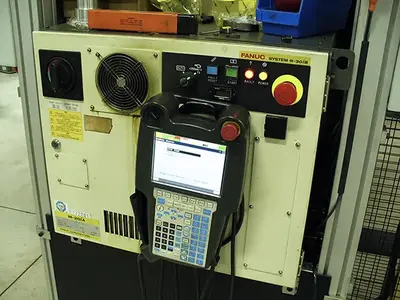

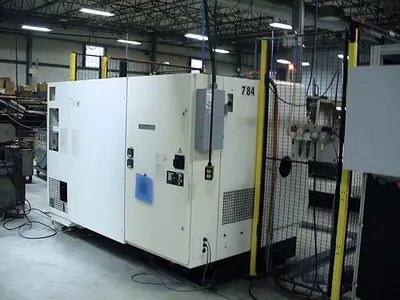

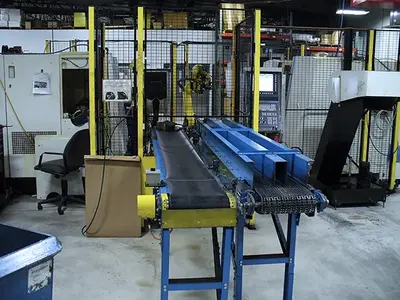

USED 2016 DMG MORI EcoTurn 450

Swing over cross slide: 1.57"
DISTANCE BETWEEN CENTERS: 26.97"
Max. Turning Diameter: 15.98"
Max. Turning Length: 22.36"
Max Bar Working Capacity: 3.15"
X-Axis Travel: 10.53"
Z-Axis Travel: 23.62"
Spindle Speed Ranges: 4000
Number of Spindle Speed Ranges: unchangeable
Spindle Nose Type: A2-8
THROUGH-SPINDLE HOLE DIAMETER: 3.58"
Minimum Spindle Indexing Angle: 0.01 spindle mode
Spindle bearing inner diameter: 5.12"
Turret Type: 12 stations
Rapid Traverse Rate: X-1181.19ipm, Z-1181.10ipm, tailstock (digital tailstock spec.): 787.4" (retract) / 275.59" (advance)
Jog Feedrate: X, Z, B: 0-196.85ipm [21 steps]
Tailstock Travel: 19.69"
Tailstock Spindle Taper Hole: MT5
Spindle Drive Motor: (1/6H/40% ED/Cont.): 24.66/20/16 HP
Hydraulic Pump Motor: 2.0 HP
Coolant Pump Motors: 0.43 / 0.69 HP
Hydraulic oil tank capacity: 2.64 gal.
Coolant Tank Capacity: 34.32 gal.
Machine height: 76.06"
Chuck: 10" hollow & solid; 12" hollow & solid
Turret Tool Mounting Capacity:: 12 tools
Floor Space (only machine):: 117.13" x 77.09" (w/o operation panel)
Floor Space (including Right Disposal Chip Conveyor):: 166.34" x 77.09" (w/o operational panel)
Floor Space (including Rear Disposal Chip Conveyor):: 104.57" x 133.86" (w/o operational panel)
Machine Mass (including Right Disposal Chip Conveyor): 12,100lb
Lubricating Oil Tank Capacity: 0.53 gal.
Chip Conveyor Motor:: 0.33 HP
Lubricating Pump Motor: 0.02 HP
Feed Motors (X/Z): 2.66 HP
Swing Over Ned (chuck wiper base cover): 24.80"
Swing Over Bed (Z-axis slide cover): 26.77"
Height of Angled Tool Shank Section: 1"
Diameter of Boring Bar Shank Section: 2"
