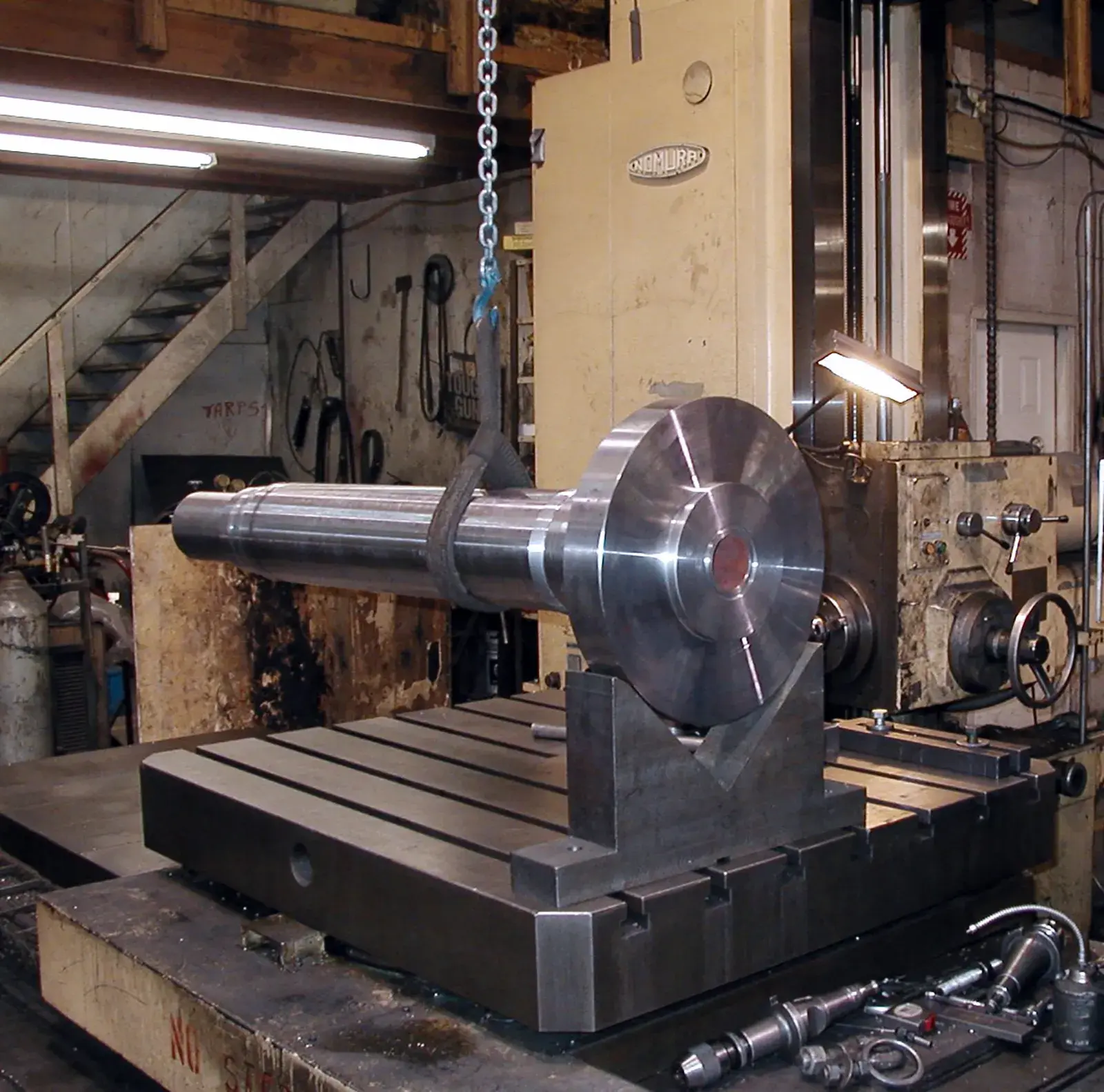

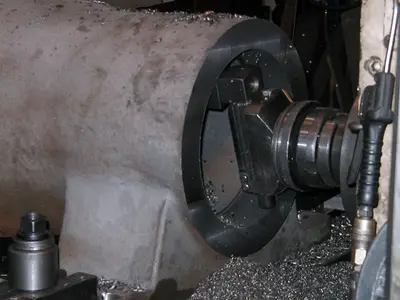

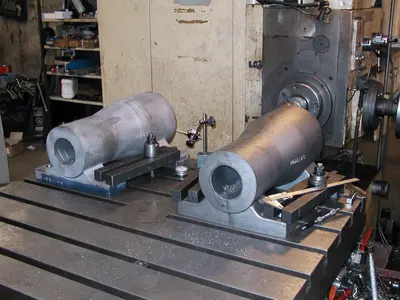

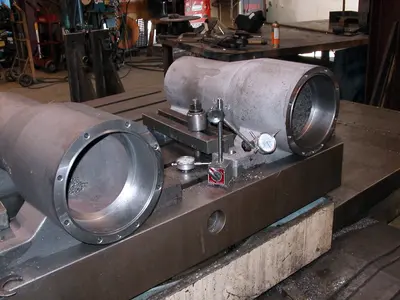

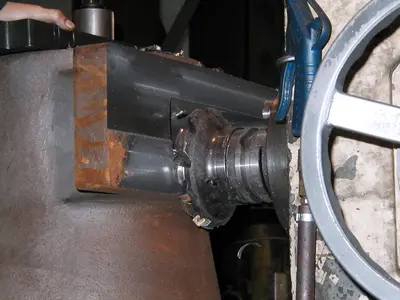

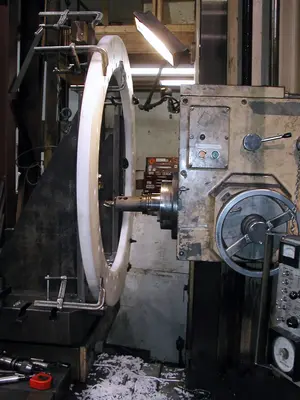

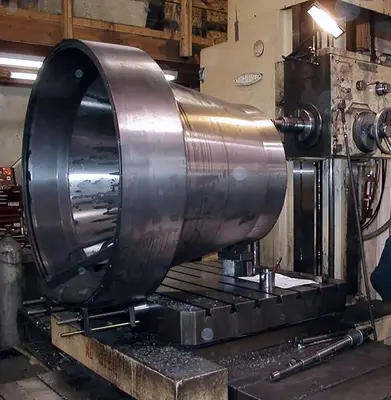

USED 1982 NOMURA B100SR

Used 1982 Nomura B100SR. Machine Tool Bids offers plenty of Horizontal Boring Mills and other fabrication and CNC machines for great prices. Contact us if you have any questions about this Nomura B100SR or any of our machines.

Spindle Size: 3.94"
Power: 59 hp
RPM: 1760 rpm
Table width: 45"
Table Length: 50"
Spindle Travel: 26"
Quill: 26"
BUILT IN ROTARY TABLE SIZE: 45" x 50"
Spindle Taper: #50 with power clamping
Headstock Vertical Travel: 50"
Table Longitudinal Travel: 60"
Max Load on Table: 11,000 lbs
Rapid Rotation of Rotary Table: 1.3 rpm
Height of Table top from bed bottom: 38.5"
Main Motor: 20 HP
Feed Motor: 50 HP
Voltage: 230/460V, 60Hz, 3Phase
Full load current: 49 Amps

3-Axis Digital Readouts (Easson Brand)
Built In Rotary Table
Full Pendant Control
Hardened Ways
Sliding Way Covers
