USED 2016 OMAX Maxiem 1530

Used 2016 Omax Maxiem 1530 for sale. This pre-owned Omax Water Jet is located in the USA. This Water Jet is available for a limited time, call us today for a quote. If you have any questions about our Omax Maxiem 1530 listing, contact us and we will be happy to help.

Table Size: 12' 2" x 5' 8" (3,708 mm x 1,727 mm)
Cutting Envelope: 10ft 0” x 5’ 2” (3048 mm x 1575 mm)
Z-Axis Travel: 12" (305 mm)
X-Y Cutting Travel: 10' 0" x 5' 2" (3,048 mm x 1,575 mm)
Speed: 500 in/min (12,700 mm/min)
Linear Position Accuracy: ±0.003" (±0.076 mm)
Repeatability: ±0.001" (±0.025 mm)
Material Support Slats: 34 4" x 14Ga Galvanized Steel (102 mm x 2 mm)
Max Material Weight: 300 lbs/sq ft (1,465 kg/sq meter)
Electrical Requirements: 3-Phase, 380-480 VAC ±10%, 50-60 Hz
Noise Level: Below 80 dBA at one meter for submerged cutting
HEIGHT (WITH WHIP PLUMBING): 10' 6" (3,200 mm)
OPERATING WEIGHT: 15,700 lb (7,121 kg)
Weight (tank empty): 4,000 lb (1,814 kg)
FOOTPRINT (WITH PUMP & CONTROLLER): 14' 1" x 10' 10" (4,293 mm x 3,302 mm)
PSI: 50,000

Model M30 pump – 30HP/50000PSI

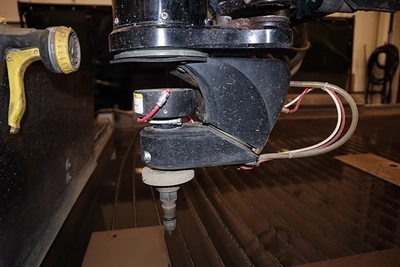

A-Jet 5-Axis cutting head
Terrain Follower
Variable Speed Solids Removal System
Water Level Control
600lb Abrasive Feed System
Laminar Flow Filter System
