USED 2022 TRUMPF TRULASER CELL 3000
Overview

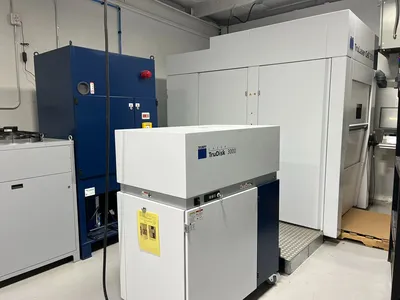

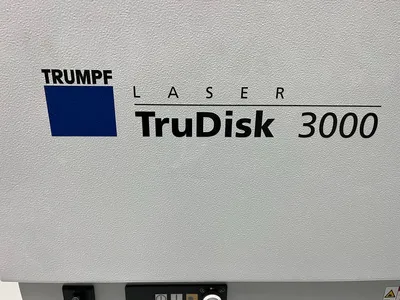

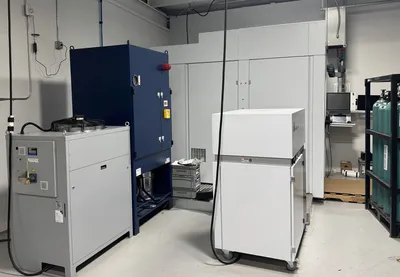

TRUMPF TruLaser Cell 3000 Multi-Axis Laser System New 2022 put in service 2023 - BARELY USED! Cell includes TruDisk 3000 high-power solid-state laser for the welding, cutting, and surface processing of metals.
Your system for flexible laser processing of small and medium-sized components
2D laser cutting | 3D laser cutting | laser welding | laser metal deposition

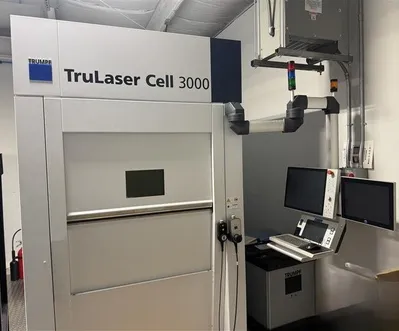

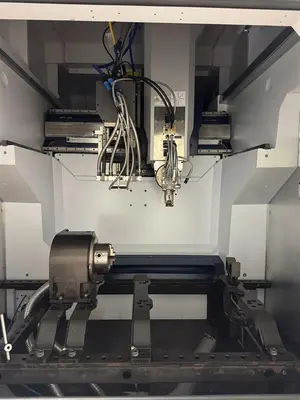

With the compact and high-precision 5-axis laser machine TruLaser Cell 3000 you can weld and cut in two or three dimensions. In addition, the 3D laser machine is also ideal for laser metal deposition (LMD). From prototypes to large-scale series production with extensive automation, this multi-talented machine displays its superiority across the board. This applies in particular to cost-effective laser processing of small to medium-sized components with top quality.
TRUMPF provides high-performance CO2 lasers, disk and fiber lasers, direct diode lasers, ultrashort pulse lasers, and also marking lasers and marking systems. The laser technology product program also includes laser systems for the cutting, welding and surface processing of three-dimensional parts.
Specs
Your system for flexible laser processing of small and medium-sized components
2D laser cutting | 3D laser cutting | laser welding | laser metal deposition
With the compact and high-precision 5-axis laser machine TruLaser Cell 3000 you can weld and cut in two or three dimensions. In addition, the 3D laser machine is also ideal for laser metal deposition (LMD). From prototypes to large-scale series production with extensive automation, this multi-talented machine displays its superiority across the board. This applies in particular to cost-effective laser processing of small to medium-sized components with top quality.
Process flexibility
Welding, cutting, and LMD through simple and fast process adapter changes
Simple to automate
For higher quantities the machine can be automated very simply in line with the customer's specific requirements.
Individual fixture technology
Tailor-made fixture concepts with sophisticated clamping systems and sensor systems from a single source.
Modular construction
Easy to retrofit or upgrade with a large number of options and processing optics.
High-precision
Maximum repeatability across the entire 3D working area
Work area for flexible use
Use the full work area for large installations and comprehensive automation systems.
Axis travel range
X axis travel range 800 mm
Y axis travel range 600 mm
Z axis travel range 400 mm
Maximum axis speeds
Maximum axis speed, axially parallel in X 50 m/min
Maximum axis speed, axially parallel in Y 50 m/min
Maximum axis speed, axially parallel in Z 50 m/min
Maximum axis speed, simultaneous 85 m/min
Maximum axis speed of B axis 120 1/min
Maximum axis accelerations
Maximum axis acceleration, axially parallel in X 10 m/s2
Maximum axis acceleration, axially parallel in Y 10 m/s2
Maximum axis acceleration, axially parallel in Z 10 m/s2
Maximum axis acceleration, simultaneous 17 m/s2
Maximum axis acceleration of B axis 130 rad/s2
Positioning accuracy
Positioning accuracy of linear axes (X, Y, Z) 0.015 mm
Positioning accuracy of rotary axes (B) 0.02 °
Laser
Maximum laser power 8000 W
Available lasers TruDisk, TruFiber, TruDiode
