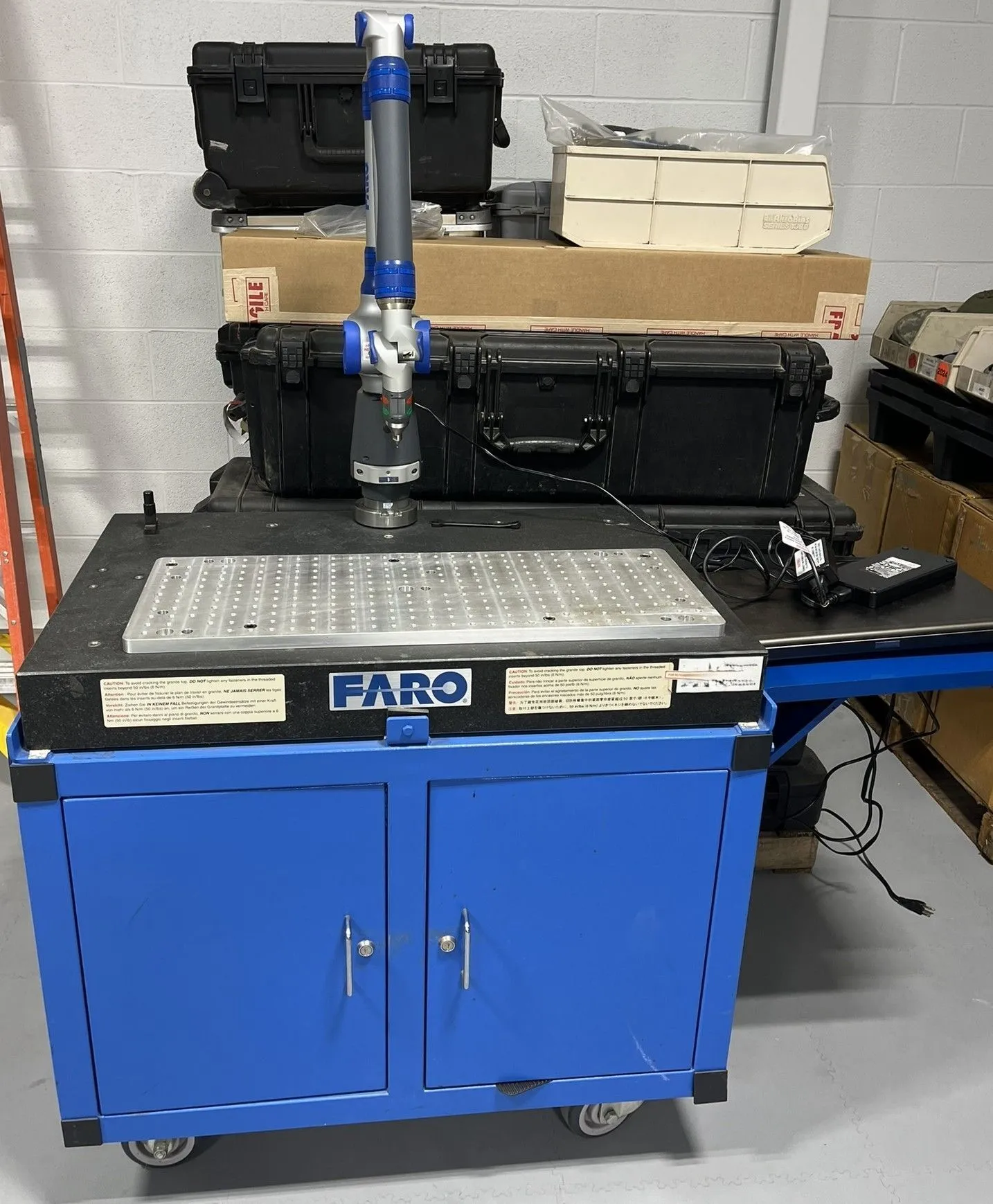

USED 2014 FARO ARM PRIME R06
Overview
FARO’s best accuracy, best value measurement arm
Available in five working lengths and 6-Axis configuration, the FARO
Prime delivers the highest FaroArm® accuracy at an amazing value.
Equipped with Bluetooth® technology, the Prime eliminates the
need to tether the device to a laptop. An extended-use battery and
composite material construction ensure shop floor durability, day
after day.
Together, these features make the FARO Prime the ideal solution for
basic measurements in inspection, reverse engineering, CAD-topart
analysis and for anywhere else a high-accuracy, hard-probing
measurement solution is needed. Experience high performance at a
great value in the FARO Prime.
Capable of measuring small parts to large, portable CMMs are the tools manufacturers rely on to ensure parts, sub-assemblies, and the machines making the parts, are within tolerance. By reducing rework, waste and scrap, throughput increases, and money is saved. Add in the time and expenses recouped in reduced equipment downtime, and a scanning or probing arm delivers an immediate return on investment.
Specs
FaroArm CMM Inspection Arm
One Step Closer to Perfection!
True to our commitment of making our customers’ products and processes the best in the world, FARO once again delivers the most advanced portable arm CMM ever —With a combination of features not found on any other device, the FaroArm has the power to take metrology — and your business — where it has never gone before.
Most Common Applications
Aerospace
Alignment, Tooling & Mold Certification, Part inspection
Automotive
Tool Building & Certification, Alignment, Part inspection
Metal Fabrication
OMI, First article inspection, Periodic Part Inspection
Molding / Tool & Die
Mold and Die Inspection, Prototype Part Scanning
Up to 30% Higher Performance
The only portable measurement arm with up to .0006in. (.016mm) precision
Exclusive FARO i-Probe
Individually serialized with automatic size recognition and built-in probe temperature sensor
Bluetooth® Cable-Free Operation
Inspect and digitize wirelessly up to 30ft. (10m) away
Ergonomic Handle for 6 & 7 Axis Models
Improves ease-of-use, comfort and measurement effectiveness
Auto Sleep Mode
Automatically turn off unit to save energy and extend component life
Universal Quick Mount
Adds mounting flexibility while reducing setup time
Features:
Also available in 6-Axis configuration
Infinite Rotation for non-stop measuring
Composite Material Construction
Specifications:
Operating Temp range: 10°C to 40°C (50°F to 104°F)
Temperature Rate: 3°C/5min. (5.4°F/5min. Max)
Operating Humidity Range: 0-95%, noncondensing
Power Supply: Universal worldwide voltage 85-245VAC, 50/60 Hz
Certifications: MET (UL, CSA Certified) • CE Compliance • Directive 93/68/EEC, (CE Marking) • Directive 89/336/EEC, (EMC) • FDA CDRH, Subchapter J of 21 CFR 1040.10 Electrical Equipment for Measurement, Control & Lab Use EN 61010-1:2001, IEC 60825-1, EN 61326 Electromagnetic Compatibility (EMC) EN 55011, EN 61000-3-2, EN 61000-3-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-4-11
Temperature & Overload Sensors
Located in each joint, they allow the Arm
to “feel” and react to thermal variations
and improper handling for maximum
accuracy
Bluetooth® Cable-Free Operation
Inspect and digitize wirelessly up to 10m
(30ft) away
Internal Counter Balancing
Internal counter balancing provides
comfortable stress-free usage
Multi-Probe Capability
Including various ball diameters, custom
extensions and optional touch sensitive
probe.
Extended-Use Battery
Integrated extended-use battery provides
true “measure anywhere” capability
Universal Quick Mount
Adds mounting flexibility while reducing
setup time
Equipped With
Highlights
Repeatability Starting at 0.016mm
Exclusive 6-Axis Availability
Available in 5 Working Volumes
Infinite Rotation Flexibility
Composite Material Construction
Adaptable 3D Measurement
Technology
Faro Prime 4FT 6 Axis High Accuracy Inspection Arm (BC# 40956-L/T*)
Faro 6mm Ball Probe Tip
Metrology Works Magnetic Base
USB PC Interface Cable
AC Adapter/Charger
Power Cord
Strap For Unit
Accessory Case

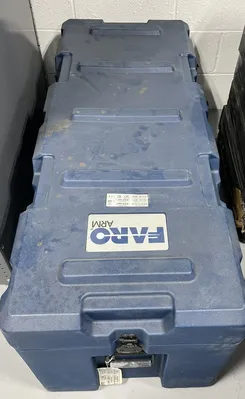

Hard Carrying Case
