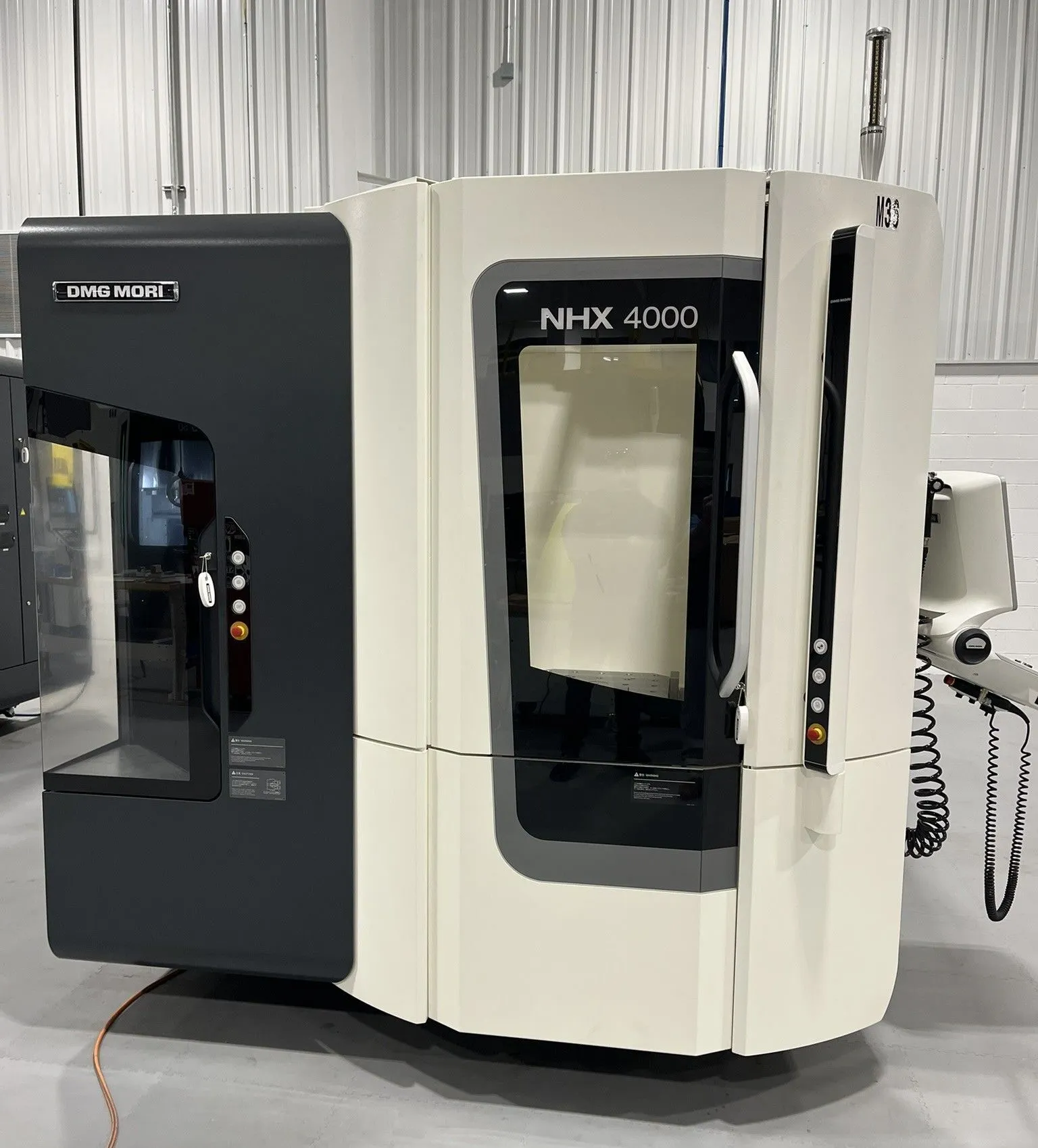

USED 2023 DMG MORI NHX 4000

DMG Mori NHX-4000 Horizontal Machining Center (Never Used)
New 2023
Equipped with:
Basic Machine
NHX 4000 <3rd Generation>
Control
Fanuc_F31iB with CELOS
CELOS - ERGOline Touch
Spindle
High-speed spindle 20,000 min-1, 37/ 26/ 18.5 kW
Options for Spindle
Spindle Taper HSK-A63
Preparation for Center Through-spindle coolant system
Table
Full 4th axis rotary table (STD)
Options for Table
Specification of Pallet : inch
Without Auto-Coupler Hydraulic Fixture Interface
Tool catcher at setup station
Tool Magazine
Tool storage capacity 60 tools (STD)
Coolant supply / Chip removal
Usable Coolant Type: Water-Soluble Coolant
Chip conveyor outside machine (rear discharge, drum filter type) (STD)
Interface for Through-spindle Coolant System (7.0 MPa, Variable Pressure Steps) (ChipBLASTER)
Without Coolant Chiller
Mist collector zeroFOG #1 (Built-in)(SK-OP)
Measuring / Monitoring
In-machine measuring system (spindle) optical signal transmission type touch sensor (RENISHAW, OMP60) + workpiece setter function (STD)
In-machine measuring system (table) touch sensor (Magnescale) + tool setter function (tool length + diameter)
Without Tool breakage detection system
Automation
Signal lamp 4 colors (Red, yellow, green, blue)
General Options
Dry anchor (SK-OP)
Multi dry filter (SK-OP)
Voltage of Customer Factory 220 V
Frequency 60 Hz
Setting Unit inch
Technology Cycle
Without AI Chip Removal
Screen Text Language
Screen display English
Special constructions
DMQP:LNS CB Automatically Variable Volume Systems 2-10.5 gpm / 1000 psi (1500 psi capable) Part# V-40
All available manuals, tool kit and keys
*************************************************************************
