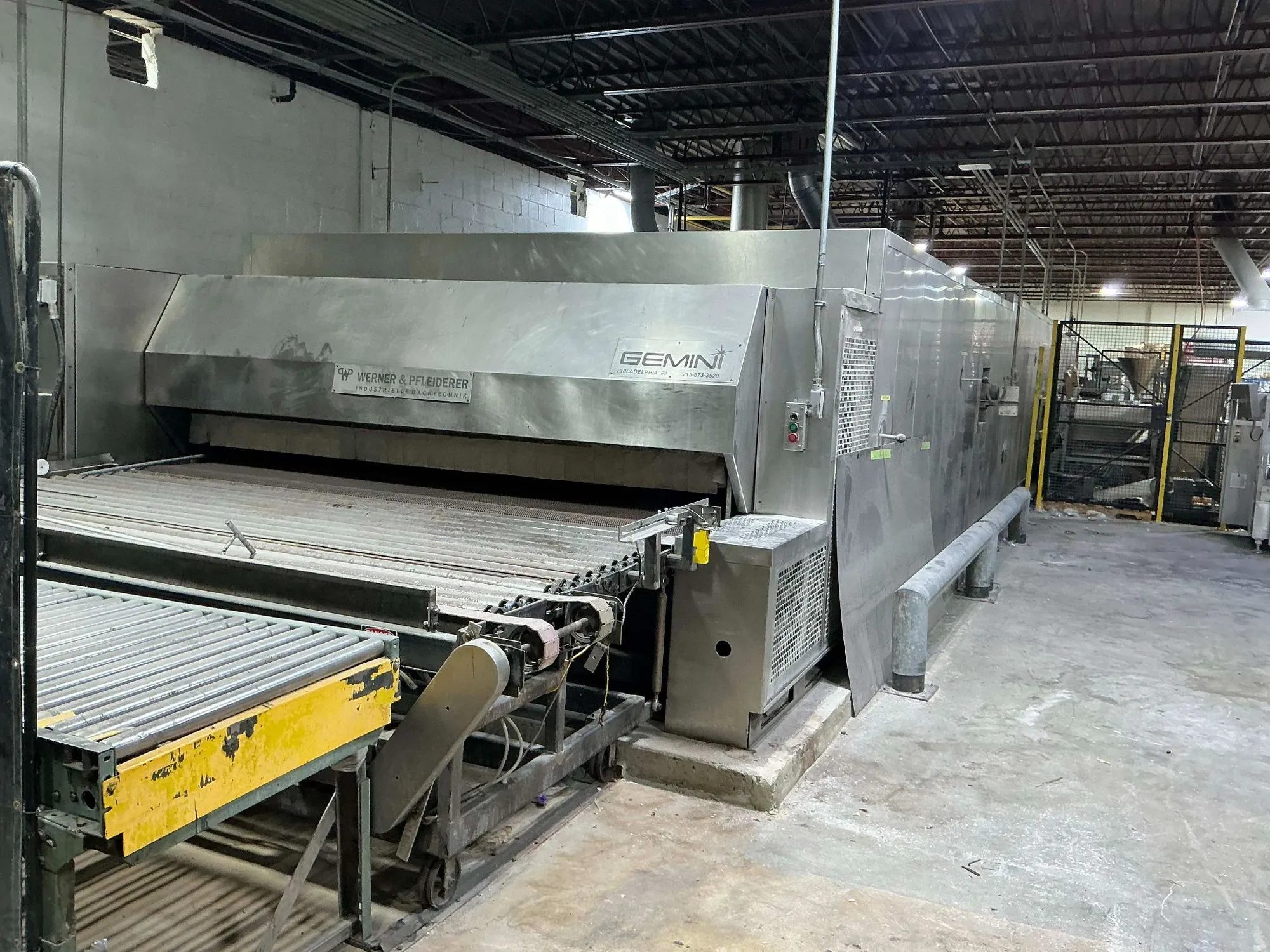

2003 WERNER & PFLEIDERER ECOTHERM AUTOMATIC TUNNEL OVEN
Manufacturer: Werner & Pfleiderer
Model: NUN-PLUS 3300/18
Mfg Date: 2003
POWER: 575v, 60hz, 3ph
Type & Configuration
Type of Oven: NUN-PLUS 3300
Operating Side: Left
Oven Style: Ecotherm tunnel oven
Band Type: Wire-mesh band
Burner / Heating
Fuel Type: Gas
Type of Burner / Supplier: Power Flame
Temperature Range: Approx. 70°C – 350°C
Number of Burners: 1
Number of Steam & Heating Zones: 1
Combustion Air Fan: Not integrated into burner
Number of Steam Discharge Fans: 3
Control Zones
Number of Control Zones: 3
Bake Time (min): 8 – 48 minutes
Steam
Steam Connection Requirement: Max. 0.5 bar above atmospheric
Steam Consumption: 240 kg/h
Baking Chamber
Length of Bake Chamber: 18,000 mm + 808 mm (61' ft)
Width of Bake Chamber: 3,300 mm
Height of Bake Chamber: 200 mm
Feeding & Discharge Sections
Length of Feeding Section: 1,200 mm
Length of Discharge Section: 1,650 mm
Interface: Allen Bradley Panelview 1000
Machine Dimensions: 65' x 15' x 8' ft
| Chamber-W | 129.92" | 3,300 mm |
| Chamber-L | 708.66" | 18,000 mm |
| Chamber-H | 7.874" | 200 mm |
| Max Temperature | 662°F | 350°C |
| Dimensions | 65' x 15' x 8' ft | 65' x 15' x 8' ft |
