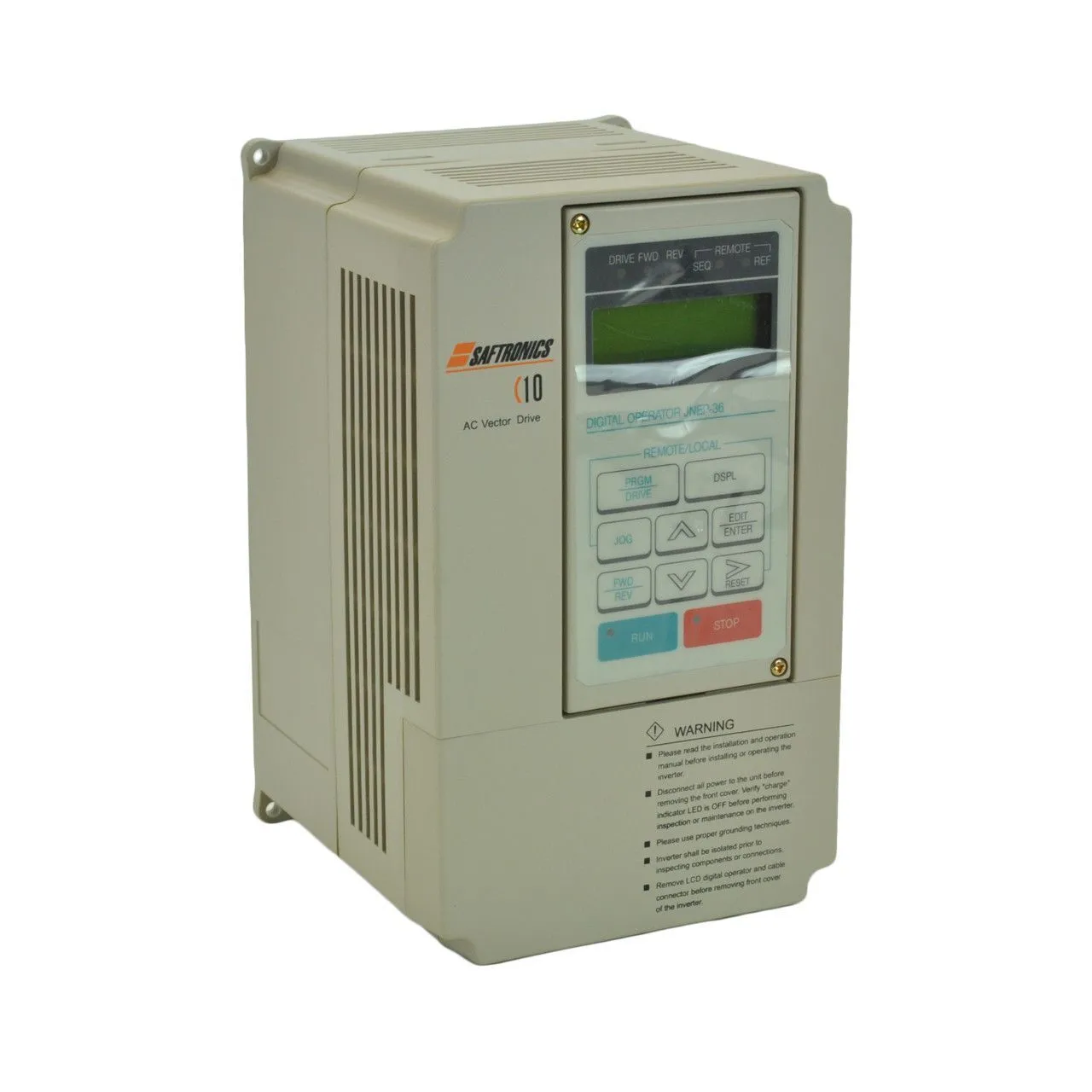

C10200-1-1, 1HP & 2HP 230V Saftronics VFD, Inverter, AC Drive. When versatility is needed across a range of customized OEM applications, the C10 series can be modified and personalized to your unique application using its Onboard Application Software. The C10 series drive has a strong set of standard attributes that are ideal for industrial situations.
| Capacity | 4.8 A | 4.8 A |
Model: C10200-1-1
Brand: Saftronics
Product Condition: New Surplus
Horsepower Rating: 1 HP, 2 HP
HP Rating @ 110% OL: 2 HP
HP Rating @ 150% OL: 1 HP
Rated Amps: 4.8 A
Amp Rating @ 110% OL: 5.6 A
Amp Rating @ 150% OL: 4.8 A
Rated Voltage: 230 V
Output Voltage: 230 V
Output Amperage Rating: 4.8 A
Phase Rating: 3 Phase Input - 3 Phase Output
Constant Torque / Variable Torque: Variable Torque
Phase: Three Phase
Enclosure Rating: UL Type 1
Series: C10
Height: 8.15 in
Width: 4.80 in
Depth: 5.65 in
