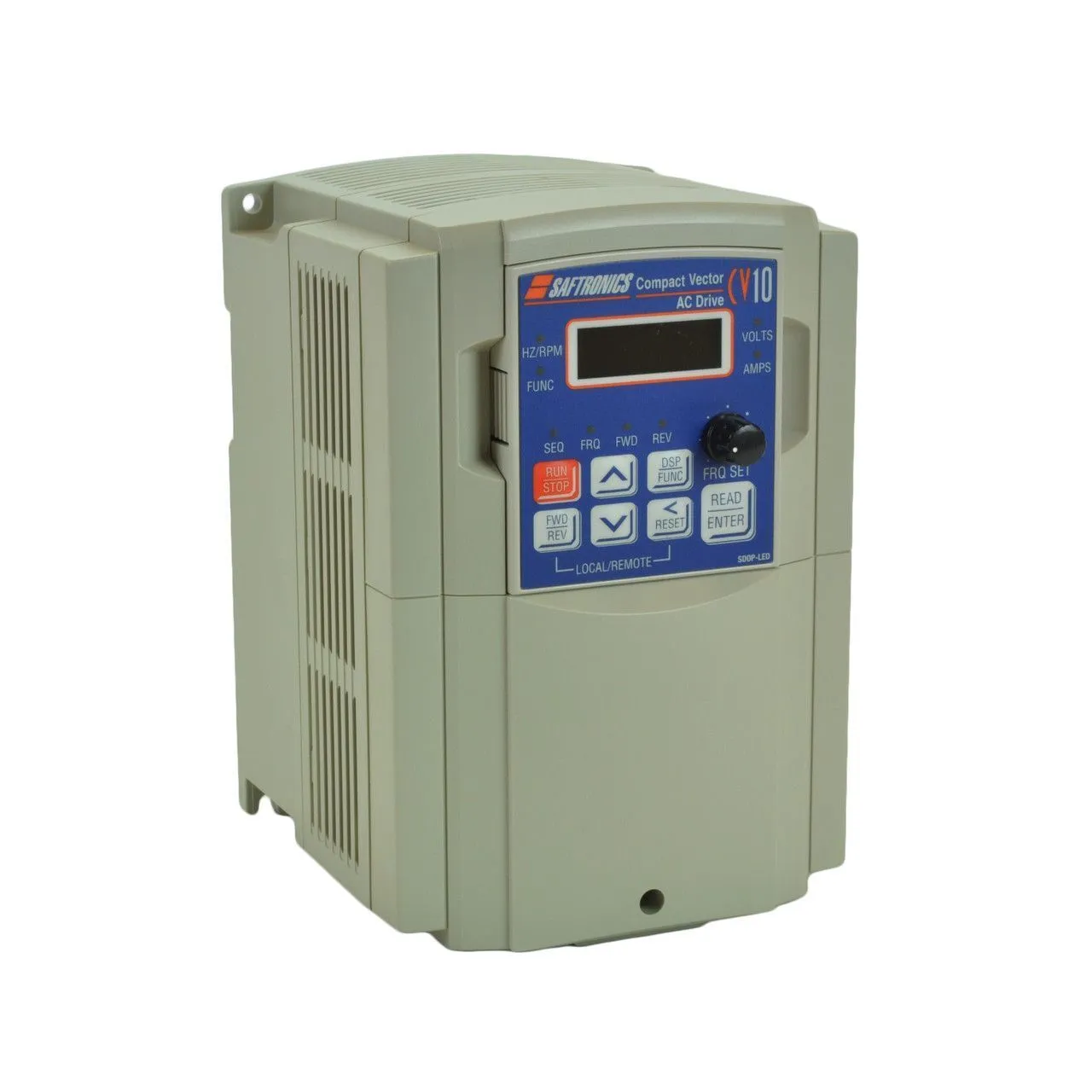

CV104015-9, 15HP 460V Saftronics VFD, Inverter, AC Drive. The CV10 offers both open sensorless vector control and V/Hz control modes, built-in PLC Smart Relay, motor auto tuning for optimal performance, a user friendly LED keypad with speed potentiometer and built-in Modbus RTU and ASCII.
| Capacity | 25 A | 25 A |
Model: CV104015-9
Brand: Saftronics
Product Condition: New Surplus
Horsepower Rating: 15 HP
HP Rating @ 150% OL: 15 HP
Rated Amps: 25 A
Amp Rating @ 150% OL: 25 A
Output Voltage: 460 V
Output Amperage Rating: 25 A
Phase Rating: 3 Phase Input - 3 Phase Output
Constant Torque / Variable Torque: Variable Torque
Phase: Three Phase
Enclosure Rating: IP 20
Series: CV10
Rated Voltage: 460 V
Height: 10.24 in
Width: 7.32 in
Depth: 7.68 in
