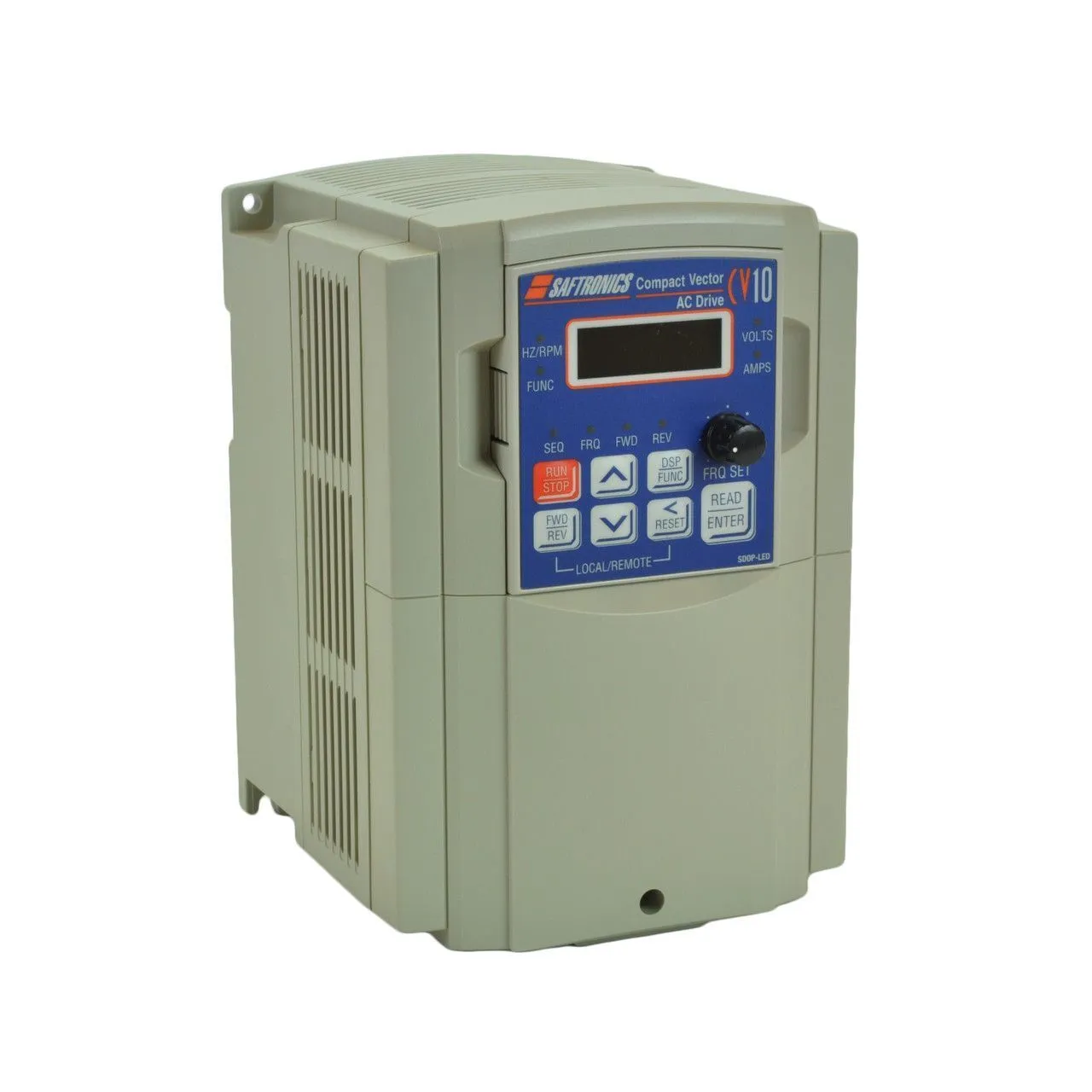

CV102007-9, 7.5HP 230V Saftronics VFD, Inverter, AC Drive. The CV10 offers both open sensorless vector control and V/Hz control modes, built-in PLC Smart Relay, motor auto tuning for optimal performance, a user friendly LED keypad with speed potentiometer and built-in Modbus RTU and ASCII.
| Capacity | 26 A | 26 A |
Model: CV102007-9
Brand: Saftronics
Product Condition: New Surplus
Horsepower Rating: 7.5 HP
HP Rating @ 150% OL: 7.5 HP
Rated Amps: 26 A
Amp Rating @ 150% OL: 26 A
Rated Voltage: 230 V
Output Voltage: 230 V
Output Amperage Rating: 26 A
Phase Rating: 3 Phase Input - 3 Phase Output
Constant Torque / Variable Torque: Variable Torque
Phase: Three Phase
Enclosure Rating: IP 20
Series: CV10
Height: 10.24 in
Width: 7.32 in
Depth: 7.68 in
