KOMATSU OBW-150-3 gap frame press, 1996 model, used. Features include a 7.87" stroke, 18.1" shut height, 29.9" x 82.2" bed dimensions, and 35-67 SPM speed range with an air clutch. Perfect for precision tasks.
| Stroke | 7.87" | 199.9 mm |
| Shut Height | 18.1" | 459.74 mm |
| Bed W | 29.9" | 759.46 mm |
| Bed L | 82.2" | 2,087.9 mm |
| SPM | 0 strokes/min. | 0 strokes/min. |
| Air Clutch (Yes/No) | Yes | Yes |
| Dimensions | 89LR x 82.3FB x 139.8H | 89LR x 82.3FB x 139.8H |
| Weight | 55000 | 55000 |

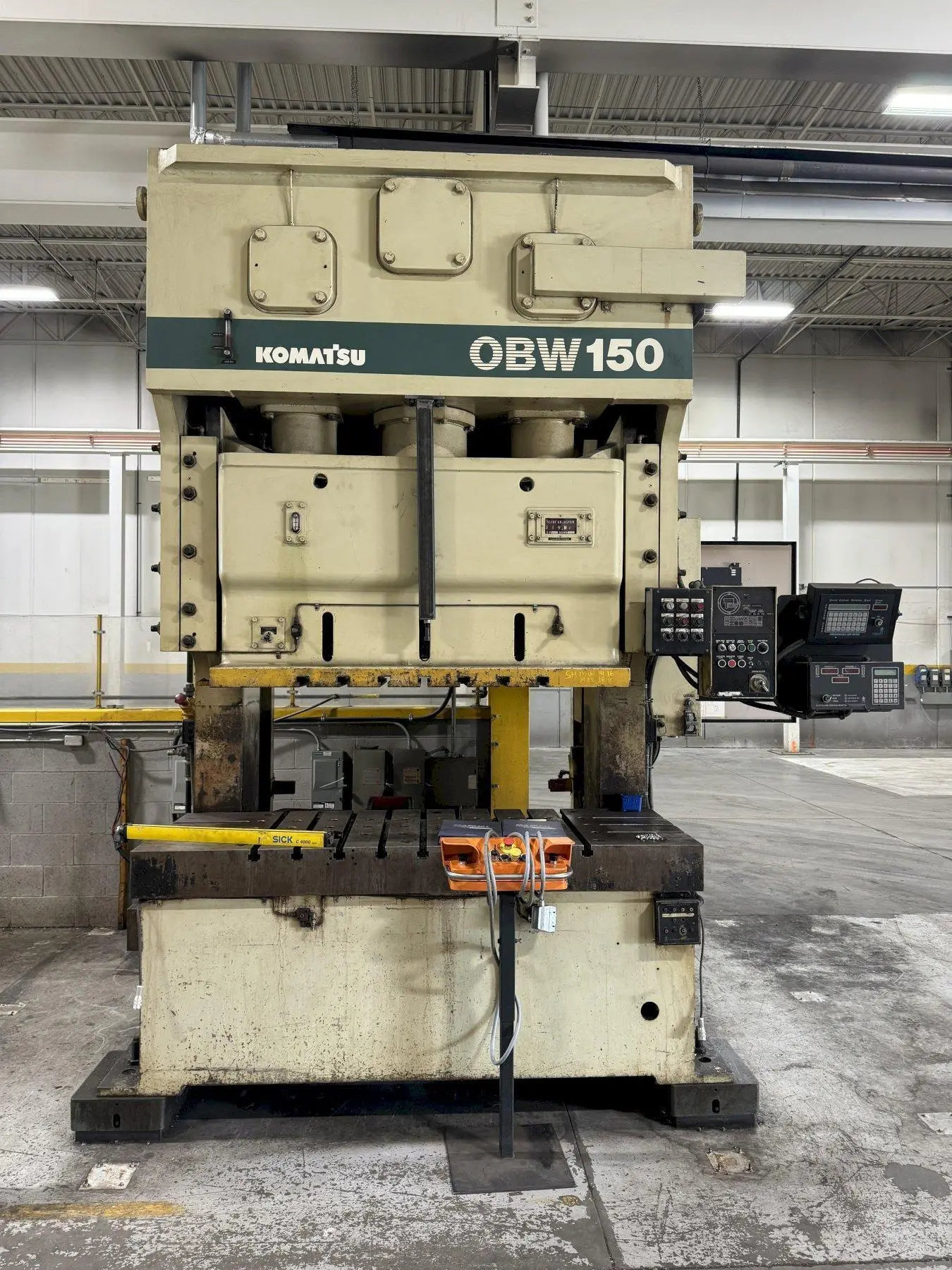

KOMATSU OBW 150-3 DOUBLE CRANK GAP FRAME PRESS
S/N 10040 YEAR: 1996
SPECIFICATIONS
Stroke....................................7.87”
Bolster S.D.A.U...........................18.11”
Bolster Plate.............................82.2”x 29.9”x 6.69”
Ram Area..................................63”x 22.8”
Ram Adjustment............................3.94”
Speed.....................................35-67 SPM
Distance Between Uprights.................63.75”
Weight....................................55,000 LBS
Dimensions.............................89”LR x 82.3”FB x 139.8”H
EQUIPPED WITH
Air clutch & brake.
Air counterbalance.
Hydraulic overload protection.
(3) Knock-out slots in ram.
7” T-slotted bolster plate.
Inch / single / continuous.
T-stand palm controls.
Light curtains.
Vibro foot pads.
T-Slotted ram.
Safety block.
Link model 1100 tonnage control.
Specifications are deemed accurate, however, subject to verification or prior sale.
