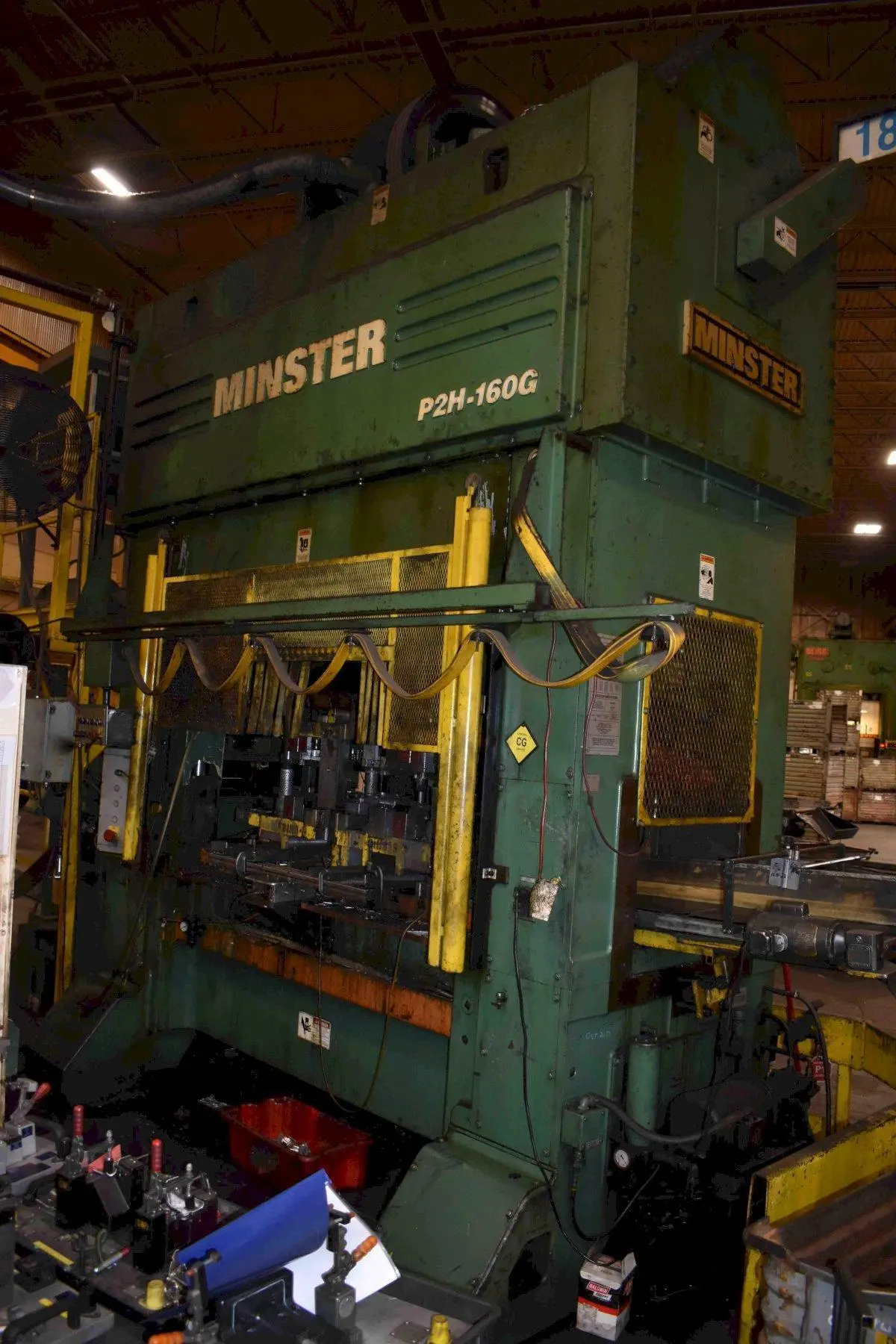

USED MINSTER P2H-160G

2003 MINSTER P2H-160G straight side double crank press. Features: 180-tonnage, 7.87" stroke, 19.68" shut height, 120 SPM, vari-speed, 80" x 145" bed. Ideal for high-capacity operations.

180 TON MINSTER P2H-160G HIGH SPEED STRAIGHT SIDE PRESS
S/N P2H-160G-29871 YEAR: 2003

SPECIFICATIONS
Capacity..................................180 Ton
Stroke....................................7.87”
Slide Adjustment..........................5.91”
Shut Height...............................19.68”
Boster & Slide Area.......................74.8”LR x 33.5” FB
SPM Variable..............................0-120
Windows Width.............................24.80”
Dimensions................................145”LR x 80”FB x 186”H
Weight....................................77,000 LBS

EQUIPPED WITH
Minster press control with (PMC) production management control.
4.92” Thick T-slotted bolster.
63”x 9.80” Opening in bed (not in bolster) per catalog.
46.40 Floor to top of bolster.
40 HP Motor, 1765 RPM.
480 V / 3 PH / 60 Hz.
Integral press shock mounts.

Specifications are deemed accurate, however, subject to verification or prior sale.
