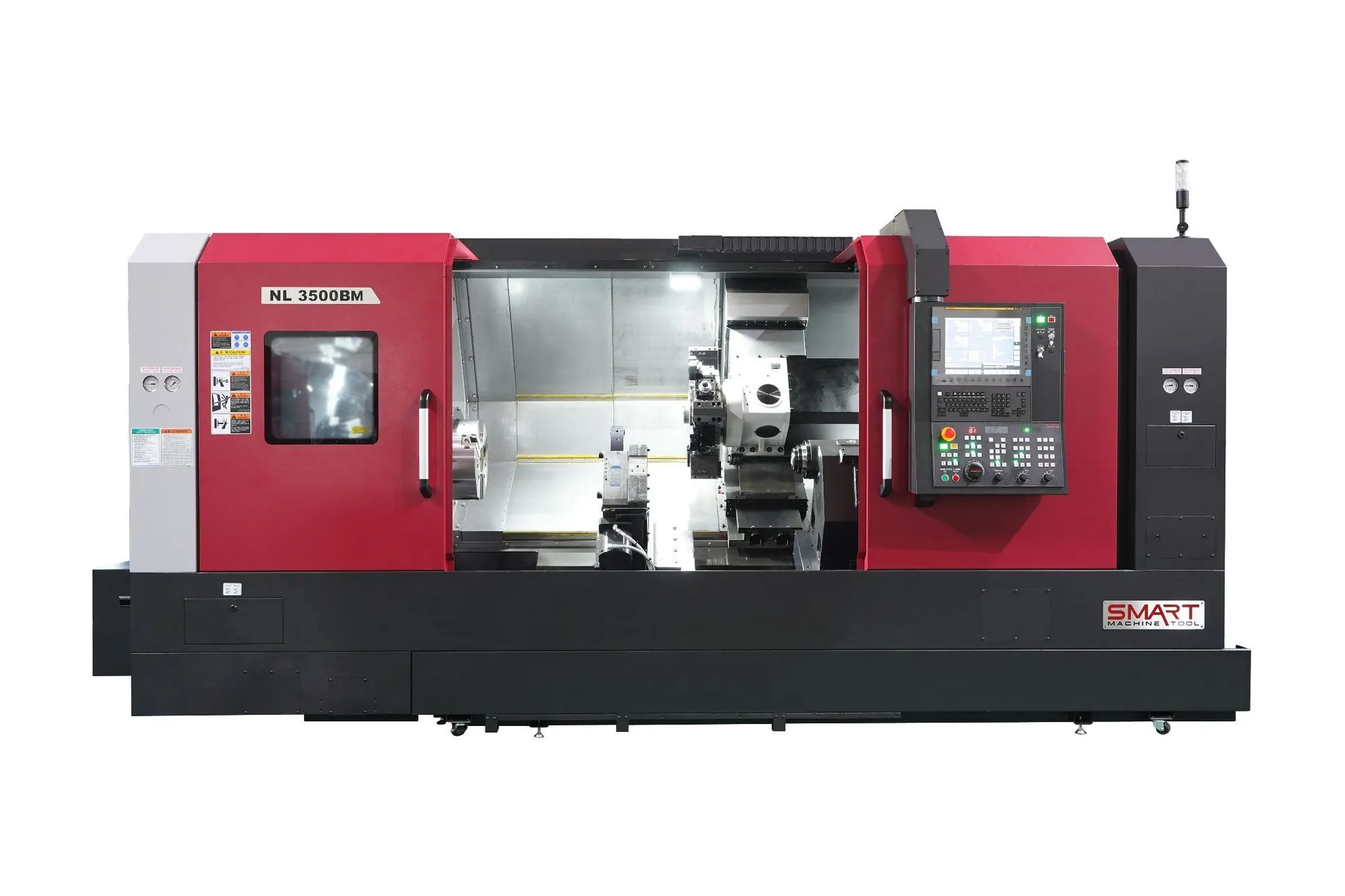

NEW SMART MACHINE TOOL NL 3500B(M)

CAPACITY
Swing over the bed 31.5”
Maximum turning diameter 20.08”
Maximum turning length 59.63”

MAIN SPINDLE
Chuck Size 15”
Spindle nose A2-11
Main spindle motor 47 hp
Spindle speed 2,000 rpm
Draw Tube ID 4.6”

BED SLIDE & CARRIAGE
Travels (X / Z) 12.01” / 61.81”
Guide ways Box Way
Bed structure 30o Slant bed

TURRET
Number of tool stations 12 tools (BMT65)
Turret indexing speed (1 station) 0.25 seconds

TAILSTOCK
Tailstock travel 59.06"
Quill diameter 5.51"
Quill travel 4.72"
Tailstock center (Taper) MT #5

MACHINE SIZE
Floor space requirements w/conveyer (L x W) 212.6” x 81.9”

CNC Model Fanuc 0i-TF Plus (15” touch screen)

Included Packages
SMART PACKAGE:
•Tool Presetter
•Oil Skimmer
•Manual Guide i
•(1) X-Axis Live Tool Holder (*M Only)
•(1) Z-Axis Live Tool Holder (*M Only)

SMART VALUE PACKAGE:
•Chip Conveyor - Side Discharge
•140 PSI Coolant Pump
•1 Set of Hard Jaws
•3 Sets of Soft Jaws
•3 Color Tower Light
