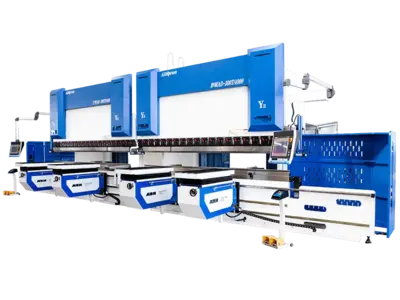

NEW 2024 ADH WAD-500T/8000

2025 ADH 500Ton Hydraulic Press Brake, Bend Length 314.6" Bending Thickness Mild Steel 8mm
About ADH EMPLOYEES: 617 SALES & SERVICES OFFICES: 67 R & D TECHNICAL: 43
Founded in March 2002, Anhui Donghai Machine Tool Co., Ltd. (Brand: ADH) is a high-tech enterprise specializing in the production of press brake, hydraulic guillotine, fiber laser cutter etc. ADH is a comprehensive leading enterprise in the machine tool industry in China, which integrates automatic control system design, new product research and development, and equipment manufacturing innovation platform formation. Our factory is located in Bowang District, Ma'anshan City, Anhui Province, only 30 kilometers away from Nanjing Lukou International Airport and can be reached within 30 minutes by car.

Bending Force KN 2*5000
Bending Length mm 2*8000
Bending Thickness Mild Steel mm 8
Stainless Steel mm 4.5
Upright Distance mm 2*6300
Throat Depth mm 2*500
Stroke mm 2*300
Open Height mm 2*610
Fast Speed mm 85
Working Speed mm 8
Return Speed mm 95
Machine Tool

Accuracy
Slider repeat accuracy mm ≤±0.03
Slider positioning accuracy mm ≤±0.03
Repeat positioning accuracy of backgauge mm ≤±0.05
Workpiece straightness mm/m 0.5
Bending angle error ° <±0.5
Grating Ruler Resolution mm 0.005
Hydraulic Oil Standard / #46 Antiwear
hydraulic oil
Main Motor Kw 2*37
Weight Ton 2*60
Dimensions L×W×H mm 18000*3770*3640
Power supply 380V/50HZ/3PH
(As customer requirement)
Dimensions 6300 x 2700 x 3900
Weight 77 Tons

Controller DA53T from Netherlands

Backgauge Axis 4+1 (Y1, Y2, X, R+V)
Hydraulic Valve Rexroth from Germany
Hydraulic Gear Pump Voith from Germany
Grating Ruler Fagor from Spanish
Main Motor Normal Type Siemens from Germany/WN from China
Electrical Components Schneider from France
Crowning Motorized Crowning
Ball Screw and Linear Guide PMI/PYM from Taiwan
Servo Motor/ Servo Drive Estun from China
Tubing Connector JS/EMB from Germany
Clamps Press Clamp
Pedal Switch Roller Type from China
