1200 l Used vertical stainless steel storage tank

Overview
Stock #:
U2473-4
Description

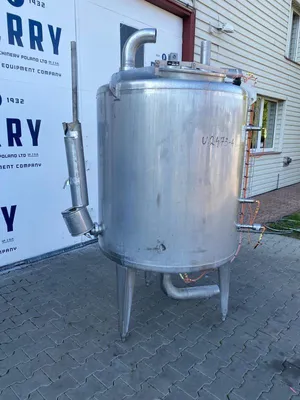

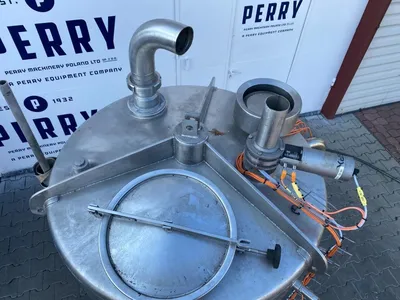

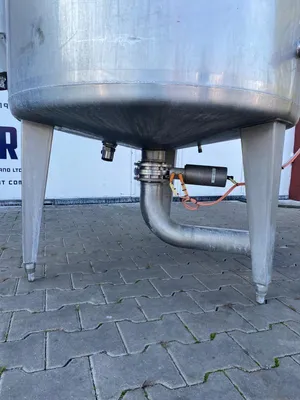

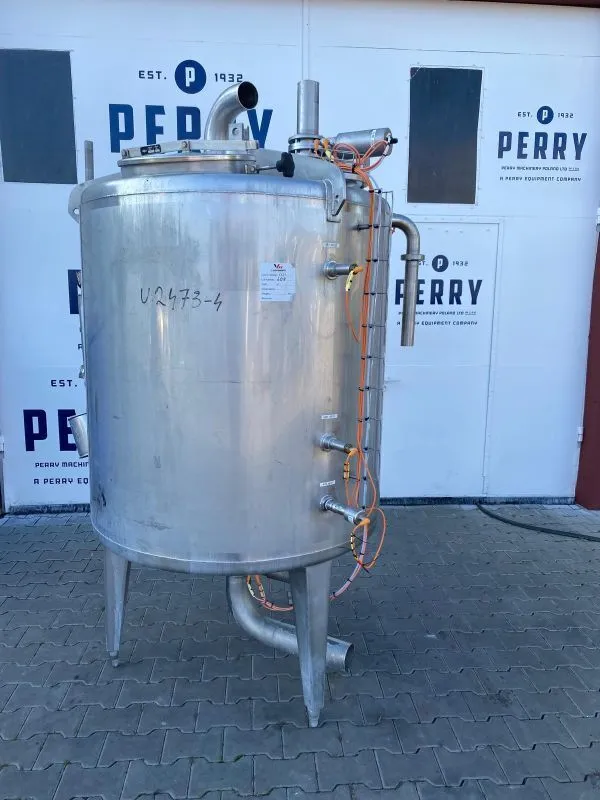

Used vertical stainless steel storage tank. Total volume 1200 l. Internal dimensions: diameter 1120 mm x length of straight side of wall 1200 mm. Tank has top and bottom welded. At the top there is a manway with bolted lid, diameter 400 mm. Bottom slightly conical with central discharge outlet, equipped with pneumatically operated valve. Tank is equipped with 3 level sensors mounted on side wall, top feeding pipe with pneumatical valve, side wall feeding pipe and bottom side wall steam feeding pipe with nozzle. Tank has 3 stainless steel legs. Last time used in dairy industry.

Specifications
Capacity300 gal1,135.6 L
Diameter1,120 mm3.67'
Type of stainless304304
Vertical/HorizontalVV
Legs/Lugs/SkirtLegsLegs
