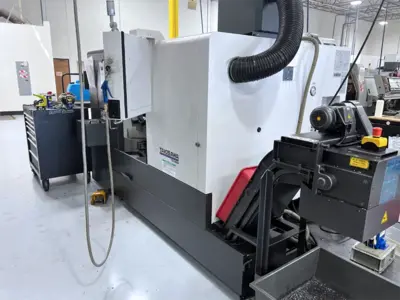

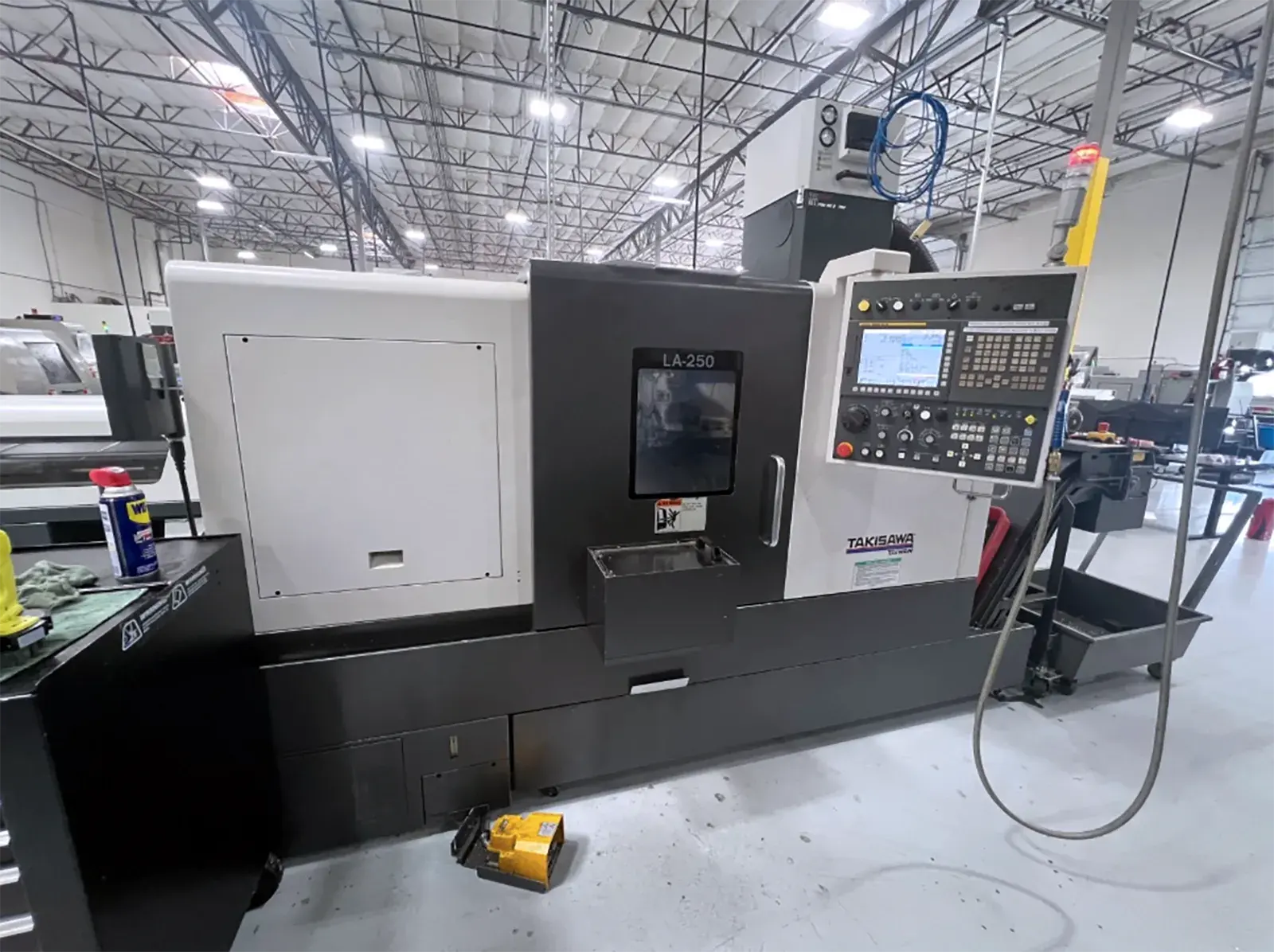

USED 2018 TAKISAWA LA-250

Distance Between Center: 34.6”
Max Turning Diameter: 17.7”
Max Turning Length: 30.1”
Bar Capacity: 3”
X-Axis Stroke: 10”
Z-Axis Stroke: 31.5”
Spindle Speed: 3,500 rpm
Spindle Nose: A2-8
Spindle Bearing Diameter: 4.7”
Turret Stations: 12
Weight of Machine: 10,925 lbs
Size of Machine (L x W x H): 115” x 77” x 71”
Standard Chuck Diameter: 10”
Spindle Thru-Hole Diameter: 3.4”
Spindle Motor (30 min/continuous): 25/20HP

Tailstock
Chip Conveyor
Tool Holders
Chuck Foot Switch
Leveling Pads (1 set)
Auto Lubrication System
Instruction Manual
