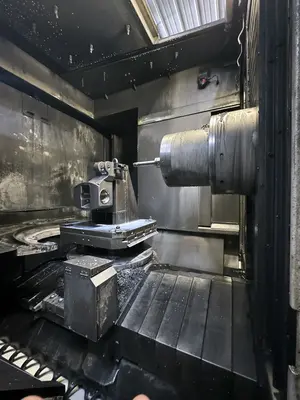

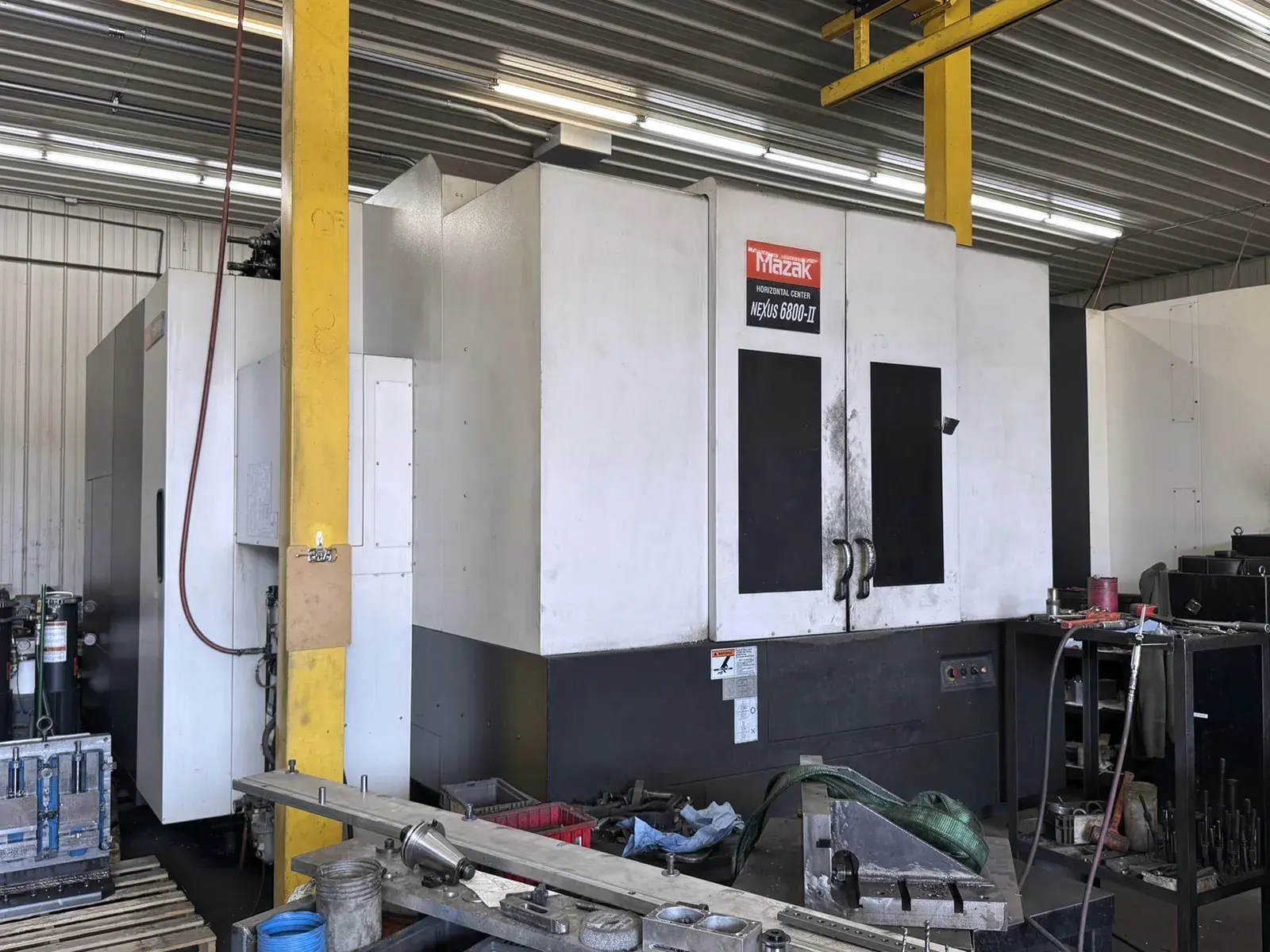

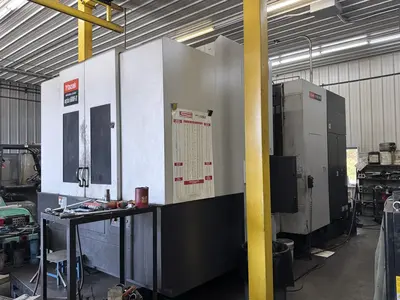

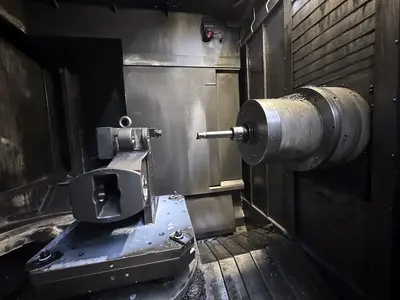

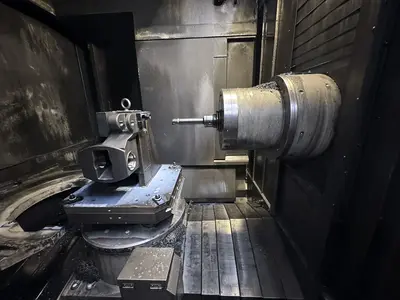

USED 2008 MAZAK HCN 6800

Pallet Dimension: 24.8” x 24.8”
Pallet Load Capacity: 3306 lbs

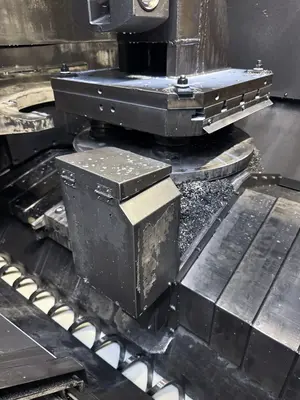

Table Index: 1 Degree / 360 Positions
Max Workpiece Diameter: 41.34”
Max Workpiece Height: 51.18”
X-Axis Travel: 41.34”
Y-Axis Travel: 35.43”
Z-Axis Travel: 38.58”
Spindle Taper: CAT 50
Spindle Speed: 8,000 RPM
Rapid travel: 2362 IPM
Chip To Chip Time: 4.2 – 4.6 sec
Machine Dimensions: 226” x 129” x 133
Machine Weight: 41,887 lbs
Distance from the Spindle End to the Pallet Center: 3.94” – 42.52”
Distance from the Spindle Center to the Pallet Top: 3.94” – 39.37”
Main Motor50HP: 30-min / 40HP Cont.
Max. Cutting Feed Rate: 2362 IPM
No. of Tool Pockets: 60

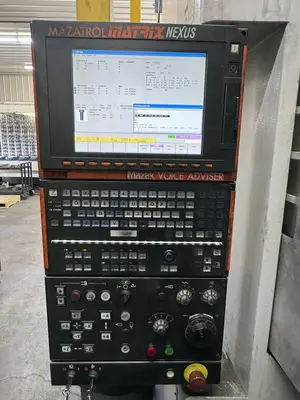

MAZATROL MATRIX Nexus Control
8000RPM Hi-Torque Spindle
60 Tool Chain Magazine

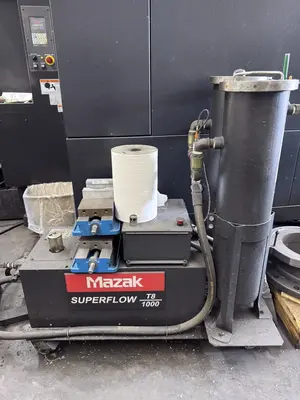

Mazak Super Flow T8 – 1000 PSI
Mazak Monitoring System B – Optical OMP60 Probe
EIA Inspection Plus Probing Software
Index Table 1 Deg/360 Positions

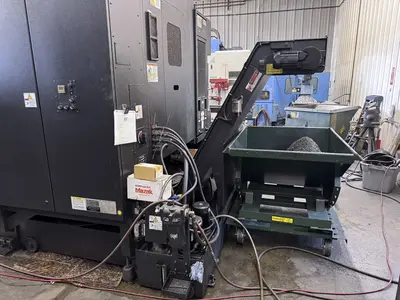

Chip Conveyor
Rear Disposal
