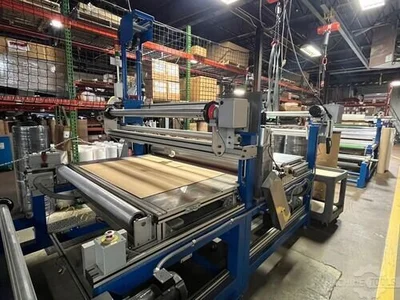

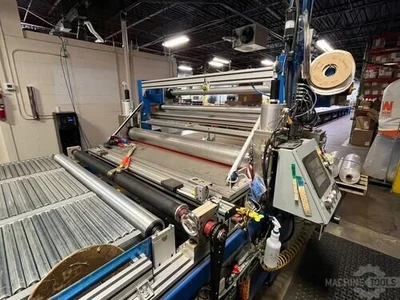

USED 2013 ADVENT DESIGN CORPORATION 6294-1

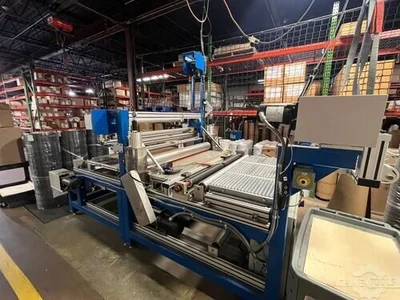

Advent Design Corporation 6294-1 Laminator 60" Wide

General Info

Stock #: 181250025
Location: Philadelphia, PA
Brand: Advent Design Corporation
Model: 6294-1
Year: 2013
Approx. Shipping Dimensions: 11' L x 7' W x 9' H
Loading Fee: Rigging Required

Specifications

Key Features: Dual unwinds with Adhesive & Substrate Air Shafts
Key Features: Edge Guide Sensors for both adhesive and substrate for precise alignment
Key Features: Integrated HMI & Gage Display for real-time process monitoring
Key Features: Cut guides for both adhesive and substrate
Specifications:: Can laminate material up to 60" wide
Specifications:: Overall dimensions are 11' L x 7' W x 9' H
Electrical Volts:: 208/120
Phase:: 3
Amps:: 30
Hertz:: 60
Applications:: Multi-layer lamination of elastomers, foams, and films, PSA application with accurate edge alignment

Equipped With
Raw material and finished product work pieces: Substrates are supplied in rolls wound on 3-inch ID cardboard cores. Rolls are from 24 inches to 54 inches wide with up to 22-inch maximum OD. Thickness ranges from 0.005-inch film up to 0.50-inch foam, and the maximum roll weight is 200 pounds. Adhesive is supplied in rolls wound on 3-inch ID cardboard cores. Rolls are from 24 inches to 54 inches wide with up to 14-inch maximum OD. Thickness is 0.005 inch to 0.020 inch, and the maximum roll weight is 300 pounds.

Additional Info
Inspection Upon Request
