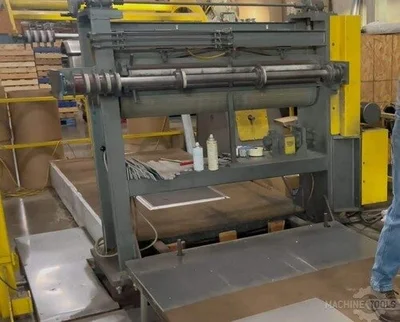

USED STRILICH 17553040002
Overview
Description

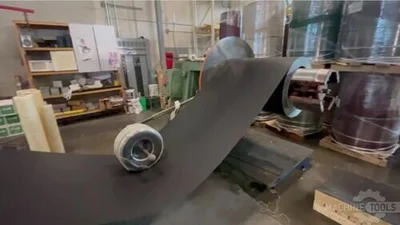

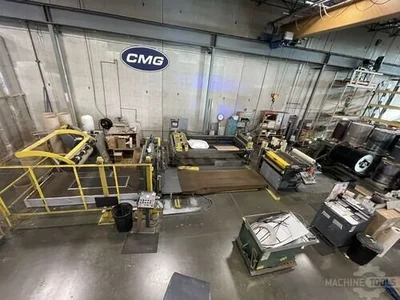

Strilich 17553040002 48" x 20,000 Lb Metal Slitting/Cut to Length Line
Specifications
General Info
Stock #: 211250030
Brand: Strilich
Model: 17553040002

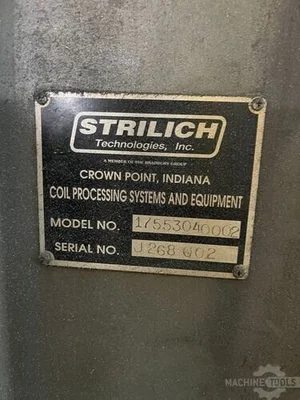

Serial #: J268002
Specifications
Max Coil Weight: 20,000 lbs
Coil Width: 48"
Coil OD: 60" Max
Coil ID: 16" min - 20" max
Material Thickness: .012" - .048"
Material Yield: 50,000 PSI Max
Length Accuracy: +/- 1/32"
Line Speed: 120 FPM Max Roll Speed
Cut Length: 24" Min - 120" Max
Max Shear Cuts: 20 Cuts per Minute
Line Direction: Right to Left
Pass Line Height: 40"
Stack Height: 18" less skid
Stack Length: 120"
Stack Weight: 10,000 lbs
Equipped With

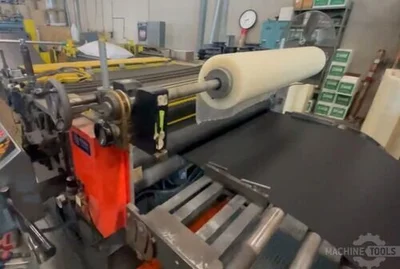

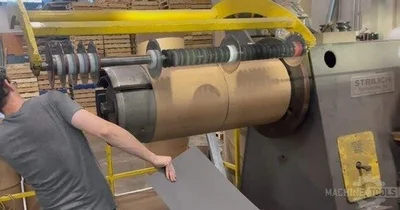

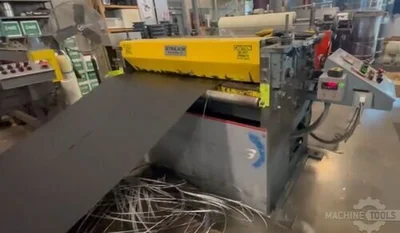

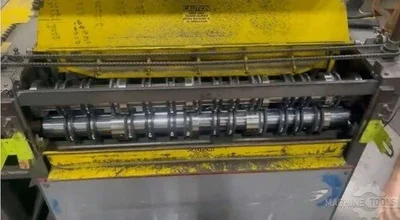

Uncoiler, Zero Point Entry Edge Guides, Vinyl Applicator, Shear, Slitter Head with Bolt on Tooling and Knives, Blank Stacker and Strip Separators, Tension Stand and Recoiler (16"/20").
