USED 1997 BLOW SC2-400-108-54

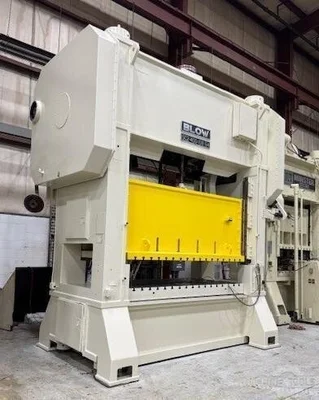

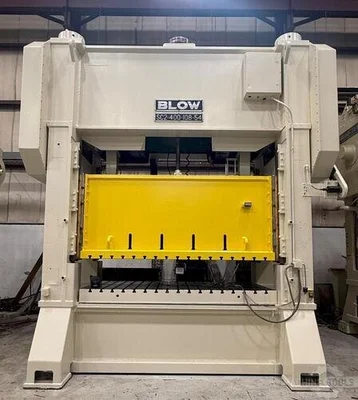

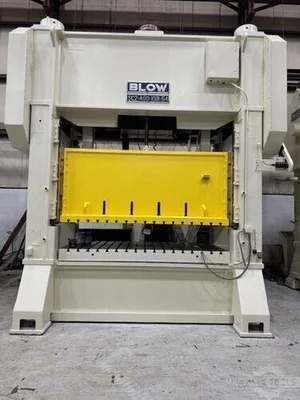

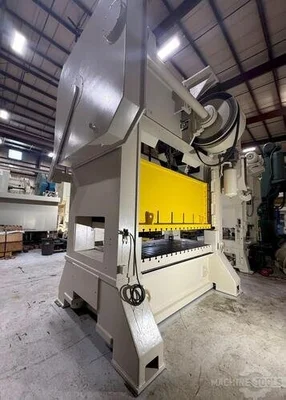

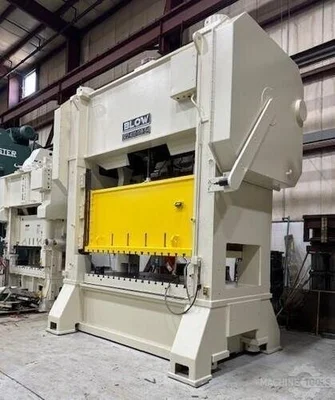

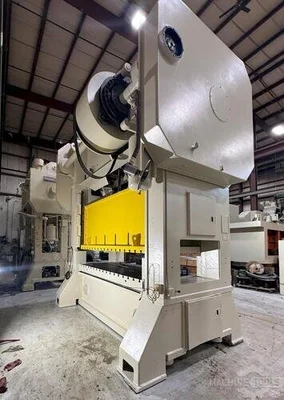

400-ton Blow SC2-400-108-54 Straight Side Mechanical Stamping Press For Sale, Year 1997

Tonnage: 400
Stroke: 10 inches
Shut Height: 35 inches
Adjustment: 12 inches
Bed Size: 108" LR x 54" FB
Ram Area: 108" LR x 54" FB
SPM: 20-60 VSPM

Standard SpecificationsUsed Blow Straight Side Mechanical Press400-ton Blow Model # SC2-400-108-54Serial Number SDG-400-443-97400-ton Capacity @ .5" off Bottom10" Stroke35" Shut Height over Bed (SDAU)28" Die Height over Bolster (SDAU) 10" Motorized Adjustment108" LR x 54" FB Bed Area108" LR x 54" FB Slide Area20-60 VSPMEquipment and FeaturesAir Clutch and BrakeAir CounterbalancesRecirculating Lube SystemT-Slotted Ram and Bolster 7" Thick Bolster PlateHydraulic Tie Rod NutsOmni-Link II LCD Operator TerminalFree Standing Console Controls38" Wide WindowsVibro Dynamic Isolator PadsFloor StandingWeight:  148,000 lbs.Overall Height: 221.5" TallThis Used 400-ton Blow Press can be seen under power upon request in the S & G Press Livonia MI Warehouse!
Premium Used 400-Ton BLOW Straight Side Press for Sale Maximize your production with this heavy-duty, Used 400-Ton BLOW Straight Side Mechanical Press for sale at S & G Press. Ideal for demanding metal stamping and high-precision progressive die operations, this double crank press (Model SC2-400-108-54) offers superior rigidity and consistency necessary for large-scale manufacturing.
The core advantage of this machine is its massive work area and robust construction. The 108" LR x 54" FB Bed and Slide Area accommodates oversized tooling and complex, multi-stage progressive dies, making it perfect for industries like automotive component production.
Advanced Features for Modern Operation
This used mechanical press is equipped with features that ensure high efficiency and control. It includes a responsive Air Clutch and Brake system, Air Counterbalances, and a modern Omni-Link II LCD Operator Terminal housed in a free-standing console. The structural integrity is enhanced by Hydraulic Tie Rod Nuts, a 7" Thick Bolster Plate, and Vibro Dynamic Isolator Pads, guaranteeing stable performance even at maximum tonnage.
The press is available for immediate inspection and can be seen under power at the S & G Press Livonia, MI Warehouse. This is an exceptional opportunity to acquire a versatile, high-tonnage straight side press ready for integration into your production line.
Contact us to request a quote for this reliable 400-Ton BLOW Stamping Press today!
