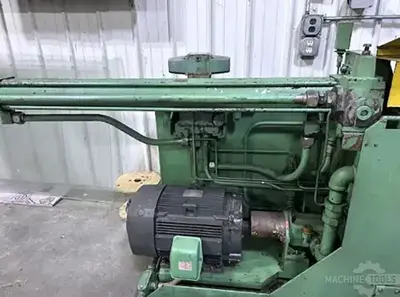

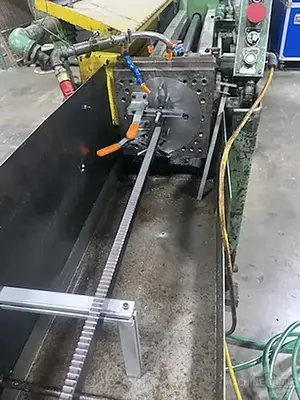

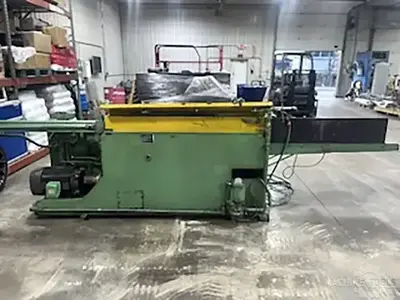

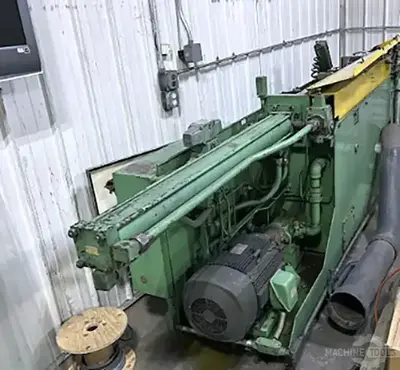

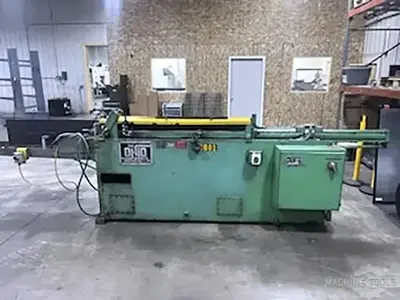

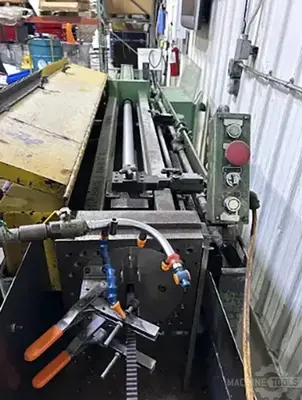

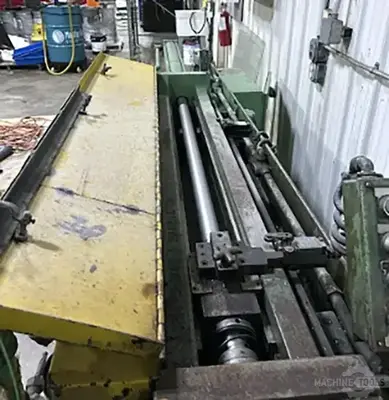

USED 1976 OHIO 5 TON HORIZONTAL PULL BROACH

Tonnage: 5
Stroke: 48"
Cat No. HG 79338:
CYLINDER BORE DIAMETER: 4"
Cylinder Rod Diameter: 2"
Broaching Speed: 40 FPM
Return Speed: 120 FPM
Hydraulic Pump Flow: 21 GPM
Hydraulic Tank Capacity: 70 Gallons
Coolant Tank Capacity: 30 Gallons
Drilled & Tapped Mounting Plate: 15" x 15"
Dimensions (L x W x H): 178" x 45" x 65"

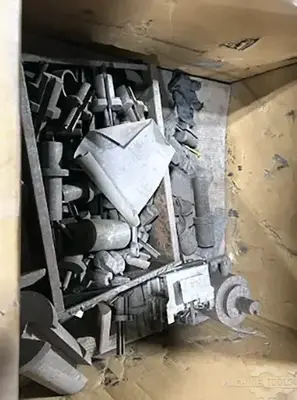

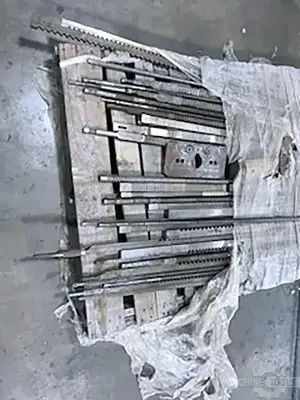

Extra broaches to be included with machine
Ohio Horizontal Broaching Machines with the “HC” model designation utilize a close-grained- high-tensile- one-piece cast iron guide head. Machines with the “HF” model designation employ a continuously welded and thermally stressed relieved fabricated steel guide head. Each is designed and constructed to assure the rigidity and stability required for precise tool tracking. And each model uses hardened and ground alloy steel machine ways to guide the machine pull head

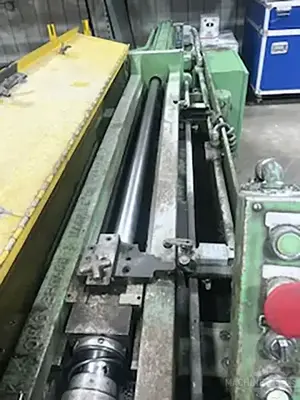

The machine pull heads on Ohio Horizontal Broaching Machines are equipped with precision ground wear pads that are easily accessible for replacement when necessary. All pull heads can easily be adjusted for vertical tool alignment with the industry standard 2-inch - 8-pitch female thread for broach puller attachment. The rapid return of the broach pull head to its starting position is a welcome standard feature on all our horizontal broach machine models


Can be used to make keyways- squares- hexes etc-  will accept any sized round broach stem depending on what "guide head" you have purchased for the machine.
