60-position ATC| Through Spindle Coolant| B-Axis Contouring
X-Axis Travel: 66.93"
Y-Axis Travel: 55.12"
Z-Axis Travel: 48.82"
Maximum Work-Piece Size: 77.56" x 59.84"
Number of Pallets: 2
Pallet Size: 49.21" x 49.21"
Pallet Indexing: 0.001 Degree
Weight Capacity: 6600 Lbs.
Spindle Center To Table Top: 2.76"-57.87"
Spindle Nose to Table Center: 14.17"-62.99"
Spindle Speeds: 8,000 RPM
Spindle Taper: #50 CAT
Spindle Motor: 40 HP
Tool Changer: 60 ATC
Maximum Tool Diameter: 4.53" / 10.63"
Maximum Tool Length: 23.62"
Maximum Tool Weight: 55 lbs
Rapid Traverse, (X,Y & Z): 1889 IPM
Machine Weight: 72,000 lbs

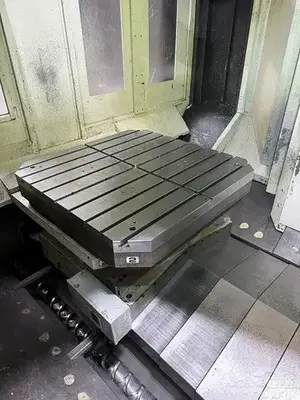

(2) 49.21" x 49.21" Pallets
Full B-Axis Pallet Contouring/Rotation
60-Position Automatic Tool Changer
Through Spindle Coolant (1000 psi)
Blum Laser Auto Tool Length Measurement
Tool Breakage Detection
Rigid Tapping
Renishaw Touch Probe
Manual Pulse Generator
Dual Chip Augers

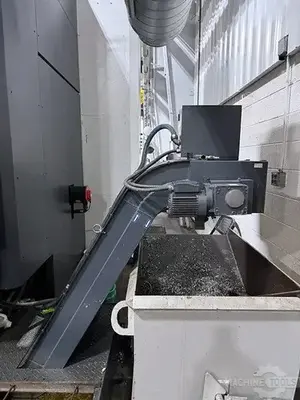

Hakusan Chip Conveyor (Left Rear Exit)

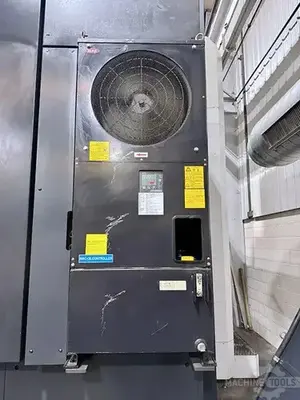

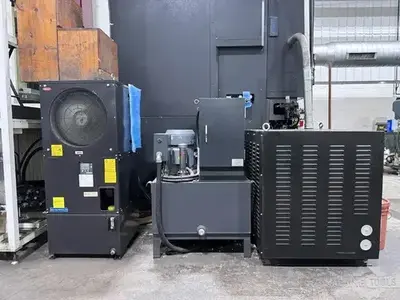

Spindle Chiller Unit
Multi-Tap Transformer
Three Color Tower Light
B-Axis Linear Scales
Dual Position Feedback
