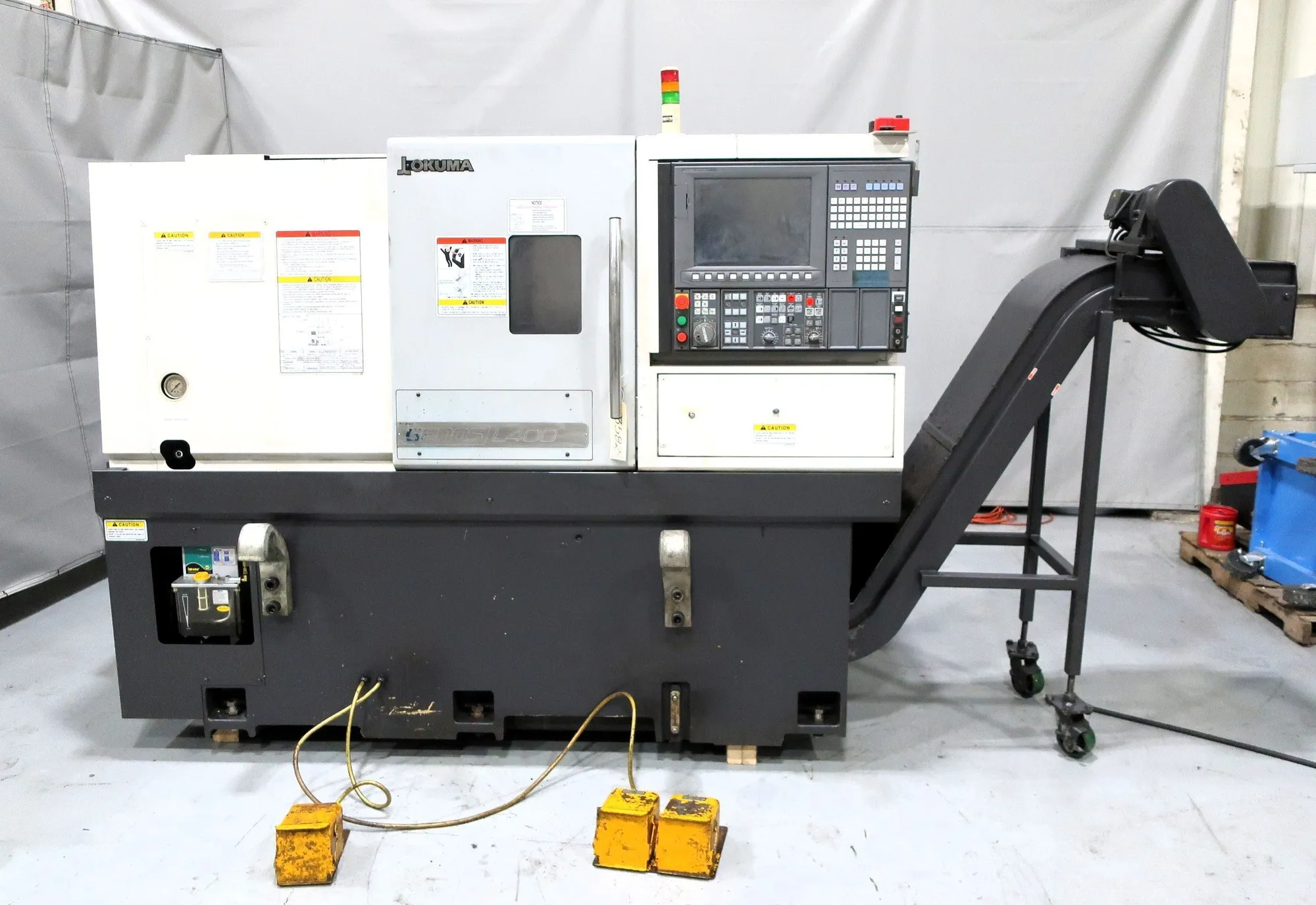

OKUMA GENOS L400 2-AXIS CNC TURNING CENTER LATHE, 4200 HOURS, COLLET CHUCK, 12 POS TURRET, TOOL SETTER, CHIP CONVEYOR OSP 300L-R CNC
| Swing | 20.47" | 519.94 mm |
| Machining Length | 19.69" | 500.13 mm |
| Chuck Size | 10" | 254 mm |
| Power | 20 hp | 14.9 kW |
| Max RPM | 3,000 RPM | 3,000 RPM |
| Turning Dia | 12.2" | 309.88 mm |
| Tailstock | Yes | Yes |
OKUMA GENOS L400 CNC 2-AXIS TURNING CENTER LATHE
Swing: 20.47"
Turning diameter: 15.35"
Center distance: 19.68"
Chuck size: 10"
Bar capacity: 3.14"
X axis travel: 8.66"
Z axis travel: 20.47"
Rapid traverse (x/z): 787/985 ipm
Spindle nose: A2-8
Spindle speed: 3,000 rpm
Main motor: 20 hp
Turret capacity: 12
Machine weight: 10,150 pounds
OSP-P300L-R Control
Collet Chuck
Chip conveyor
Turret tool holders
Tailstock
Coolant system
