ACRA 28000SET Precision Gap Bed Engine Lathe has a 28" swing and 60" - 280" distance between centers.25 HP x 4P, 230/460V AC /3PH Spindle Drive Motor. Made in Taiwan - High Quality!
| Lathe Type | Precision Engine | Precision Engine |
| Swing Over Bed | 28" | 711.2 mm |
| Distance Between Centers | 280" | 7,112 mm |
| Spindle Bore | 6.02" | 152.91 mm |
| Spindle Nose | A2-11 | A2-11 |
| Motor | 25 hp | 18.6 kW |
| Phase | 3 | 3 |
| Voltage | 230/460v | 230/460v |
| Dimensions | 355" x 63" x 75" | 355" x 63" x 75" |
| Weight | 21,800 lbs. | 21,800 lbs. |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts

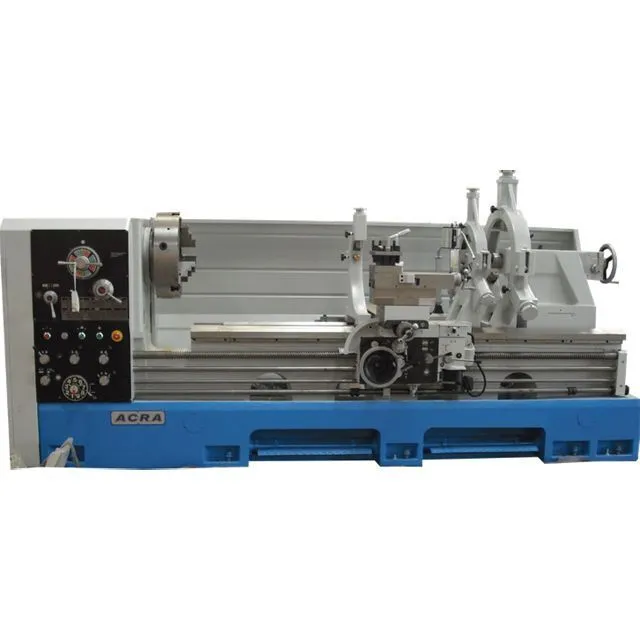

Machine Photo May Include Optional Equipment
Product image is only a representation, actual product appearance may differ slightly
OPTIONAL ITEMS - CALL FOR PRICE:
Steady Rest (20")
Steady Rest (24")
Face Plate
Taper Attachment
Installation Taper Attachment
Change 6" to 9" A2 15 Nose
Change 6" to 10" A2 15 Nose
Newall Digital Read-Out-60" DP700
Newall Digital Read-Out-60" NMS30
Newall Digital Read-Out-80" DP700
Newall Digital Read-Out-80" NMS300
Newall Digital Read-Out-120" DP700
Newall Digital Read-Out-120" NMS300
Newall Digital Read-Out-160”
Newall Digital Read-Out-200”
Newall Digital Read-Out-240”
Auto Rapid Threading Device
Acu-Rite Digital Read-Out-60" 80"/120" VU
Acu-Rite Digital Read-Out-80" 60"/80"/120" 200S
Sony
FAGOR
Quick Change Tool Post
D1-11 4" Spindle Nose - Special Order
