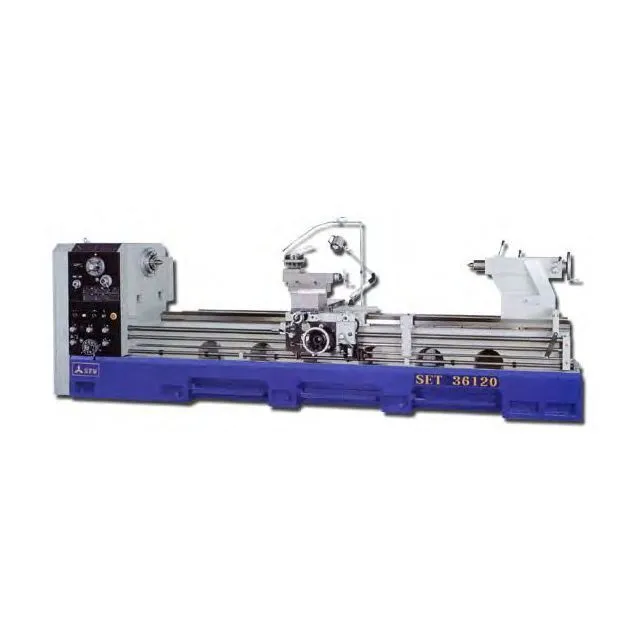

ACRA 32000SET Precision Gap Bed Engine Lathe has a 32" swing and 60" - 280" distance between centers. Made in Taiwan - High Quality!25 HP x 4P, 230/460V AC/3PH Spindle Drive Motor.Standard equipment includes: 20" 3-Jaw Chuck, Full Length Rear Splash Guard, Coolant System, Halogen Light, Full Length Splash Guard, Rapid Travel, Steady/Follow Rest and 4 Way Tool Holder.
| Lathe Type | Precision Engine | Precision Engine |
| Swing Over Bed | 32" | 812.8 mm |
| Distance Between Centers | 280" | 7,112 mm |
| Spindle Bore | 6.02" | 152.91 mm |
| Spindle Nose | A2-11 | A2-11 |
| Motor | 25 hp | 18.6 kW |
| Phase | 3 | 3 |
| Voltage | 230/460v | 230/460v |
| Dimensions | 355" x 63" x 75" | 355" x 63" x 75" |
| Weight | 22,000 lbs. | 22,000 lbs. |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
Machine Photo May Include Optional Equipment
Product image is only a representation, actual product appearance may differ slightly
OPTIONAL ITEMS - CALL FOR PRICE:
Steady Rest (20")
Steady Rest (24")
Face Plate
Taper Attachment
Installation Taper Attachment
Change 6" to 9" A2 15 Nose
Change 6" to 10" A2 15 Nose
Newall Digital Read-Out-60" DP700
Newall Digital Read-Out-60" NMS30
Newall Digital Read-Out-80" DP700
Newall Digital Read-Out-80" NMS300
Newall Digital Read-Out-120" DP700
Newall Digital Read-Out-120" NMS300
Newall Digital Read-Out-160”
Newall Digital Read-Out-200”
Newall Digital Read-Out-240”
Auto Rapid Threading Device
Acu-Rite Digital Read-Out-60" 80"/120" VU
Acu-Rite Digital Read-Out-80" 60"/80"/120" 200S
Sony
FAGOR
Quick Change Tool Post
D1-11 4" Spindle Nose - Special Order
