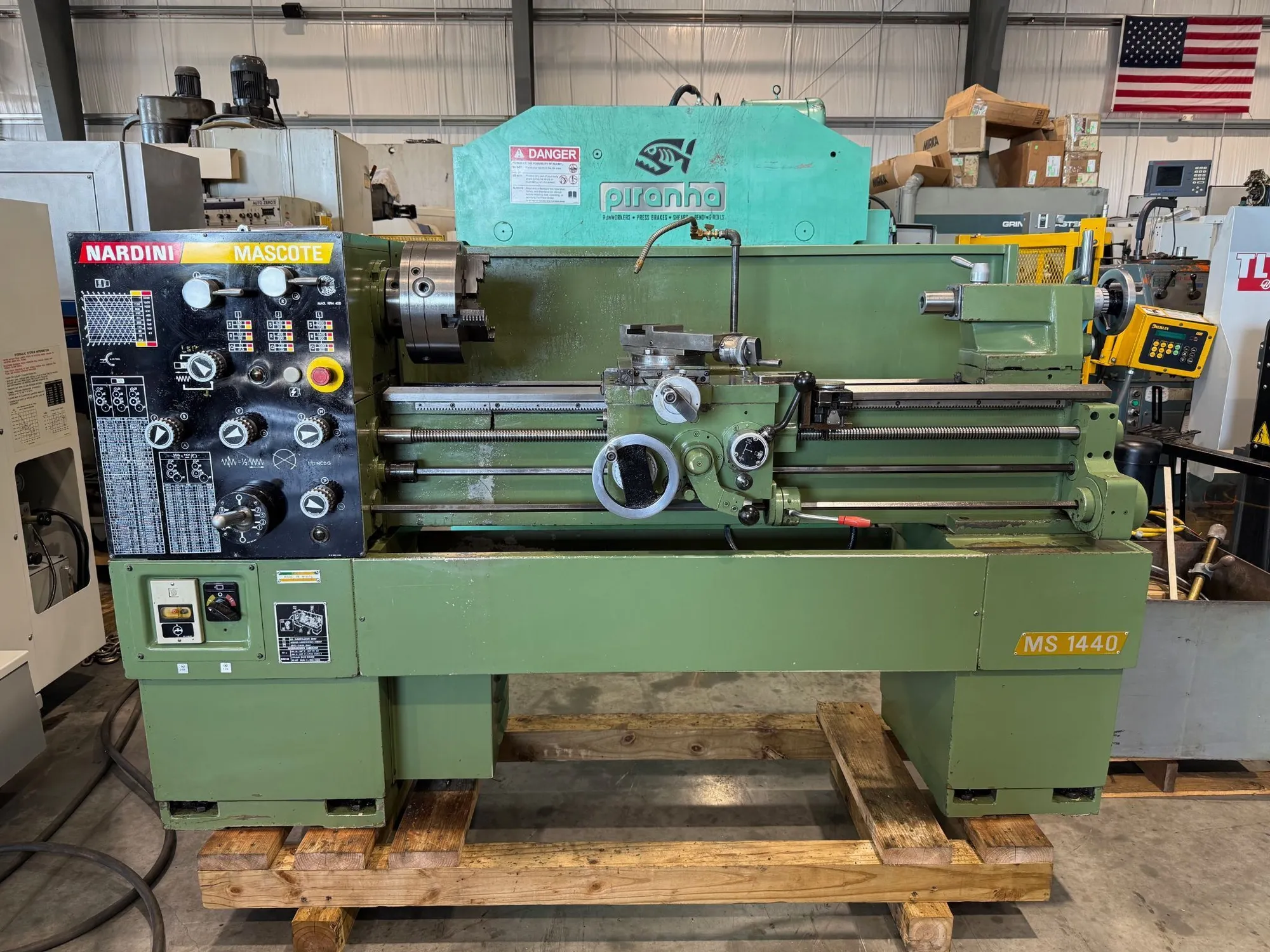

NARDINI MASCOTE MS-1440 14”/19.75” x 40”cc Gap Bed Lathe #7980
| Swing | 14" | 355.6 mm |
| Centers | 40" | 1,016 mm |
| Spindle Bore | 1.25" | 31.75 mm |
| Power | 5 hp | 3.7 kW |
| RPM | 32 RPM | 32 RPM |
| Swing Over Cross Slide | 7.875" | 200.02 mm |
| Dimensions | 80” x 35” W x 60’’ H | 80” x 35” W x 60’’ H |
| Weight | 2800 Lbs. | 2800 Lbs. |
NARDINI MASCOTE MS-1440 14”/19.75” x 40”cc Gap Bed Lathe #7980
Reference # 7980
Model # MS-1440E
Serial # D3JDU463
Swing over bed- 13-3/4”
Swing over cross slide- 7-7/8”
Swing through removable gap- 19-3/4”
Distance between centers- 40”
Spindle bore- 1-5/8”
Spindle nose, Camlock, size- D1-5
Headstock and tailstock spindle center taper- #3 Morse
(18) Spindle speeds, two ranges- 25 – 2,000 R.P.M.
(33) American Standard threads- 3 – 56 T.P.I.
(45) Metric threads- 0.40 – 7 mm
(64) Longitudinal feeds- 0.0015 to 0.552 I.P.R.
Tailstock travel- 3-1/8”
Tailstock taper- #3 Morse
Induction hardened and ground bed ways
Removable gap bed
Universal gear box providing a comprehensive range of inch and metric feeds and threads
Dual reading inch and metric dials on compound and cross slide
10” BISON “ SET TRU” three-jaw chuck
Threading dial
Self-contained coolant system with removable chip pan and full length rear splash guard
6.3/4 H.P. 3/60/220 volt two speed spindle drive motor and electrical controls
Machine is wired for 220 volt operation.
Machine weight- 2800 Lbs.
Machine dimensions- 80” x 35” W x 60’’ H
Machine location- F.O.B. Sarasota, Florida
