| X Axis | 30" | 762 mm |
| Y Axis | 16" | 406.4 mm |
| Z Axis | 16" | 406.4 mm |
| Power | 7.5 hp | 5.6 kW |
| RPM | 6,000 RPM | 6,000 RPM |
| # ATC | 10 | 10 |
| Taper | CAT-40 | CAT-40 |
| Table-W | 10.5" | 266.7 mm |
| Table-L | 47.8" | 1,214.1 mm |
| # Axis | 3 | 3 |
| Control | CNC (Haas CNC Control) | CNC (Haas CNC Control) |
| Dimensions | 96″ x 72″ x 103″ High Approx. | 96″ x 72″ x 103″ High Approx. |
| Weight | 3850 lbs | 3850 lbs |
*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
Features:

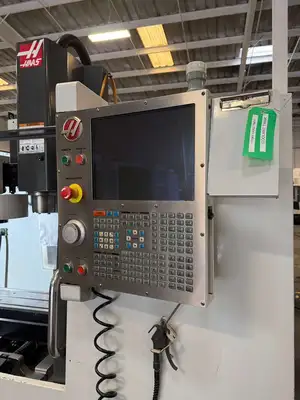

Haas CNC Control
7.5 HP High Torque Spindle

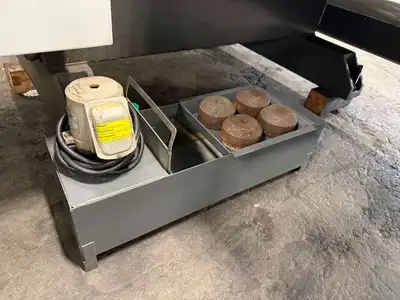

Coolant System
Travel:
X-Axis: 30″
Y-Axis: 16″
Z-Axis: 16″
Rapid Traverse Rates: 400 Inch Per Minute
Cutting Feed Rates: 400 Inch Per Minute
Spindle Nose to Table (Min.- Max.): 4″ – 20″
Table:
Length: 47.8″
Width: 10.5″
Number of Std T-Slots: 3
T-Slot Width: 5/8″
Max Weight on Table: 350 lbs
Spindle:
Taper Size: CAT-40
Speed Range: 6000 RPM
Spindle Power: 7.5 HP
Automatic Tool Changer:
Capacity: 10 Station
Max Tool Diameter: 3.5″
Max Tool Weight: 12 lbs
Tool Change Time: 5.7 Sec.
General:
Air Required: 100 psi, 4 scfm

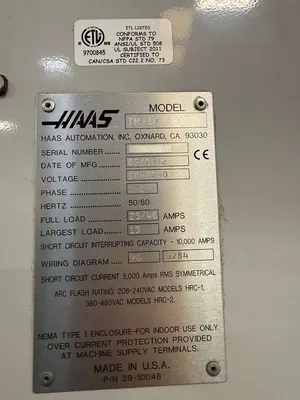

Power: 220v / 66FLA / 3-Phase
Overall Dimensions: 96″ x 72″ x 103″ High Approx.
Weight: 3850 lbs Approx.
6000 RPM Spindle
10 Station Automatic Tool Changer
CAT-40 Taper Spindle
Levelling Pads
