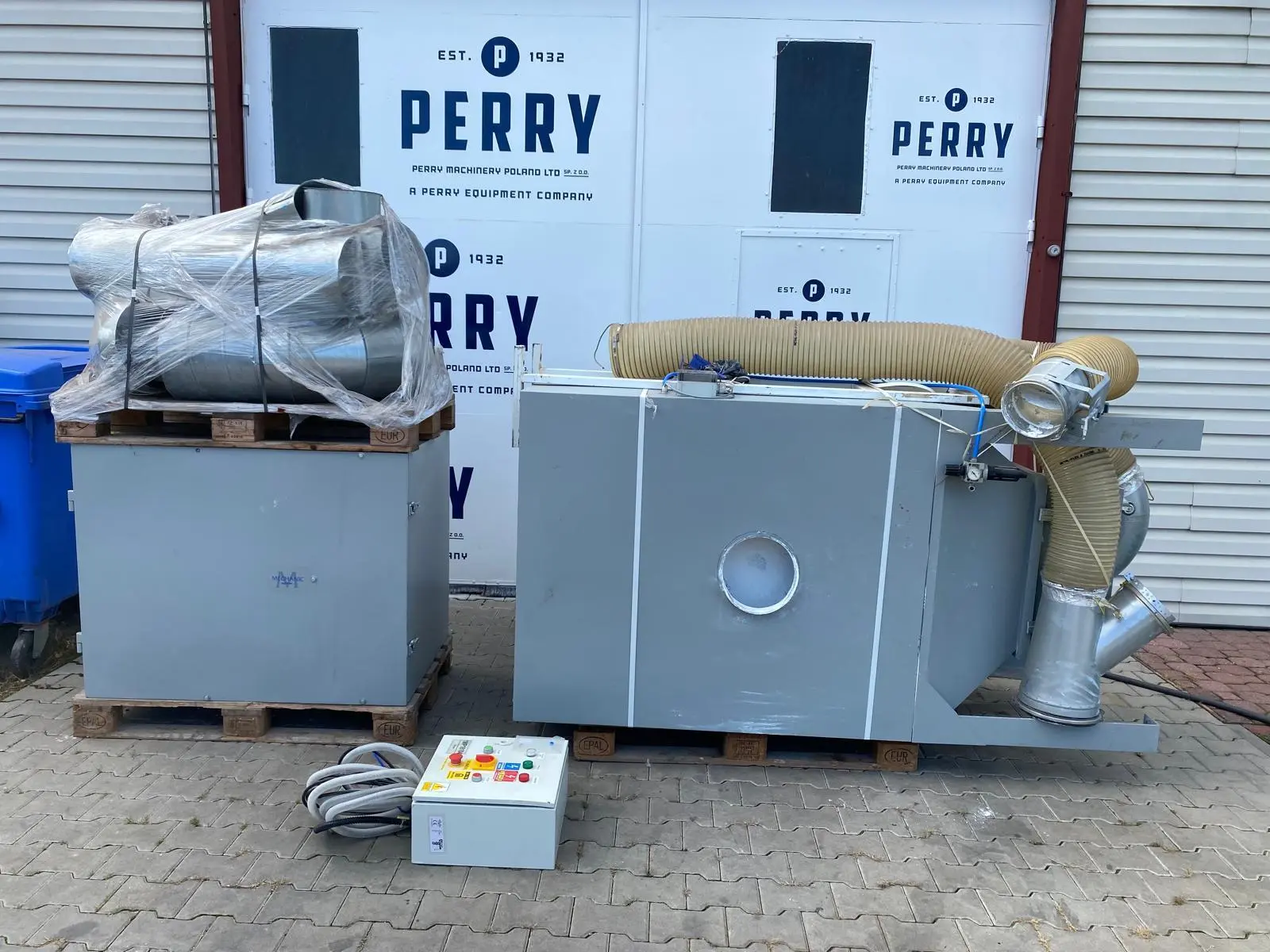

USED 2009 MECHANIC SYSTEM GM2VW

Used self-cleaning filter system for dry dust manufactured by Mechanic System Sp. z o.o. (Poland) type GM2VW equipped with cartridge filter with a filtration area of 42 m2. Maximum air flow capacity up to 3000 m3/hour. Operating pressure ranging from 0 to 5 kPa. Operating temperature range from -10 ºC to +60 ºC. Filtration unit is made of carbon steel and consists of a filtration chamber with installed filters, a dust container mounted below the chamber, and an exhaust fan mounted above the chamber in a sound-proof housing. Fan is directly driven by a 4 kW, 2905 rpm, 50 Hz electric motor. Filtration system is also equipped with a pulse-type pressure air system and electrical control panel. It also includes connection channels.
