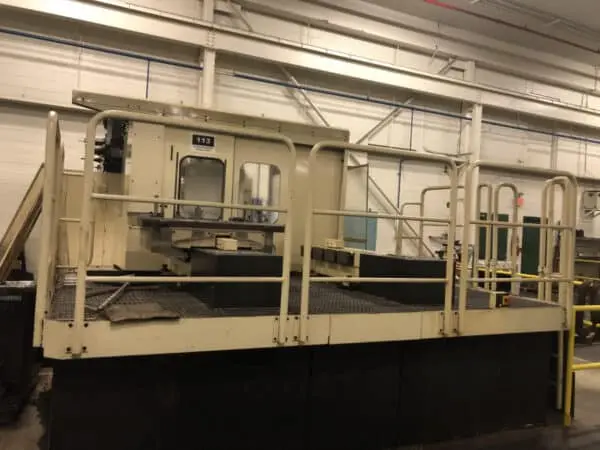

TOSHIBA BTD-200QF HBM – 1999

TOSHIBA BTD-200QF HORIZONTAL BORING MILL WITH (2) PALLETS
ATC 40 TOOL CHANGER

SPINDLE DIAMETER mm(in) 200mm(7.87)

SPINDLE TRAVEL mm(in) 400mm (15.7)

SPINDLE TAPER CAT 50

SPINDLE SPEEDS, INFINITELY VARIABLE RPM 3000

X-AXIS TRAVEL (table cross travel) mm(in) 1000 (39.4)

Y-AXIS TRAVEL (headstock vertical travel) mm(in) 1000 (39.4)

Z-AXIS TRAVEL (table longitudinal travel) mm(in) 700 (27.6)

W-AXIS TRAVEL (spindle extension) mm(in) 400 (15.7)

MAIN MOTOR HP (20/15) AC

ROTARY TABLE SIZE mm(in) 1000 x 1000 (39.4 x 39.4) PALLETS

MAXIMUM TABLE LOAD LBS 6000

TABLE INDEXING ANGLE every 0.001 degrees

MARPOSS PROBING SYSTEM

CONTROL TOSNUC 888

COOLANT THRU SPINDLE
