| Max Width | 102" | 2,590.8 mm |
| Max Thickness | 1" | 25.4 mm |

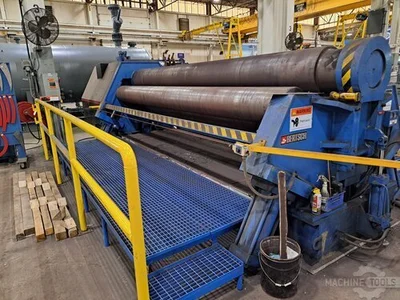

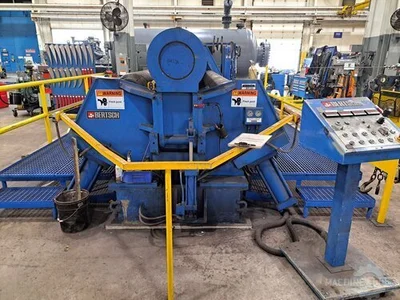

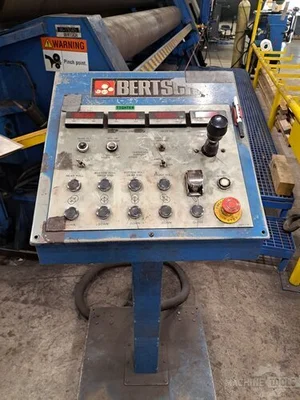

3/4” X 15’ Plate Rolling Machine with Digital Readout on Control Pedestal, Safety Line Around Machine and Hydraulic Drop End for Part RemovalGENERAL SPECIFICATIONS Rolling Capacity Nominal Thickness: .75″ x 15′Rolling Capacity Maximum Thickness: .865″ x 15′Rolling Capacity @ 70% Length: 1.024″ x 7′Rolling Capacity @ 30% Length: 1.563″ x 3′Maximum Rolling Length: 180″Top Roll Diameter: 18″Bottom Roll Diameter: 17″Motor, Main: 30 HPElectrics: 460/3/60Approximate Machine Dimensions: 264″ x 87″Approximate Machine Height: 96″Approximate Machine Weight: 56,000 LBSINCLUDES: Digital Readout on Control Pedestal, Safety Line Around Machine and Hydraulic Drop End for Part Removal.
