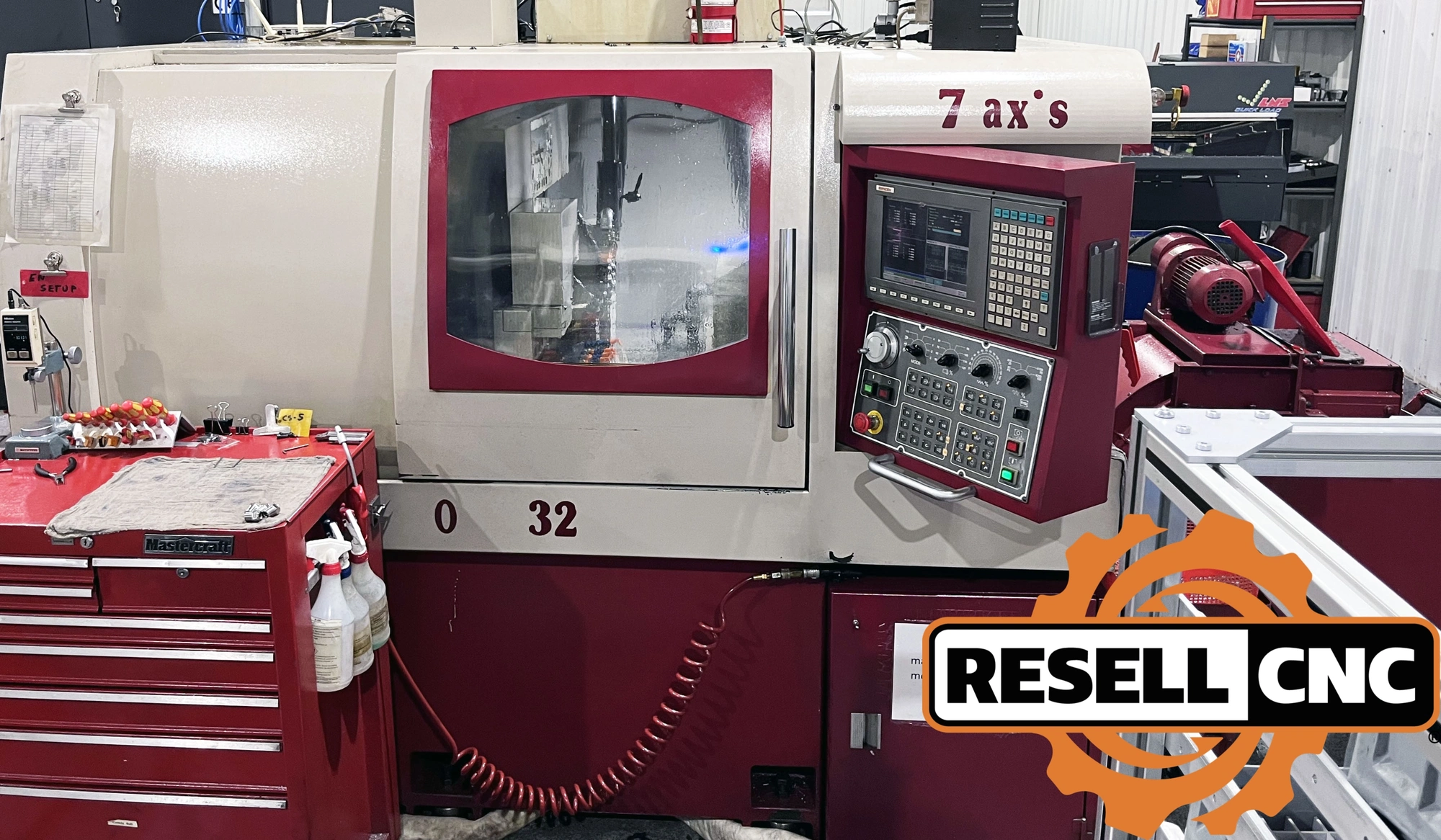

USED 2006 Ganesh Cyclone-32CS

X2nd Chuck Description: A32 Collet Chuck

X2nd Turret Live Tooling: false
X4th Axis: false
X5th Axis: false
Additional Machine Specs: Y-Axis Travel: 19.29”

Minimum Input Unit: 40 Millionths

OD Turning Tool Positions: 6 OD Tools

ID Turning Tool Positions: 5 ID Tools

OD Turning Tool size ½”

ID Turning Tool Bore Size 25 mm

Spindle Center Height 40”
Live Tooling: All live tools are gear driven

Cross slide live tools: 4-ER-20 cross slide live tools, 4,000 rpm, 2.0 HP (1.5kw)

Front slide live tools: 3-ER-20 front slide live tools, 4,000 rpm, 1.0 HP (0.75kw)

Subspindle axial live tools: 4-ER-20 axial live tools, 4,000 rpm, 1.0 HP (0.75kw)

Bar Capacity: 1.25
Barfeeder Make Model: LNS Hydrobar Express 332 Barfeed
B Axis: false
C Axis: false
Chuck Description: A32 Collet Chuck

Control Make Model: Mitsubishi Syntec CNC Control
Distance Between Centers: 12.0
Electrical: 220 VAC
Live Milling Thru Spindle Coolant: false
Live Tooling Milling: false
Max Cutting Turning Diameter: 1.25
Max Swing Over Bed: 1.25
Programmable Tailstock: false
Rapid Traverse: 1181
Second Bar Capacity: 1.25
Second Spindle Motor: 5
Second Spindle Speed: 3000
Single Turret: false
Single Turret Live Tooling: false
Spindle Bore: 1.456
Spindle Motor: 10
Spindle Speed: 6000.0
Sub Spindle: true
Tailstock: false
Tool Positions: 18.0
Turret Max Rpm: 4000
Turret Options: ER-20 Collet

Twin Turret: false
X Travel: 7.28
Y Axis: false
Z Travel: 6.5
