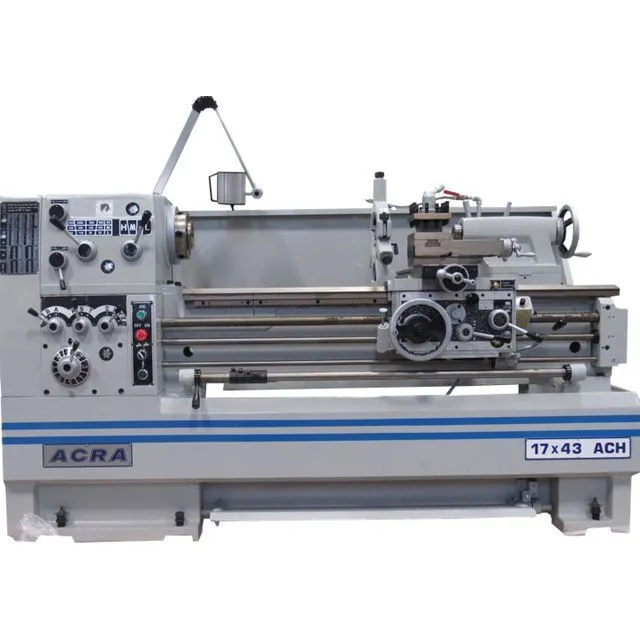

ACRA ACH Precision Gap Bed Engine Lathe have a 17" swing with 43" or 67" distance between centers. Has 7.5 HP, 230/460V AC/3PH Spindle Drive Motor. Standard equipment includes: 10" 3-Jaw Chuck, 12" 4-Jaw Chuck, Steady Rest, Full Length Splash Guard, Coolant System, 4 Way Tool Holder and Halogen Work Lamp.
| Lathe Type | Engine | Engine |
| Swing Over Bed | 17" | 431.8 mm |
| Distance Between Centers | 67" | 1,701.8 mm |
| Spindle Bore | 2.25" | 57.15 mm |
| Spindle Nose | D1-6 | D1-6 |
| Motor | 7.5 hp | 5.6 kW |
| Phase | 3 | 3 |
| Voltage | 230/460v | 230/460v |
| Dimensions | 115" x 42" x 54" | 115" x 42" x 54" |
| Weight | 4,750 lbs. | 4,750 lbs. |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
Machine Photo May Include Optional Equipment
Product image is only a representation, actual product appearance may differ slightly
OPTIONAL ITEMS - CALL FOR PRICE:
Steady Rest 6"
Steady Rest 8"
Follow Rest
Face Plate
Micro Bed Stop
Taper Attachment
Taper Attachment Installment
Lever Type 5C Collet Closer JFK D1-8
Import Collet Closer (Taiwan)
Newall Digital Read-Out 10" x 40" DP700
Newall Digital Read-Out 10" x 40" NMS300
Newall Digital Read-Out 10" x 62" DP700
Newall Digital Read-Out 10" x 62" NMS300
Acu-Rite Digital Read-Out 10" x 43" 203
Acu-Rite Digital Read-Out 10" x 67" 203
Acu-Rite Digital Read-Out 10" x 43" 303
Acu-Rite Digital Read-Out 10" x 67" 303
Sony or Fagor or Mitutoyo Digital Read-Out
Aloris Tool Post Set (CXA) 5pc
D.R.O. Installation
Import Quick Change Tool Holder
Chuck Guard
Live Center MT 4
