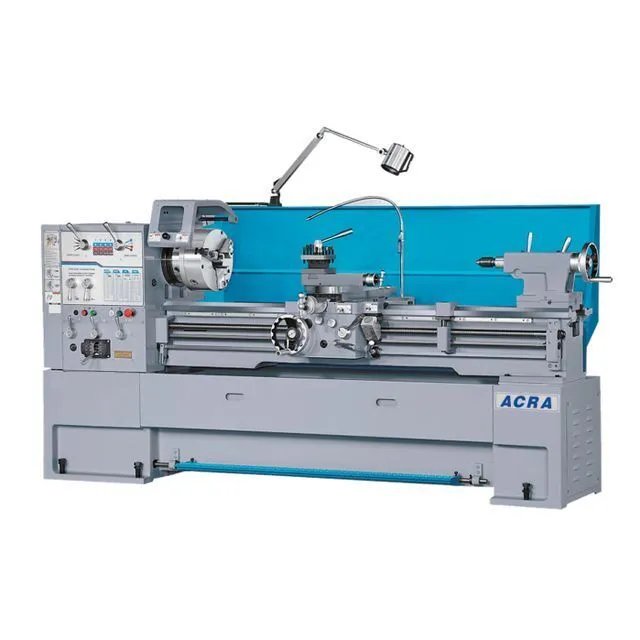

ACRA TVS-2 Variable Speed Engine Lathe w/2-1/2" Bore. Main Spindle Motor 17" std. 7-1/2HP, 230V AC ~ 1 PH / 3 PH, 21" std. 10 HP, 230V AC ~ 1 PH / 3 PH. Made in Taiwan.
| Lathe Type | Variable Speed | Variable Speed |
| Swing Over Bed | 21" | 533.4 mm |
| Distance Between Centers | 60" | 1,524 mm |
| Spindle Bore | 2.5" | 63.5 mm |
| Spindle Nose | D1-6 | D1-6 |
| Motor | 10 hp | 7.5 kW |
| Phase | 1 | 1 |
| Voltage | 230v | 230v |
| Dimensions | 114.2 x 45.5 x 68.7 in. | 114.2 x 45.5 x 68.7 in. |
| Weight | 5,000 lbs. | 5,000 lbs. |
* 3-phase available
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
Machine Photo May Include Optional Equipment
Product image is only a representation, actual product appearance may differ slightly
OPTIONAL ITEMS - CALL FOR PRICE:
Face Plate
Micro Bed Stop
Taper Attachment
Taper Attachment Installment
Lever Type 5C Collet Closer JFK D1-6
Import Collet Closer (Taiwan)
Newall Digital Read-Out 10" x 40" DP700
Newall Digital Read-Out 10" x 40" NMS300
Newall Digital Read-Out 10" x 60" DP700
Newall Digital Read-Out 10" x 60" NMS300
Newall Digital Read-Out 10" x 86" DP700
Newall Digital Read-Out 10" x 86" NMS300
Acu-Rite Digital Read-Out 10" x 40" 203
Acu-Rite Digital Read-Out 10" x 60" 203
Acu-Rite Digital Read-Out 10" x 86" 203
Acu-Rite Digital Read-Out 10" x 40" 303
Acu-Rite Digital Read-Out 10" x 60" 303
Acu-Rite Digital Read-Out 10" x 86" 303
Aloris Tool Post Set (CXA) 5pc
D.R.O. Installation
Import Quick Change Tool Holder
Chuck Guard
Live Center MT 4
TVS 460V
