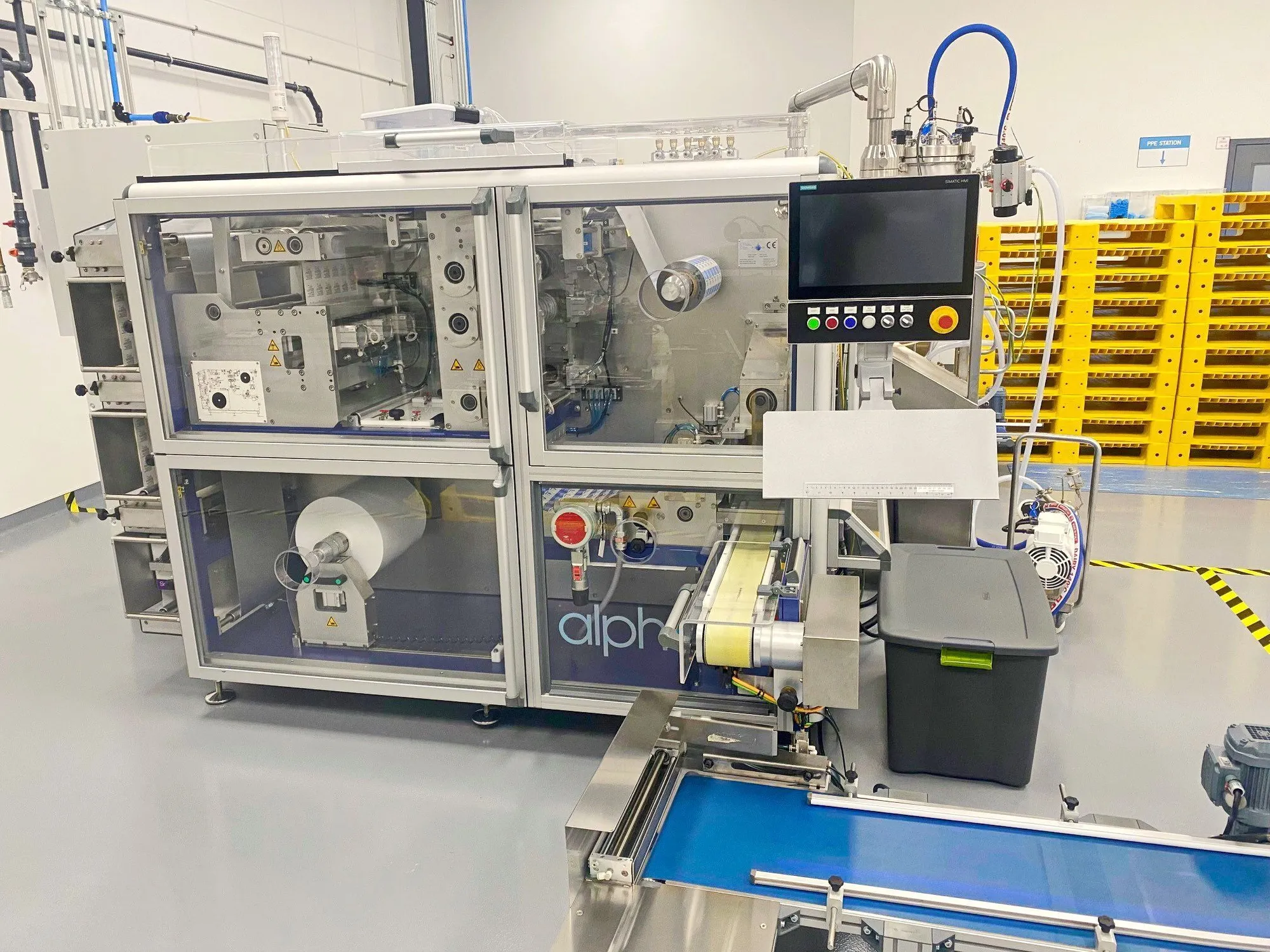

2020 V-Shapes Model Alpha Automatic Liquid Vertical Form Fill And Seal Machine, Volumetric Filling System, Direct Filling System, Brushless Motors, Touchscreen Control Panel, Welding Station For Vertical & Horizontal Sealing, Siemens S7-1500 PLC Control
| Min Packet Width | 1.57" | 39.878 mm |
| Max Packet Width | 3.93" | 99.822 mm |
| Min Packet Height | 1.96" | 49.784 mm |
| Max Packet Height | 3.93" | 99.822 mm |
| Min Fill Volume | 0.007 oz | 0.007 oz |
| Max Fill Volume | 1.01 oz | 1.01 oz |
| Production Rate | 300 units/min. | 300 units/min. |
| Film Reel Consumption | 196 in/min. | 196 in/min. |
| Max Mechanical Tolerance | ±0.0393" | ±0.0393" |
| Dimensions | 827" X 512" X 66.9" | 827" X 512" X 66.9" |
| Weight | 6,612 lb | 6,612 lb |
Siemens S7-1500 PLC control
Volumetric filling system
Direct filling system
Brushless motors
15" Touchscreen control panel
Welding station for vertical & horizontal sealing
Expandable pneumatic reel shafts
Abnormal air pressure sensor
Synchronization kit
Conformity w/ CE/FDA regulation
