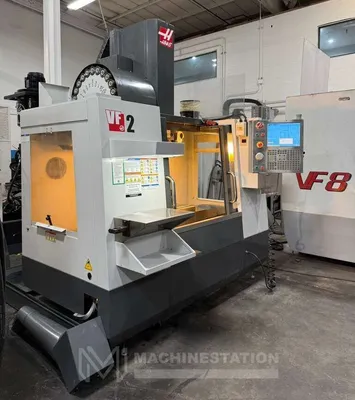

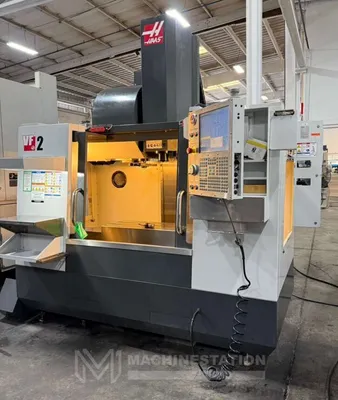

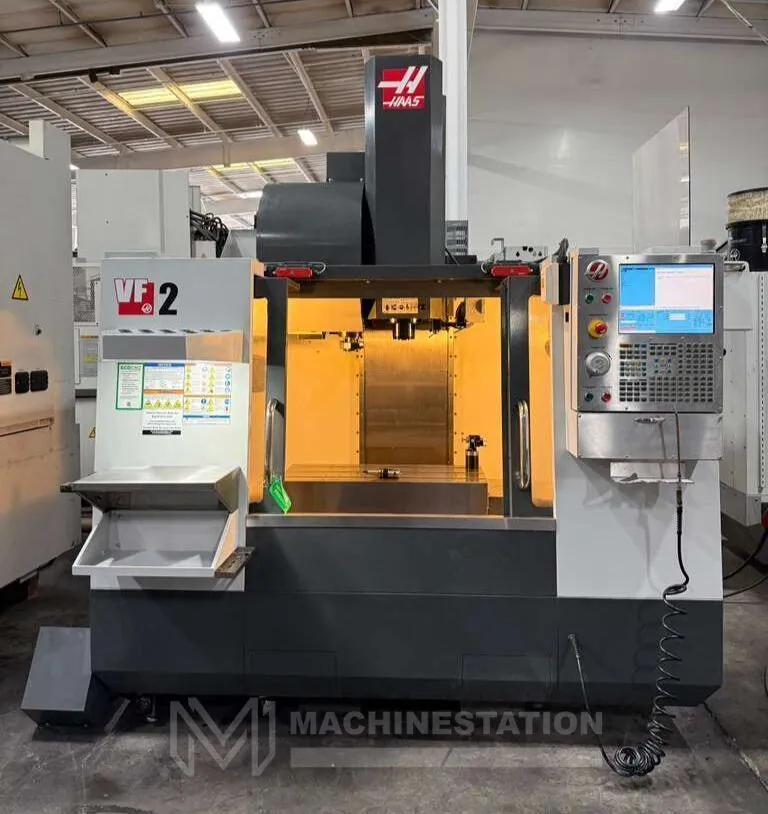

USED 2011 HAAS VF-2

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Equipment is sold AS-IS, WHERE-IS. All sales are final.

Replacement Cost Over $123,000 with Similar Options
All Original Paint, One Owner Machine

Features:

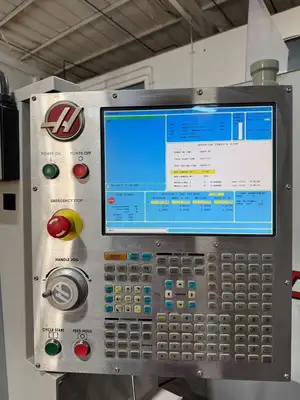

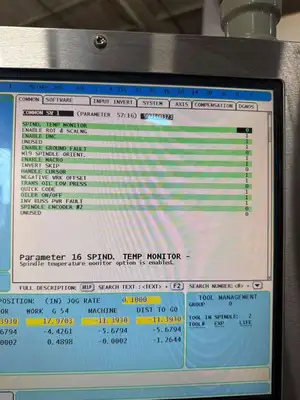

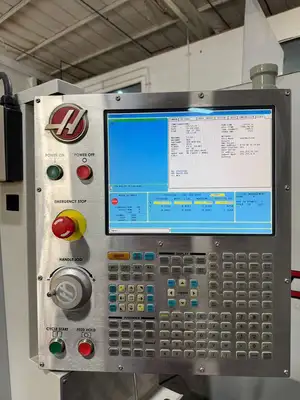

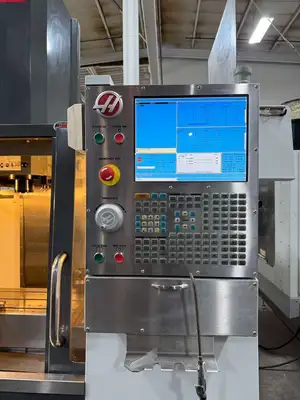

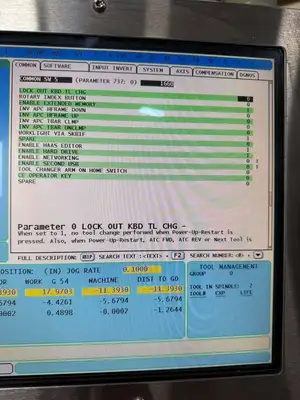

Haas CNC Control

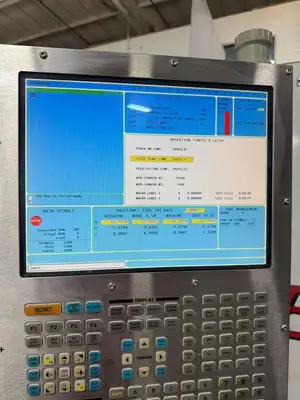

18,116 Hours Cutting Time
20 HP High Torque Spindle
Visual Part Programming System
Quick Code
Spindle Orientation
User-Definable Macros
Coordinate Rotation and Scaling
DNC Enabled
USB Drive
MPG Control
Enable Extended Memory
Work Light
Enable Haas Editor
Enable Hard Drive
Negative Work Offset
Handle Cursor
Oiler on/off
Rigid Tapping
Spindle Load Monitor
Coolant System

Travels:
X-Axis: 30″
Y-Axis: 20″
Z-Axis: 20″
Rapid Traverse Rates: 1000 Inch Per Minute
Cutting Feed Rates: 650 Inch Per Minute
Spindle Nose to Table (Min.- Max.): 4″ – 24″

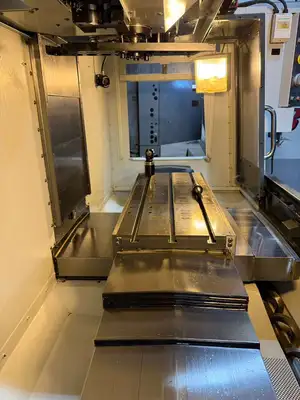

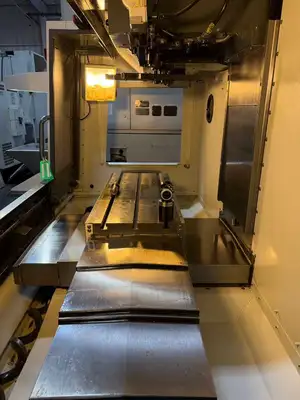

Table:
Length: 36.0″
Width: 18.0″
Number of Std T-Slots: 3
T-Slot Width: 5/8″
Max Weight on Table: 3000 lbs

Spindle:
Taper Size: BT-30

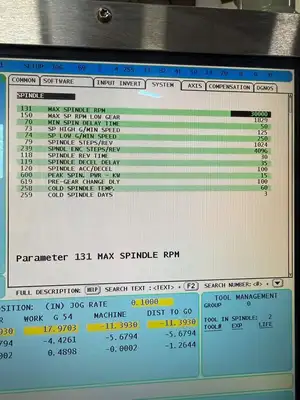

Speed Range: 30,000 RPM
Spindle Power: 20 HP

Automatic Tool Changer:
Capacity: 24 Tools
Max Tool Weight: 5.5 lbs
Max Tool Dia: 2.0″
Max Tool Length: 7.0″
Tool Changing Time: 4.2 Seconds

General:
Air Required: 100 psi 4 scfm

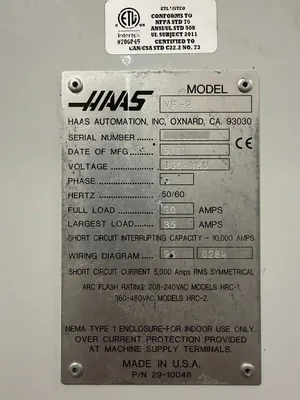

Power: 360v – 480v / 66FLA / 3-Phase
Overall Dimensions: 106″ x 101″ x 101″ High
Weight: 7800 lbs Approx..

4th-Axis Drive and Wiring (Upgraded $3,595 value Included)
30,000 RPM High Speed Spindle (Upgraded $19,995 value Included)
BT-30 Taper Spindle

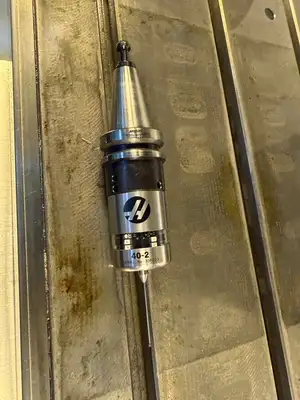

WIPS-R Renishaw Probing System (Probe Included) (Upgraded $6,395 value Included)
Probe Riser Block (Upgraded $695 value Included)
Schneeberger Linear Scales X,Y & Z Axis (Upgraded $15,000 Approx. value Included)

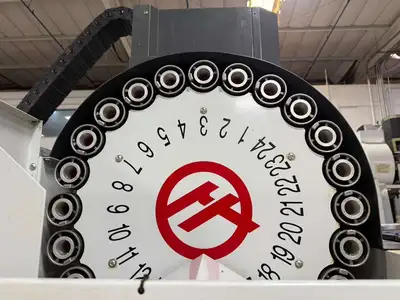

24 Station Automatic Tool Changer

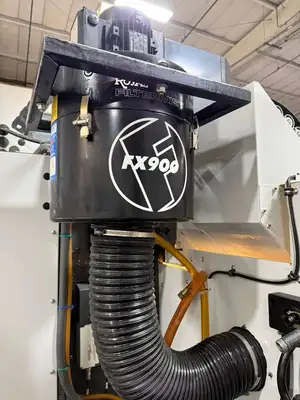

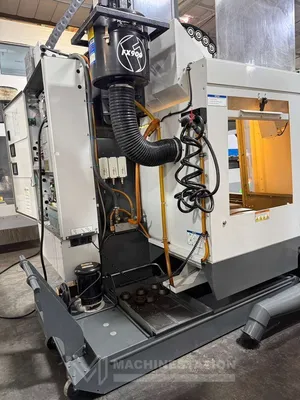

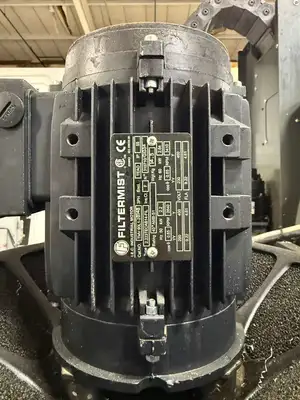

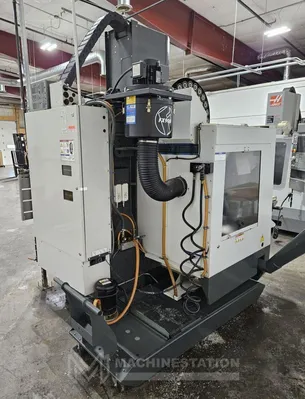

Royal FX-900 Mist Collector Unit (Upgraded $4,695 value Included)
Programmable Coolant Nozzle (Upgraded $2,395 value Included)

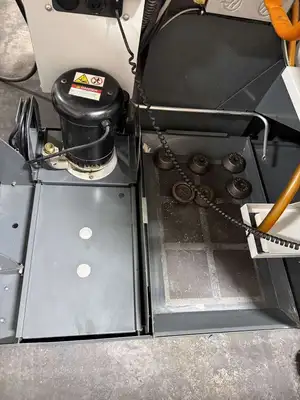

Chip Auger (Upgraded $4,095 value Included)
