ACRA TE-3 Precision High Speed Engine Lathe Machine has a 3-1/8" Large Bore. High Quality - Made in Taiwan. Main Spindle Motor 21" std. 12.5 HP, 230/460V AC ~ 3 PH.
| Lathe Type | High Speed | High Speed |
| Swing Over Bed | 21.34" | 542.04 mm |
| Distance Between Centers | 83.46" | 2,119.9 mm |
| Spindle Bore | 3.149" | 79.985 mm |
| Spindle Nose | D1-8 | D1-8 |
| Number Of Spindle Speeds | 12 | 12 |
| Range Of Speeds | 26-1500rpm | 26-1500rpm |
| Motor | 12.5 hp | 9.3 kW |
| Dimensions | 145.67 x 45.5 x 72.8 in. | 145.67 x 45.5 x 72.8 in. |
| Weight | 5,952 lbs. | 5,952 lbs. |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts

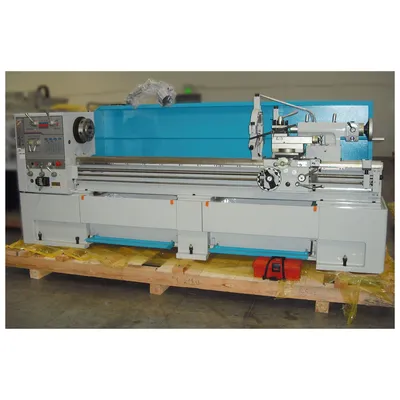

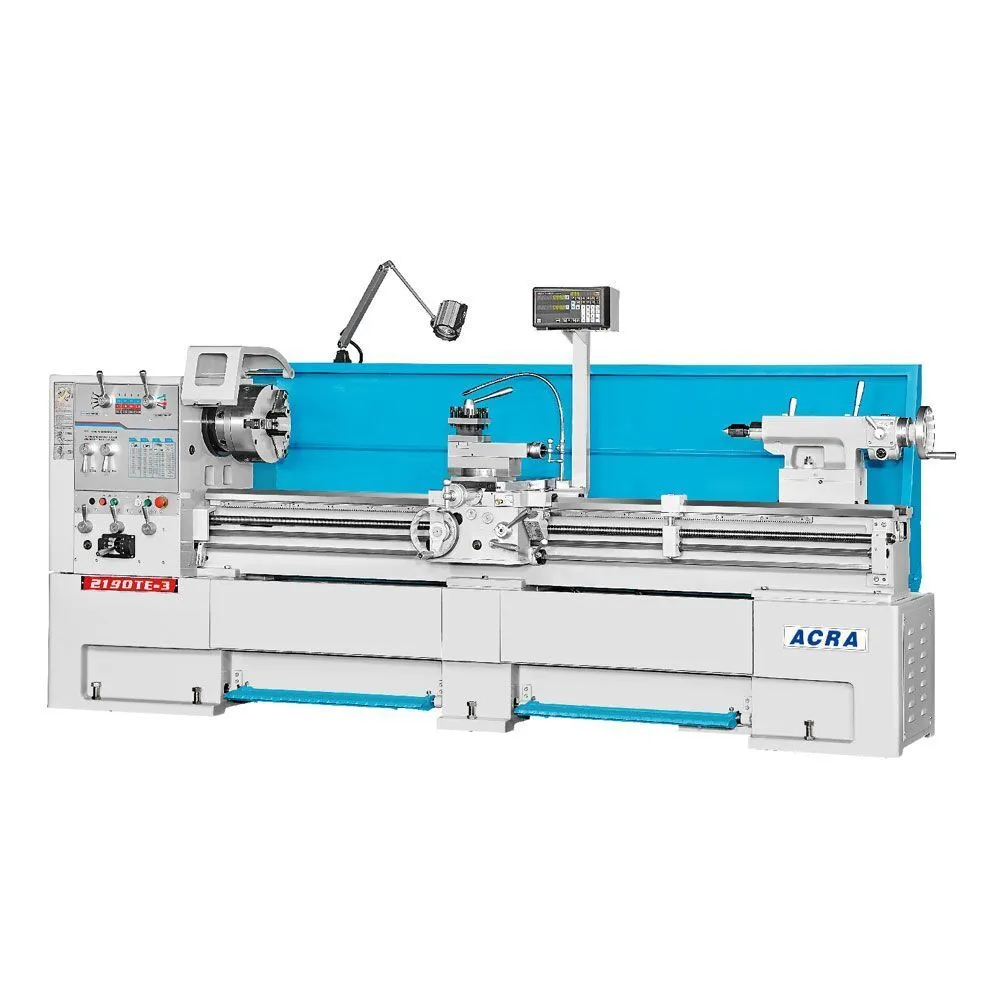

Machine Photo May Include Optional Equipment
Product image is only a representation, actual product appearance may differ slightly
OPTIONAL ITEMS:
Newall Digital Read-Out- 10" x 86" NMS300 …..………. $ 2,500.00 Installed
Micro Bed Stop…................................................... $ 410.00
Taper Attachment................................................... $ 2,800.00
Import Quick Change Tool Holder Set 5 Pieces ........................... $ 575.00
Live Center MT 4 ............................. $ 150.00
5C collet closer attachment..... $CALL
5C collets..... $CALL
Drill chuck and arbor..... $CALL
Driving plate with dog..... $CALL
Taper turning attachment..... $CALL
Protection cover on lead screw for CE..... $CALL
Chuck guard..... $CALL
Faceplate 14"..... $CALL
Rotating center MT.4...... $CALL
Quick change tool post ..... $CALL
Carriage micro stop set ..... $CALL
Digital read out system ..... $CALL
2 speed tailstock ..... $CALL
