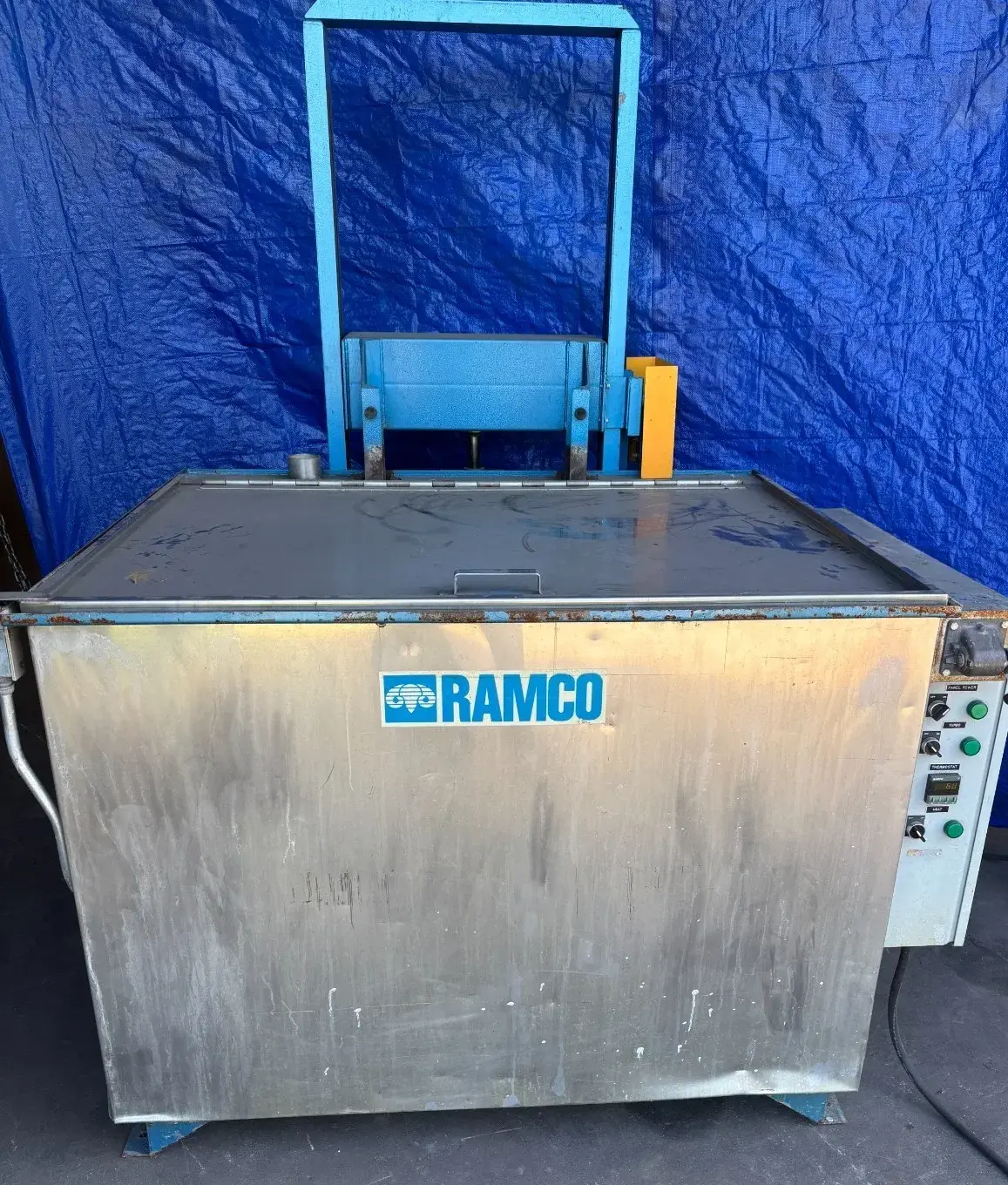

USED RAMCO EQUIPMENT CM48EMS

CM48 – Specifications (Washer Model)
Working Zone
• Length (A): 45"
• Width (B): 31"
• Depth (C) without rollers: 20"
Liquid Capacity
• 255 gallons
Overall Machine (with control panel)
• Length (K): 60"
• Width (L): 52"
• Height (M): 80"
• Load height (J): 40.5"
Tank Interior Dimensions
• Length (G): 48"
• Width (H): 42"
• Depth (N): 35"
Recommended Basket Size
• Length (D): 44"
• Width (E): 30"
• Depth (F): 12"

CM48 – Engineering Data
Construction
• Wall thickness: 10 gauge
• Rear wall thickness: 3/16"
Heating (Electric)
• kW/hr: 18
• Number of heaters: 2
• Amps (240V / 3PH / 60Hz): 44
• Amps (480V / 3PH / 60Hz): 27
Air Requirements
• Pressure: 80–125 PSI
• Standard load rating: 500 lbs
• Heavy-duty load rating: 1000 lbs
Valves & Cylinders
• Inlet valve (standard): 1/4"
• Air cylinder (standard): 4"
• Inlet valve (heavy-duty): 1/2"
• Air cylinder (heavy-duty): 6"
Agitation / Oscillation
• Strokes per minute: 20–240
• Short stroke range: 1"–8"
• Long stroke range: 10"–26"
Plumbing
• Drain: 1½"
• Overflow: 2"
• Fill: 3/4"
Notes:
• Strokes are infinitely variable.
• Dimensions exclude optional equipment.
