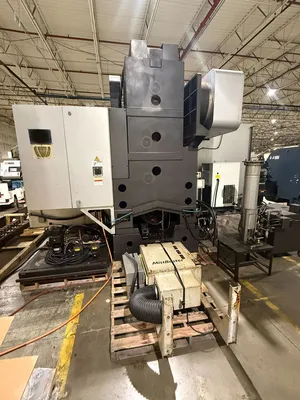

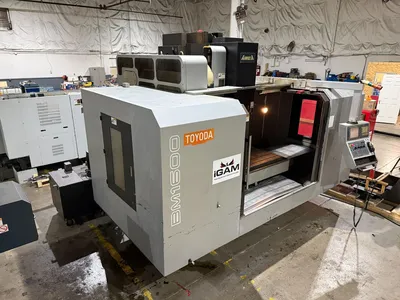

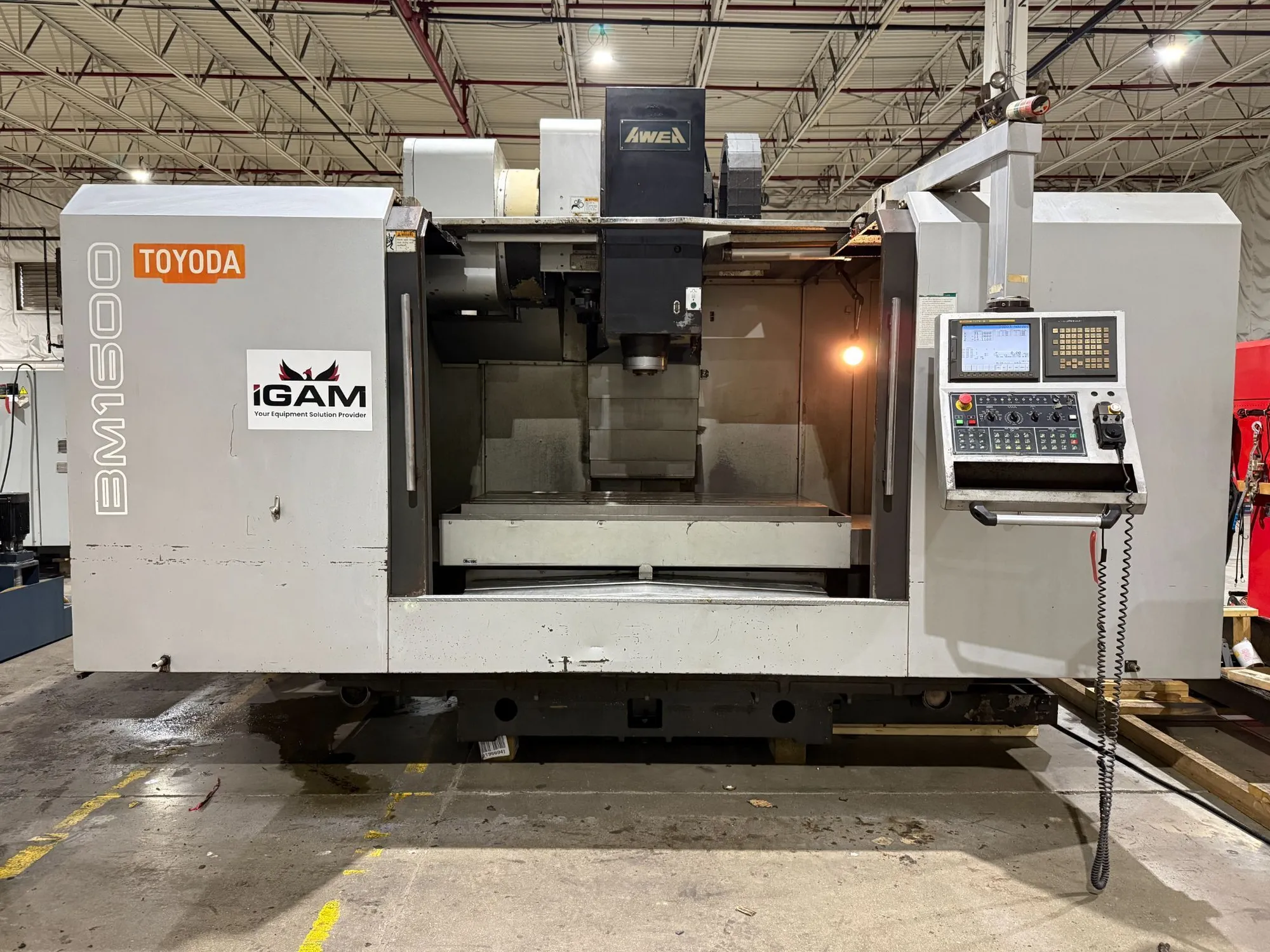

2006 TOYODA BM-1600 Vertical Machining Center

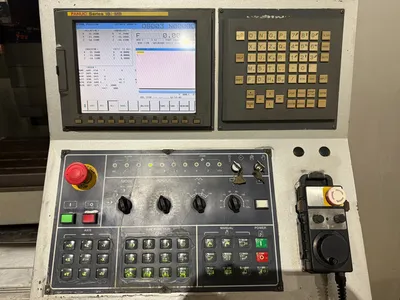

Fanuc 18i-MB Control

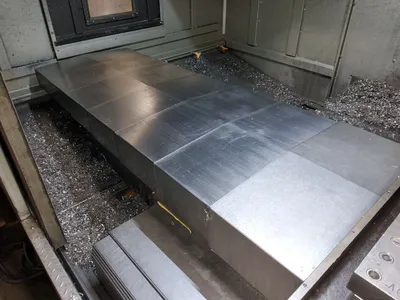

Box-way construction
6000 RPM Geared Head
Through Spindle Coolant

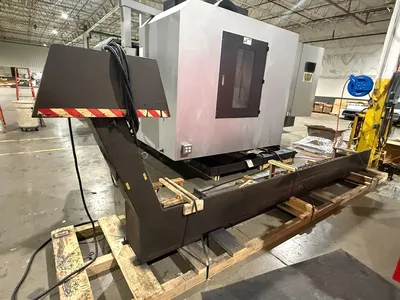

Chip Conveyor

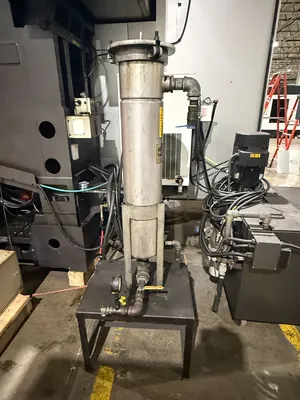

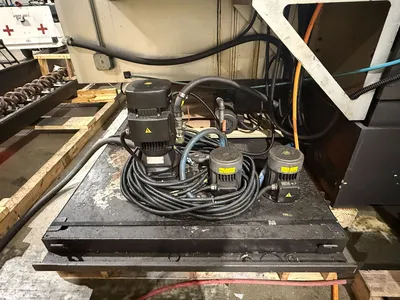

Coolant Tank with pump
Machine Voltage: 208VAC
Machine KVA: 40
| CNC Control | Fanuc 18i-MB | Fanuc 18i-MB |
| # Axis | 3 | 3 |

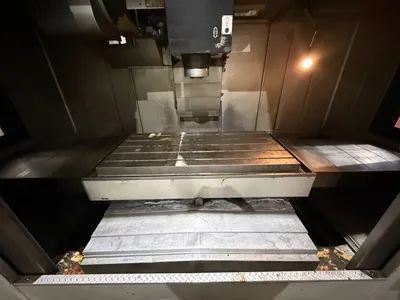

| Table-L | 66.75" | 1,695.4 mm |
| Table-W | 31.5" | 800.1 mm |
| Max Table Load | 4400 | 4400 |
| X-axis Travel | 63" | 1,600.2 mm |
| Y-axis Travel | 31.5" | 800.1 mm |
| Z-axis Travel | 31.5" | 800.1 mm |
| Rapid Traverse Rate (X/Y/Z) | XY 590, Z 472 ipm | XY 590, Z 472 ipm |
| Spindle Taper | CAT 50 | CAT 50 |
| Spindle Speed | 6,000 RPM | 6,000 RPM |
| Main Motor | 20 hp | 14.9 kW |
| # ATC | 30 | 30 |
| Coolant Thru Spindle | Yes | Yes |
| Machine Weight | 35500 | 35500 |
| Control | CNC (Fanuc 18i-MB) | CNC (Fanuc 18i-MB) |
| Weight | 35500 lbs | 35500 lbs |
